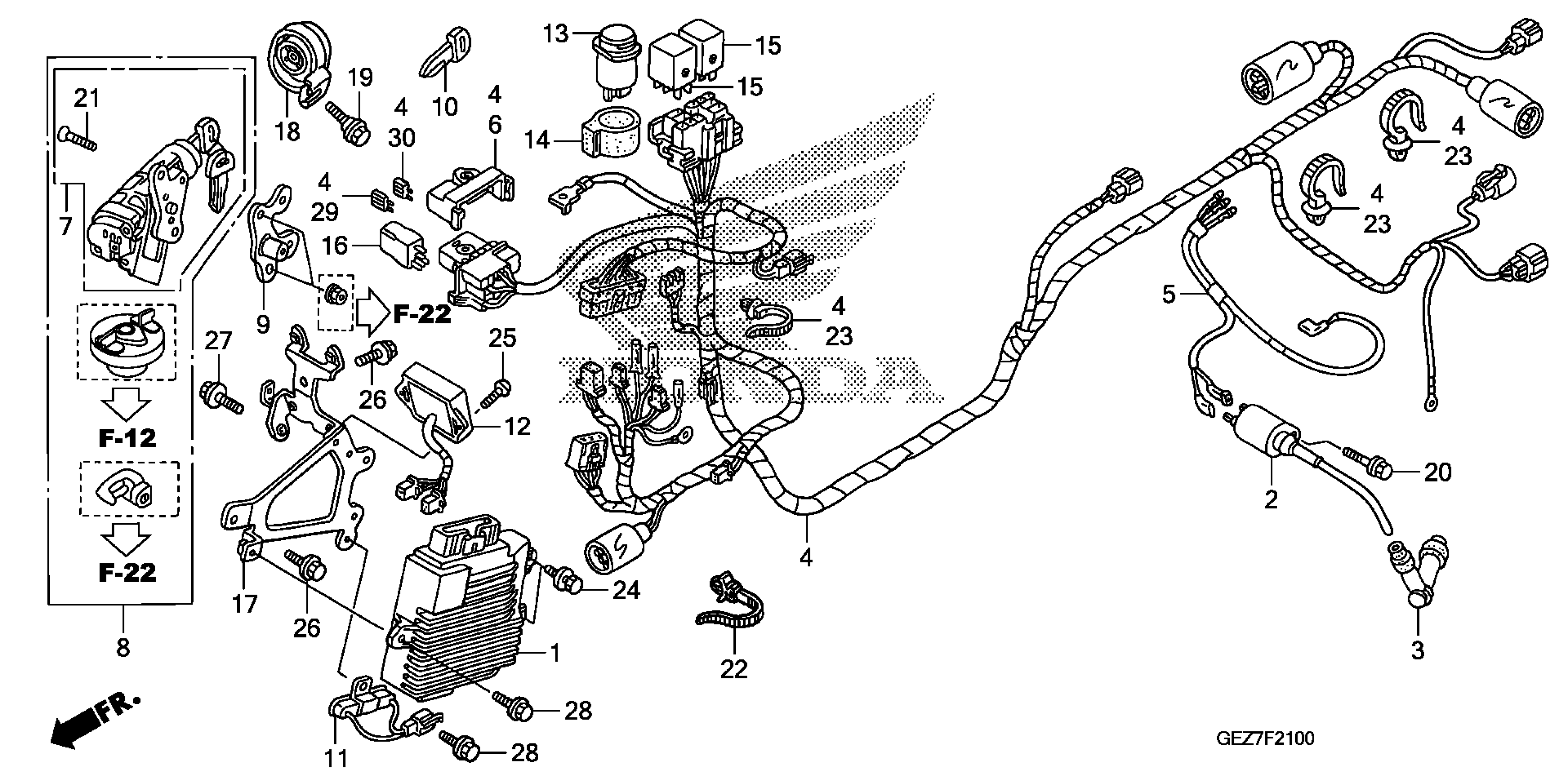

Honda NPS50AC (12) RUCKUS, JPN, VIN# JH2AF581-CK000001 WIRE HARNESS Diagram

#

Description
Price

1

CONTROL UNIT, ENGINE

30400-GEZ-612

$583.01

2

COIL, IGNITION

30510-GET-003

$55.01

3

CAP NOISE SUPPRESSOR This part replaces 30700-GN5-901.

30700-GN5-902

$17.15

3

CAP ASSY., NOISE SUPPRESSOR

30700-KE2-942

$16.41

4

WIRE HARNESS

32100-GEZ-610

$233.34

5

SUB-WIRE, IGNITION

32101-GEZ-610

$12.44

6

COVER, BATTERY BOX

32111-GEZ-671

$3.65

7

SWITCH ASSY. SET, COMBINATION & LOCK

35012-GEZ-691

$77.15

8

KEY & SCREW SET This part replaces 35014-GEZ-611.

35014-GEZ-612

$181.49

9

GUIDE, COMBINATION & LOCK

35105-GET-000

$7.36

10

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-GET-007

$9.40

10

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-GET-007

$9.40

11

RESISTOR

35400-GCK-030

$15.25

12

DRIVE UNIT, LED

37565-GEZ-671

$40.47

13

RELAY, AUDIBLE PILOT & TURN SIGNAL

38301-GET-671

$40.34

14

SUSPENSION, TURN SIGNAL RELAY

38306-292-000

$3.59

15

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$9.88

16

RELAY, POWER (MICRO ISO 5P)

38502-MCS-G01

$9.52

17

STAY, PILOT BOX

64303-GEZ-010

$26.42

18

CAP, SWITCH *NH1* (BLACK)

81136-GEZ-670ZA

$11.86

19

BOLT, FLANGE (6MM)

90111-GJ5-000

$4.05

20

BOLT, FLANGE (5X22)

90112-GK8-010

$2.62

21

SCREW, FLAT (6X22)

90164-GEE-003

$1.15

22

STRAP, CABLE (105MM) (BLACK)

90672-SB2-003

$5.31

23

CLIP, HARNESS BAND (151.5MM) (NATURAL)

91540-S30-003

$2.78

24

BOLT-WASHER (5X12)

93401-05012-00

$0.82

25

SCREW, PAN (4X16)

93500-04016-0A

$0.76

26

BOLT, FLANGE (6X12)

95701-06012-00

$1.84

27

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

28

BOLT, FLANGE (6X12)

96001-06012-00

$1.66

29

FUSE, MINI (10A)

98200-41000

$1.22

30

FUSE, MINI (20A)

98200-42000

$1.12
