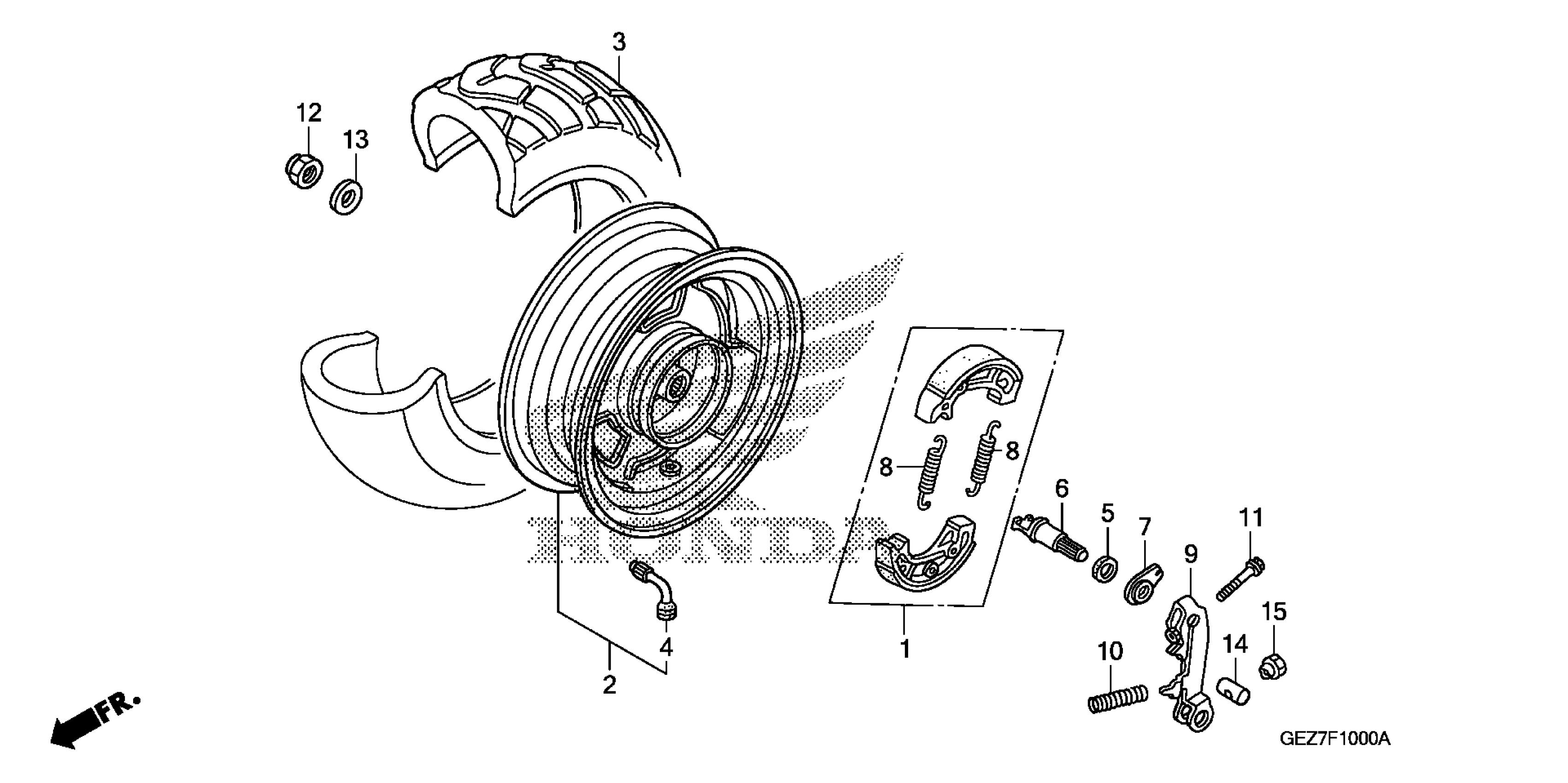

Honda NPS50AC (12) RUCKUS, JPN, VIN# JH2AF581-CK000001 REAR WHEEL Diagram

#

Description
Price

1

SHOE SET, BRAKE (ASK)

06430-GCW-000

$27.61

2

WHEEL SUB-ASSY., RR. *NH303M* (COO) (MAT AXIS GRAY METALLIC) This part replaces 42650-GEZ-672ZA.

42650-GGA-305ZA

$139.91

2

WHEEL SUB-ASSY., RR. *NH303M* (COO) (MAT AXIS GRAY METALLIC)

42650-GGA-305ZA

$139.91

3

TIRE This part replaces 42711-GEZ-673.

42711-GEZ-675

$75.02

3

TIRE This part replaces 42711-GEZ-674.

42711-GEZ-675

$75.02

4

VALVE, RIM (KENDA)

42753-GEZ-019

$8.33

5

SEAL, BRAKE CAM

43134-196-000

$2.37

6

CAM, RR. BRAKE

43141-GR0-003

$15.60

7

INDICATOR, RR. BRAKE This part replaces 43145-GK8-000.

43145-GN2-000

$3.96

7

INDICATOR, RR. BRAKE

43145-GN2-000

$3.96

7

INDICATOR, RR. BRAKE This part replaces 43145-GR2-000.

43145-GN2-000

$3.96

8

SPRING, BRAKE SHOE

43151-GC4-000

$4.56

9

ARM, RR. BRAKE

43410-GEZ-000

$11.06

10

SPRING, RR. BRAKE ARM

43472-KG8-000

$3.56

11

BOLT, FLANGE (5X25)

90112-GG2-900

$4.26

12

NUT, U (14MM)

90305-197-013

$5.86

13

WASHER (26X14X2.8)

90501-GAH-000

$6.33

14

JOINT A, BRAKE ARM

95015-31001

$1.78

15

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.50
