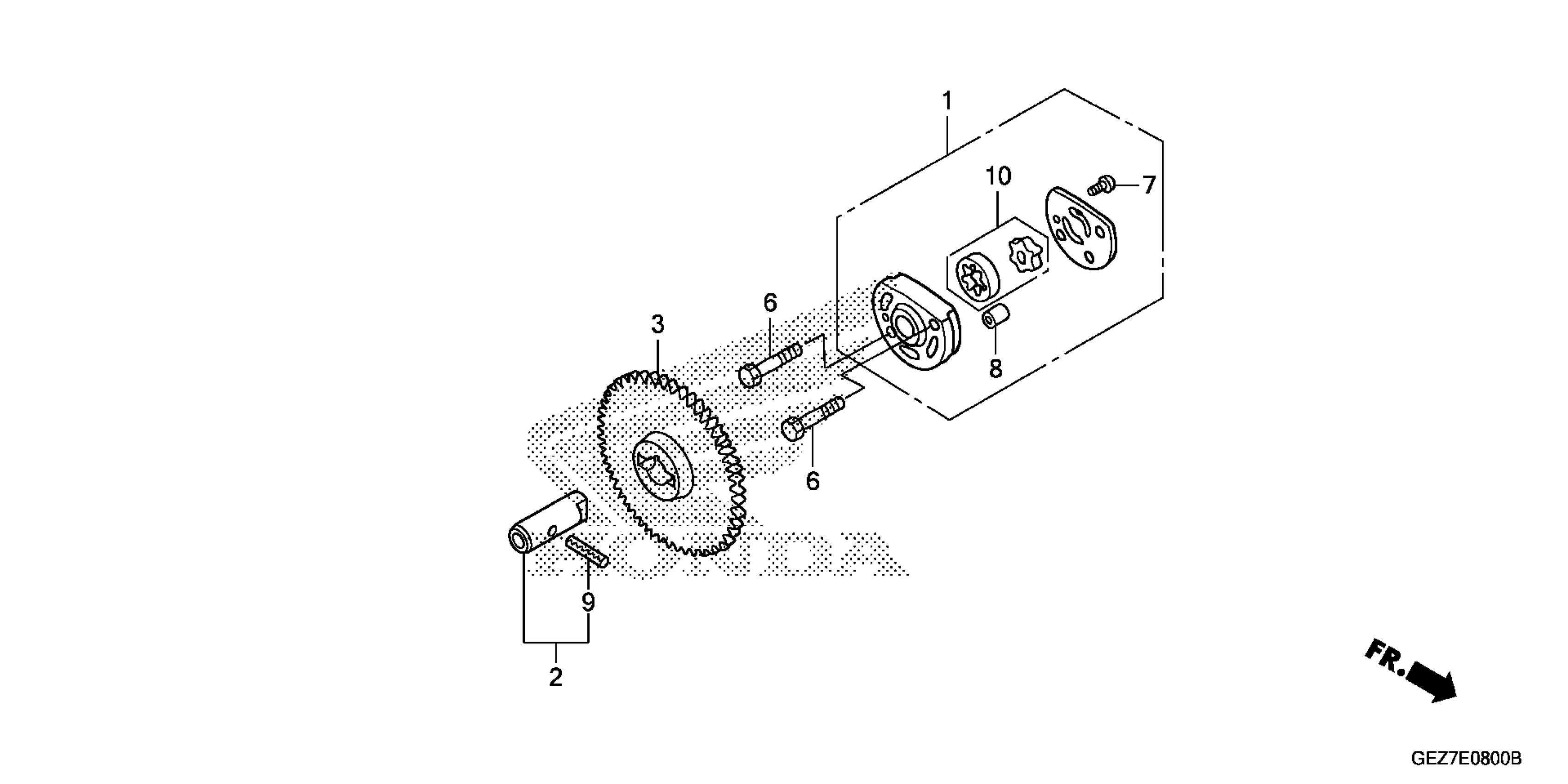

Honda NPS50AC (12) RUCKUS, JPN, VIN# JH2AF581-CK000001 OIL PUMP Diagram

PUMP ASSY., OIL

15100-GET-000

$35.42

SHAFT, OIL PUMP

15130-GET-A20

$9.06

GEAR, OIL PUMP DRIVEN (37T)

15133-GET-A20

$21.49

ROTOR, OIL PUMP (INNER)

15331-107-000

Unavailable

ROTOR, OIL PUMP (OUTER)

15332-107-000

Unavailable

BOLT, HEX. (6X22)

92101-06022-0A

$1.41

SCREW, PAN (3X10)

93500-03010-0A

$0.71

SCREW, PAN (3X10) This part replaces 93500-03010-1A.

93500-03010-0A

$0.71

PIN, DOWEL (6X10)

94301-06010

$1.20

PIN, SPRING (3X16)

94305-30162

$1.58

ROTOR SET, OIL PUMP

15021-107-000

$20.01
