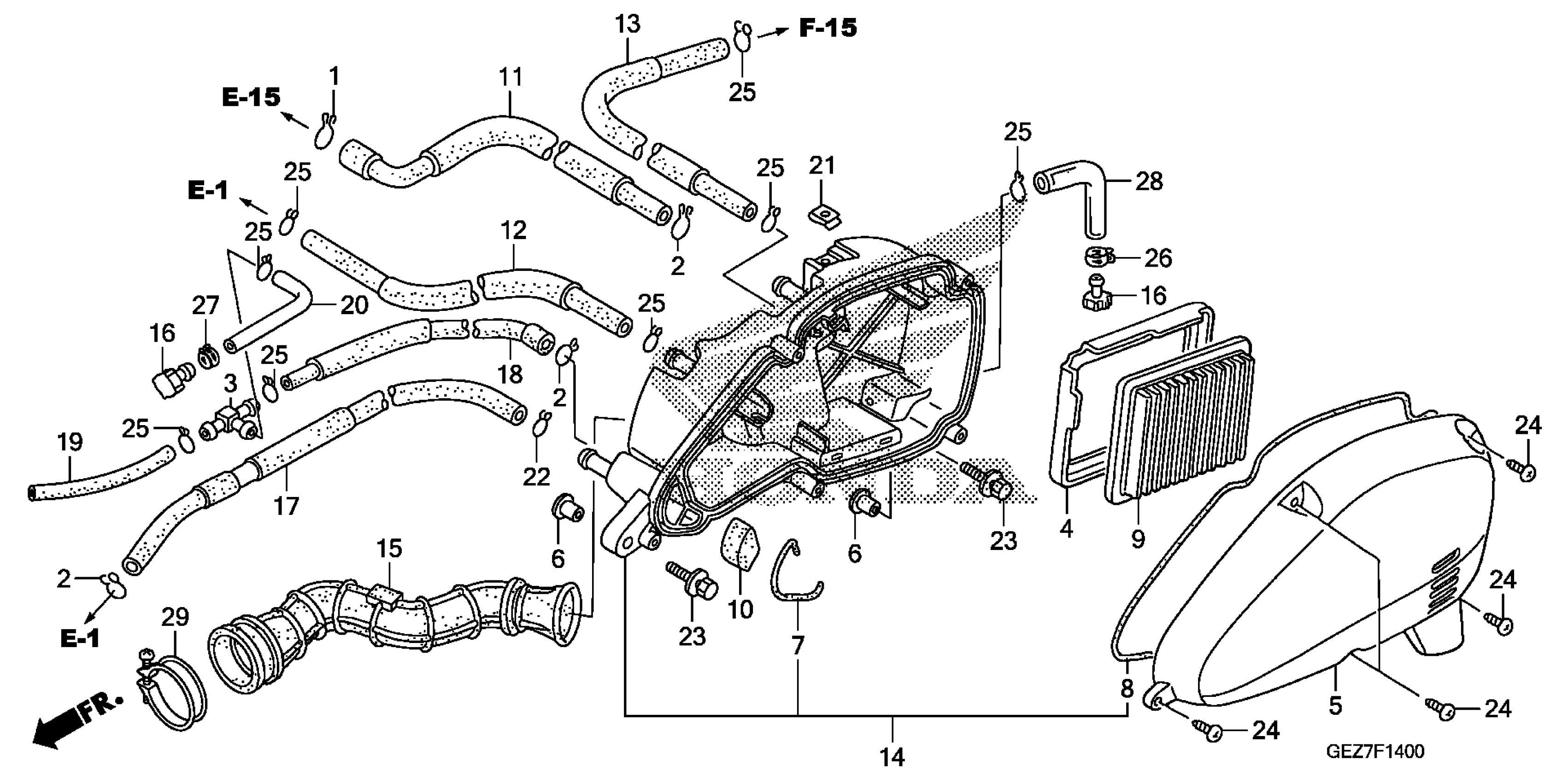

Honda NPS50AC (12) RUCKUS, JPN, VIN# JH2AF581-CK000001 AIR CLEANER Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-551-000

$9.44

2

CLIP, BREATHER TUBE

15772-500-010

$3.90

2

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90

3

T-JOINT

17195-MN5-000

$9.54

4

HOLDER, ELEMENT

17204-GET-000

$6.98

5

COVER, AIR CLEANER HOUSING

17207-GET-000

$18.58

6

COLLAR, AIR CLEANER SETTING

17208-GR1-010

$2.92

7

SEAL, SUB-AIR CLEANER

17211-GET-000

$1.49

8

SEAL, AIR CLEANER

17212-KW6-840

$7.56

9

ELEMENT, AIR CLEANER

17213-GET-000

$17.49

10

FILTER, SUB-AIR CLEANER

17214-GET-000

$3.20

11

TUBE, CARBURETOR

17217-GEZ-610

$10.26

12

TUBE A, BREATHER

17218-GEZ-010

$16.39

13

TUBE A, PCV

17218-GEZ-610

$7.51

14

CASE SUB-ASSY., AIR CLEANER

17225-GEZ-610

$32.33

15

TUBE, AIR CLEANER CONNECTING

17255-GEZ-610

$20.58

16

PLUG, BREATHER TUBE

17370-419-700

$3.74

17

TUBE A, AIR INJECTION CONTROL VALVE

18605-GEZ-611

$13.98

18

TUBE B, AIR INJECTION CONTROL VALVE

18606-GEZ-610

$7.11

19

TUBE C, AIR INJECTION CONTROL VALVE

18607-GEZ-610

$2.15

20

TUBE D, AIR INJECTION CONTROL VALVE

18608-GEZ-610

$4.84

21

NUT, CLIP (6MM)

90305-GEE-710

$1.62

22

CLAMP B, TUBE (12.5MM)

90661-GHB-610

$1.62

23

BOLT-WASHER (6X32)

93404-06032-00

$1.49

24

SCREW, TAPPING (5X20)

93903-25480

$1.49

25

CLIP, TUBE (B12.5)

95002-02130

$1.49

26

CLAMP, TUBE (D10.5)

95002-41050-00

$1.85

27

CLAMP, TUBE (D12.5)

95002-41250-04

$2.52

28

BULK HOSE, VINYL (8X12X8000) (8X12X160)

95003-23008-60M

Unavailable

29

BAND, AIR CLEANER CONNECTING TUBE (44)

95018-44250

$5.90
