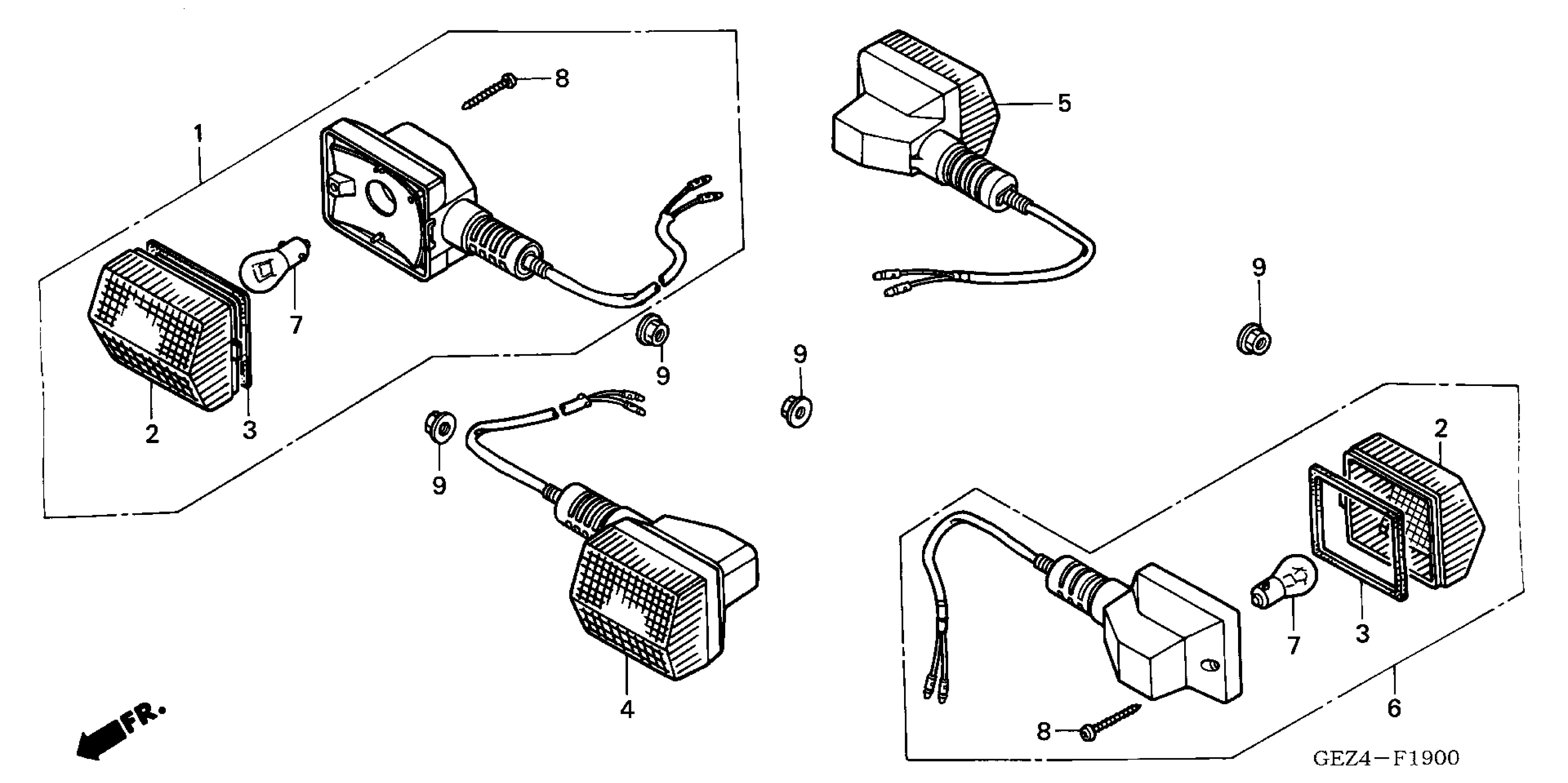

Honda NPS50A (06) RUCKUS, JPN, VIN# JH2AF580-6K300001 TURN SIGNAL Diagram

TURN SIGNAL ASSY., R. FR. (12V 23W) (NOT AVAILABLE)

33400-GEZ-671

$65.85

LENS, TURN SIGNAL (COO) This part replaces 33402-MG2-003.

33402-MGW-305

$10.52

GASKET, LENS

33407-MG2-003

$5.94

TURN SIGNAL ASSY., L. FR. (12V 23W) (COO)

33450-GEZ-305

$75.23

TURN SIGNAL ASSY., L. FR. (12V 23W) (COO) This part replaces 33450-GEZ-671.

33450-GEZ-305

$75.23

TURN SIGNAL ASSY., R. RR. (12V 23W) (COO) This part replaces 33600-GEZ-671.

33600-GEZ-305

$70.97

TURN SIGNAL ASSY., L. RR. (12V 23W) (COO)

33650-GEZ-305

$70.97

TURN SIGNAL ASSY., L. RR. (12V 23W) (COO) This part replaces 33650-GEZ-671.

33650-GEZ-305

$70.97

BULB, TURN SIGNAL (12V 23W) (STANLEY)

34905-268-671

$2.79

SCREW, TAPPING (3X25)

91901-MG2-003

$2.70

NUT, FLANGE (10MM)

94050-10000

$1.59
