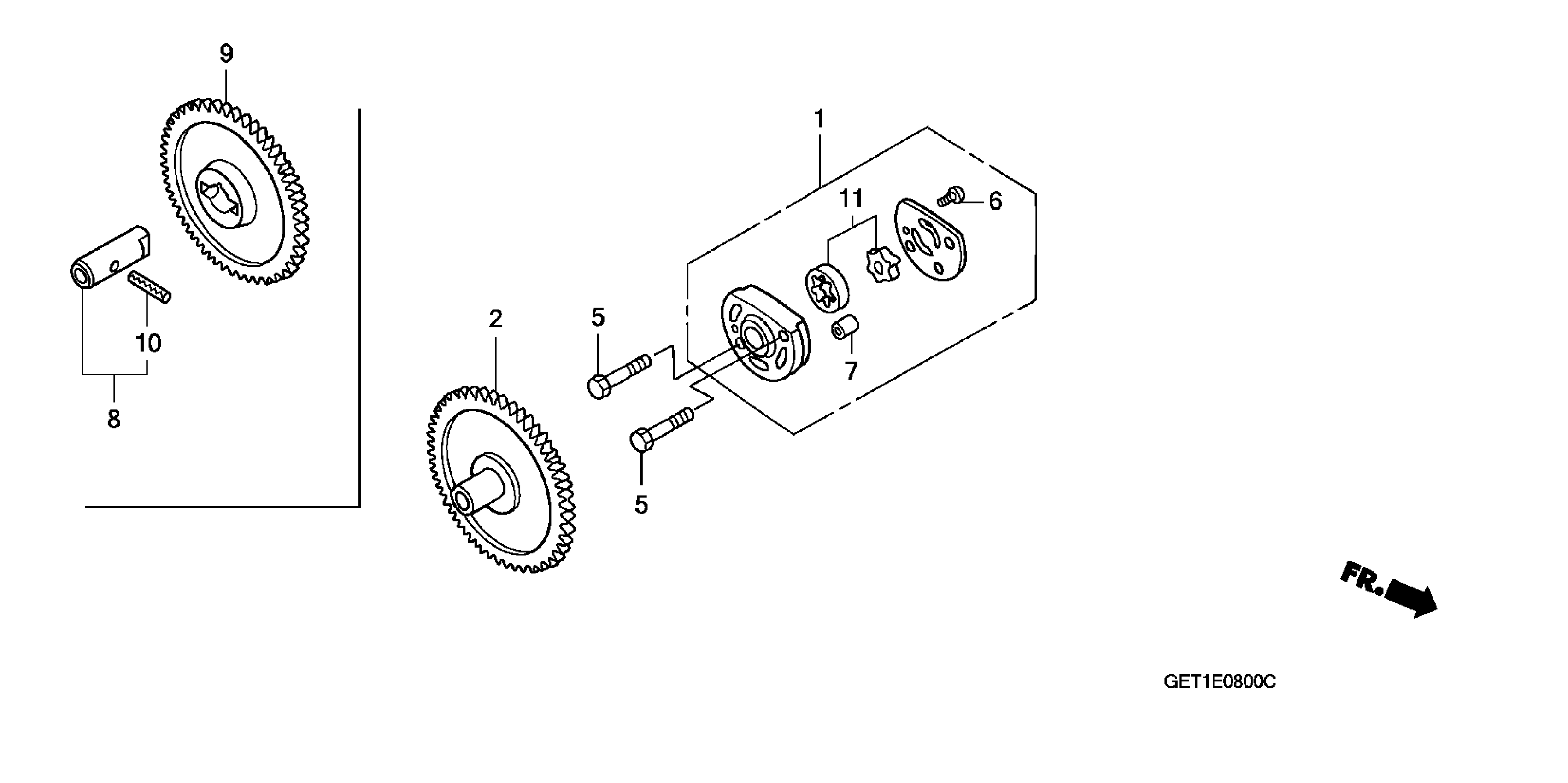

Honda NPS50A (06) RUCKUS, JPN, VIN# JH2AF580-6K300001 OIL PUMP Diagram

#

Description

Price

1

PUMP ASSY., OIL

15100-GET-000

$38.90

2

GEAR, OIL PUMP DRIVEN (37T) | Use up to Engine SN 5105378

15133-GET-003

Unavailable

3

ROTOR, OIL PUMP (INNER)

15331-107-000

Unavailable

4

ROTOR, OIL PUMP (OUTER)

15332-107-000

Unavailable

5

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

6

SCREW, PAN (3X10)

93500-03010-0A

$1.49

6

SCREW, PAN (3X10) This part replaces 93500-03010-1A.

93500-03010-0A

$1.49

7

PIN, DOWEL (6X10)

94301-06010

$1.49

8

SHAFT, OIL PUMP | Use from Engine SN 5105379

15130-GET-A20

$9.95

9

GEAR, OIL PUMP DRIVEN (37T) | Use from Engine SN 5105379

15133-GET-A20

$23.61

10

PIN, SPRING (3X16) | Use from Engine SN 5105379

94305-30162

$1.74

11

ROTOR SET, OIL PUMP

15021-107-000

$21.98
