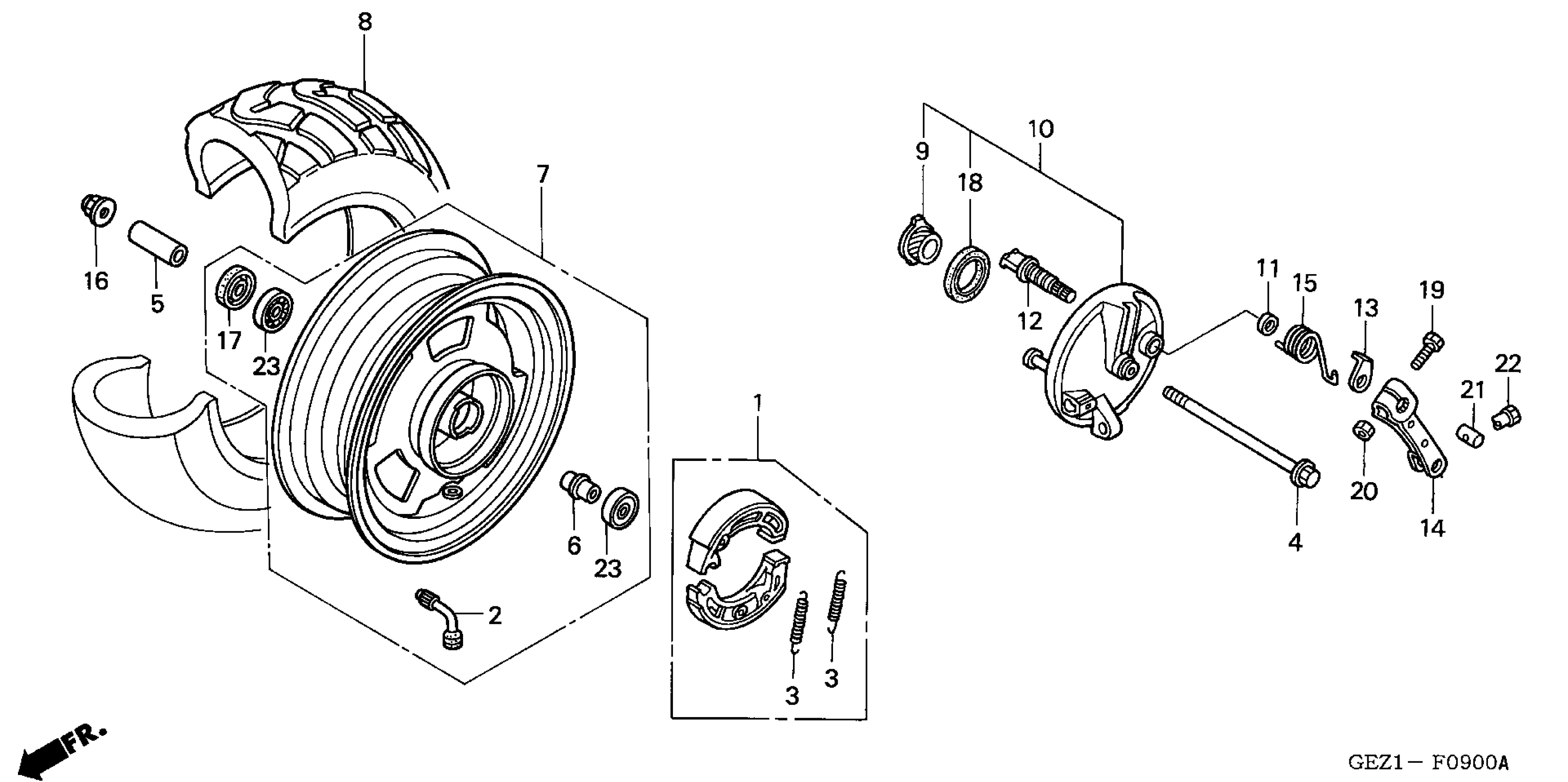

Honda NPS50A (06) RUCKUS, JPN, VIN# JH2AF580-6K300001 FRONT WHEEL Diagram

#

Description
Price

1

SHOE SET, BRAKE (JB)

06430-GET-000

$24.81

2

VALVE, RIM (KENDA) This part replaces 42753-GEZ-009.

42753-GEZ-019

$8.12

2

VALVE, RIM (KENDA)

42753-GEZ-019

$8.12

3

SPRING, BRAKE SHOE

43151-GC4-000

$4.45

4

AXLE, FR. WHEEL

44301-GEZ-000

$9.52

5

COLLAR, FR. WHEEL SIDE

44311-GEZ-000

$7.25

6

COLLAR, FR. DISTANCE

44620-147-000

$7.89

7

WHEEL SUB-ASSY., FR. *NH303M* (COO) (MAT AXIS GRAY METALLIC) This part replaces 44650-GEZ-671ZA.

44650-GGA-305ZA

$121.44

7

WHEEL SUB-ASSY., FR. *NH303M* (COO) (MAT AXIS GRAY METALLIC) This part replaces 44650-GEZ-672ZA.

44650-GGA-305ZA

$121.44

7

WHEEL SUB-ASSY., FR. *NH303M* (COO) (MAT AXIS GRAY METALLIC)

44650-GGA-305ZA

$121.44

8

TIRE This part replaces 44711-GEZ-673.

44711-GEZ-675

$68.84

8

TIRE This part replaces 44711-GEZ-674.

44711-GEZ-675

$68.84

8

TIRE This part replaces 44711-GEZ-672.

44711-GEZ-675

$68.84

9

GEAR, SPEEDOMETER (16T)

44806-GEZ-003

$12.27

10

PANEL SUB, FR. BRAKE *NH303M* (MAT AXIS GRAY METALLIC)

45010-GEZ-610ZA

$74.09

11

SEAL, BRAKE CAM

45134-165-890

$1.43

12

CAM, FR. BRAKE

45141-GEZ-000

$12.17

12

CAM, FR. BRAKE

45141-GEZ-003

$15.80

13

INDICATOR, FR. BRAKE

45145-GEE-000

$3.67

14

ARM, FR. BRAKE

45410-GT8-600

$12.90

15

SPRING, BRAKE ARM RETURN

45435-GC3-000

$5.50

16

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.42

17

OIL SEAL (19X30.5X7) (ARAI)

90754-147-003

$4.94

18

OIL SEAL (34X42X5) (NOK)

91252-GF0-004

$5.73

19

BOLT, HEX. (5X25)

92101-05025-0A

Unavailable

20

NUT, HEX. (5MM)

94001-05000-0S

$2.42

21

JOINT A, BRAKE ARM

95015-31001

$1.46

22

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.28

23

BEARING, RADIAL BALL (6200U)

96140-62000-10

$13.86
