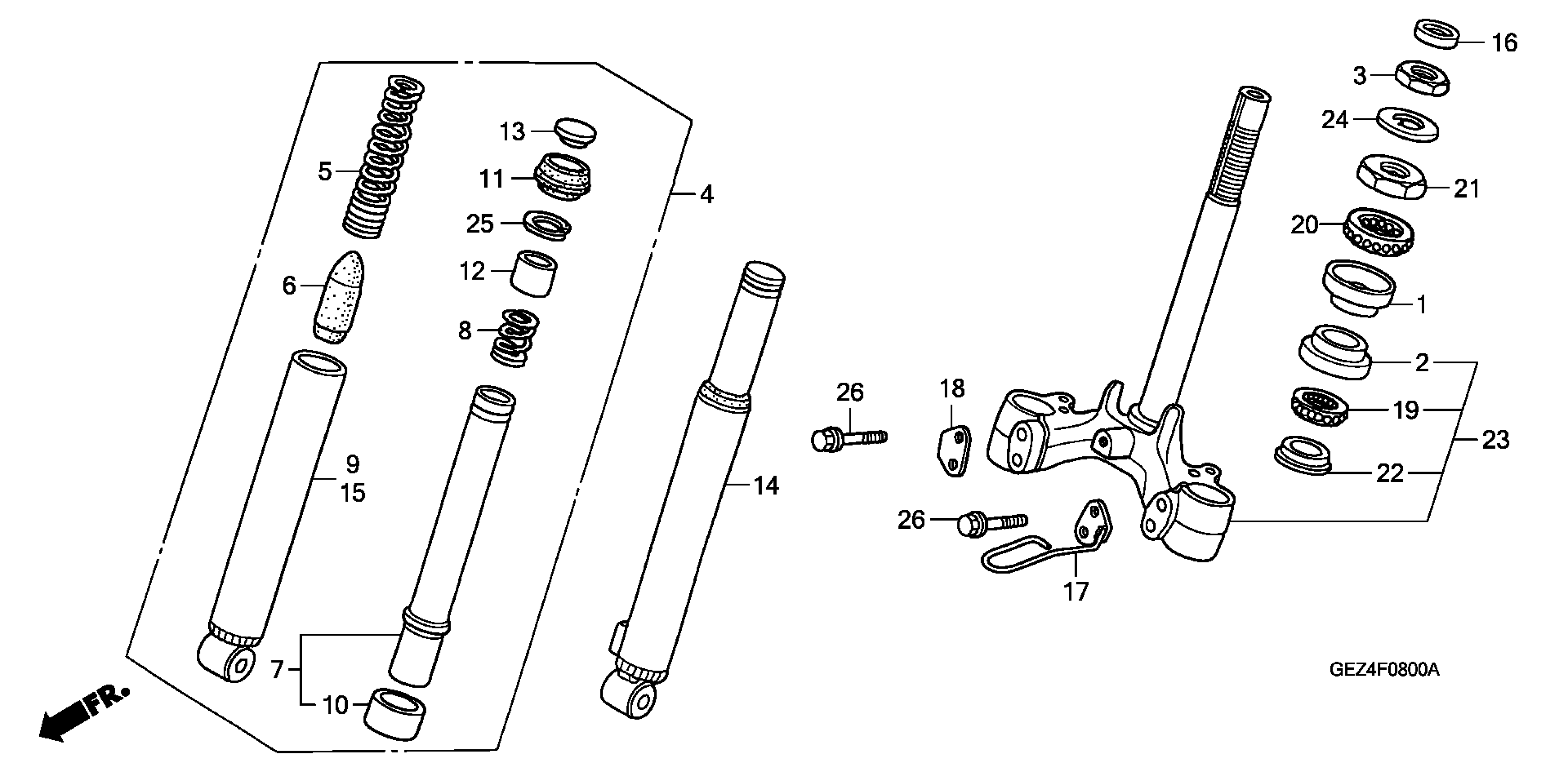

Honda NPS50A (06) RUCKUS, JPN, VIN# JH2AF580-6K300001 FRONT FORK + FRONT CUSHION Diagram

#

Description
Price

1

RACE, STEERING BALL (UPPER)

50301-GM0-000

$12.16

2

RACE, STEERING BALL (LOWER)

50305-GC8-003

$11.64

3

NUT, STEERING STEM LOCK

50306-GEZ-000

$4.04

4

FORK ASSY., R. FR. (COO) (SHOWA) This part replaces 51400-GET-013.

51400-GGA-305

$155.48

4

FORK ASSY., R. FR. (COO) (SHOWA)

51400-GGA-305

$155.48

5

SPRING, FR. FORK

51401-GET-003

$12.50

6

RUBBER, STOPPER (SHOWA) (R. SIDE)

51406-GAH-781

$9.87

7

PIPE, FR. FORK

51410-GET-003

$63.98

8

SPRING, REBOUND This part replaces 51412-GET-003.

51412-GEV-711

$7.41

8

SPRING, REBOUND

51412-GEV-711

$7.41

9

CASE, R. (LOWER)

51421-GET-013

$80.41

10

PISTON, SLIDE PIPE

51423-GW0-731

$8.21

11

DUST SEAL

51425-GW0-701

$9.39

12

GUIDE, PIPE

51443-GW0-732

$10.72

13

CAP, FR. FORK

51449-GW0-003

$6.36

14

FORK ASSY., L. FR. (COO) (SHOWA) This part replaces 51500-GEZ-671.

51500-GGA-305

$164.93

14

FORK ASSY., L. FR. (COO) (SHOWA)

51500-GGA-305

$164.93

15

CASE, L. (LOWER)

51521-GEZ-671

$88.97

16

COVER, STEM

53135-GEZ-010

$2.92

17

GUIDE, BRAKE CABLE

53203-GEZ-010

$7.41

18

PLATE, R.

53206-GEZ-000

$2.23

19

BALL ASSY., STEERING STEEL

53210-GG2-751

$15.03

20

BALL ASSY., STEERING STEEL

53210-GR1-751

$16.79

21

RACE, STEERING TOP CONE

53211-GEZ-000

$10.12

22

RACE, STEERING CONE (LOWER)

53212-GEE-000

$10.20

23

STEM SUB-ASSY., STEERING

53219-GEZ-020

$153.68

24

WASHER, LOCK NUT

90506-KCW-850

$2.51

25

CIRCLIP (INNER)

90661-GW0-003

$3.85

26

BOLT, FLANGE (8X40)

95801-08040-07

$1.49
