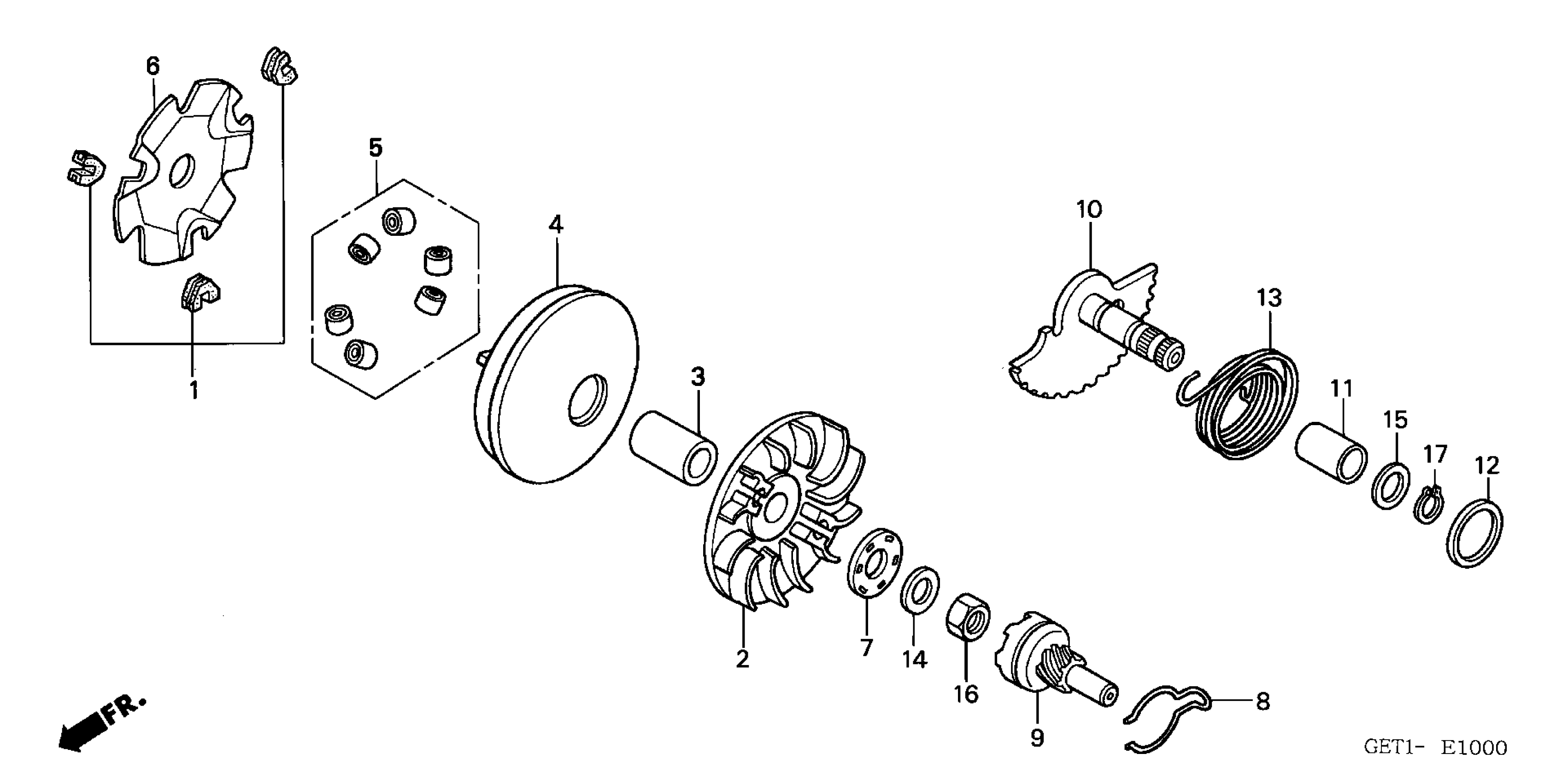

Honda NPS50A (06) RUCKUS, JPN, VIN# JH2AF580-6K300001 DRIVE FACE + KICK STARTER SPINDLE Diagram

PIECE SET, SLIDE

22011-GW0-000

$10.46

FACE, DRIVE This part replaces 22102-GET-020.

22102-GET-030

$34.92

BOSS, DRIVE FACE

22105-GAH-780

$17.38

FACE, MOVABLE DRIVE

22110-GBC-000

$53.02

ROLLER SET, WEIGHT

22123-GT8-600

$21.38

PLATE, RAMP

22131-GBC-000

$16.85

RATCHET, STARTER

28211-KFH-000

$12.91

SPRING, KICK DRIVEN GEAR

28223-KEE-630

$2.92

GEAR, KICK DRIVEN (7T)

28230-GEE-000

$20.20

SPINDLE, KICK STARTER

28250-GET-000

$41.68

BUSH, KICK SPINDLE (HITACHI FUNMATSU)

28253-GBL-003

$10.07

BUSH, KICK SPINDLE (NTN)

28253-GN2-601

$9.13

COLLAR, KICK BOSS

28255-GS6-000

$5.62

SPRING, KICK RETURN

28281-GET-000

$6.31

WASHER, SPECIAL (12MM)

90426-KBN-900

$4.71

WASHER (14MM)

90451-GBL-870

$2.92

NUT, HEX. (12MM)

94002-12200-0S

$1.49

CIRCLIP (OUTER) (14MM)

94511-14000

$1.49
