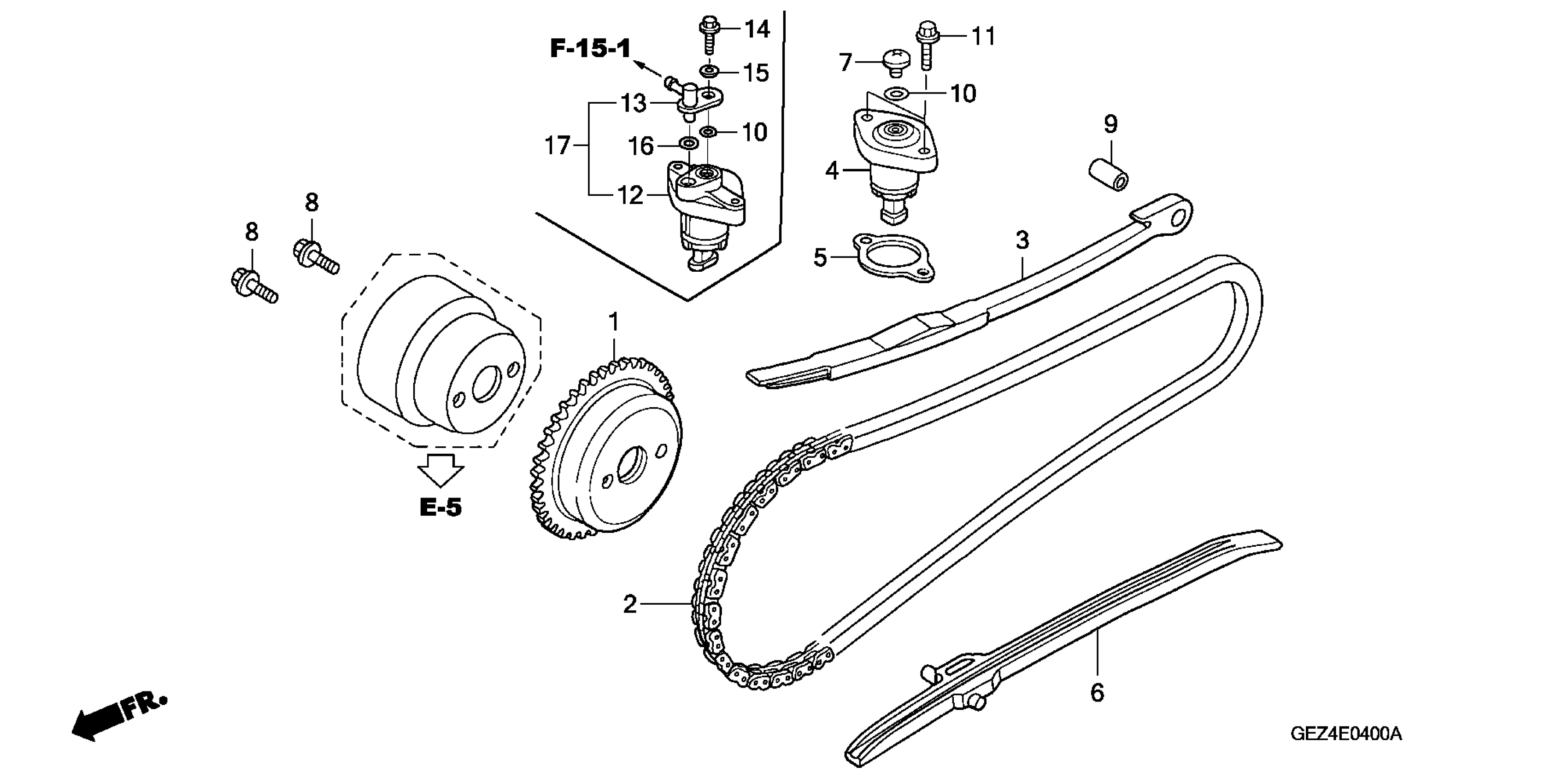

Honda NPS50A (06) RUCKUS, JPN, VIN# JH2AF580-6K300001 CAM CHAIN + TENSIONER Diagram

#

Description
Price

1

SPROCKET, CAM (34T)

14321-GET-000

$27.80

2

CHAIN, CAM (82L) (BORG WARNER)

14401-GET-004

$22.30

3

TENSIONER, CAM CHAIN

14510-GET-000

$45.10

5

GASKET, TENSIONER LIFTER

14560-KCW-851

$4.70

6

GUIDE, CAM CHAIN

14611-GET-000

$21.06

8

BOLT, KNOCK (5MM)

90083-GET-000

$1.26

9

PIN, DOWEL (6X15)

90702-MG8-000

$2.80

10

O-RING (1.5X9.5)

91306-MG3-000

$2.12

10

O-RING (1.5X9.5) This part replaces 91306-105-690.

91306-MG3-000

$2.12

11

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

12

LIFTER ASSY., TENSIONER | Use from Engine SN 5104799

14520-GEZ-612

$65.55

13

JOINT, PCV | Use from Engine SN 5104799

14525-GEZ-611

$17.93

14

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.26

15

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.25

15

WASHER, SEALING (6.2X12X1.2)

90463-KRM-840

$1.25

16

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$2.80

16

O-RING (6.8X1.9)

91306-PJ4-000

$2.80

16

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$2.80

17

LIFTER SET, TENSIONER | Use up to Engine SN 5104798

06145-GEZ-305

$89.17
