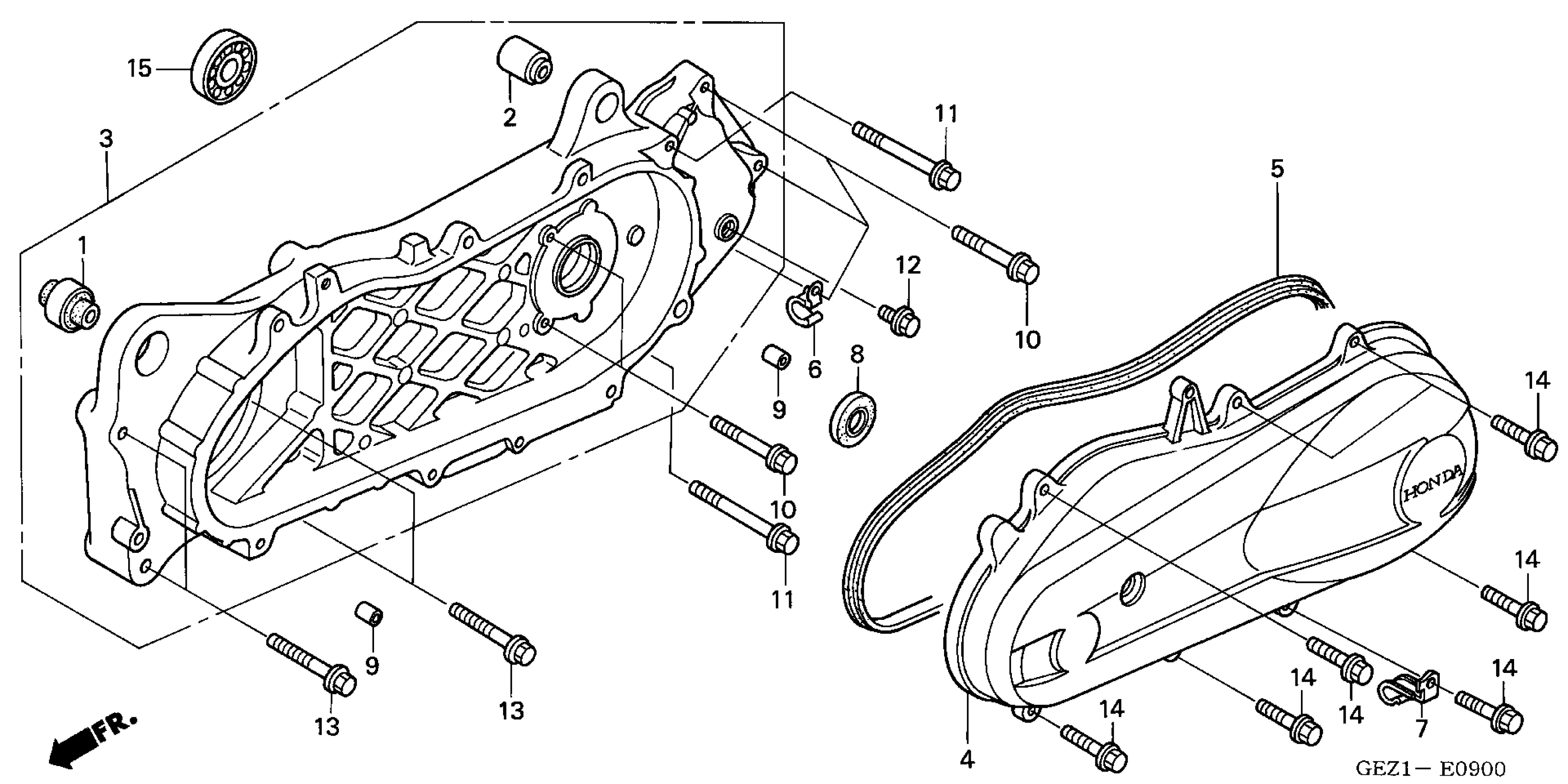

Honda NPS50A (04) RUCKUS, JPN, VIN# JH2AF580-4K100001 TO JH2AF580-4K199999 SWINGARM + LEFT CRANKCASE COVER Diagram

BUSH, ENGINE HANGER RUBBER

11102-GEE-003

$7.79

BUSH, RR. CUSHION RUBBER (LOWER)

11203-GC7-300

$10.71

SWINGARM This part replaces 11300-GEZ-000.

11300-GEZ-010

$180.25

SWINGARM

11300-GEZ-010

$180.25

COVER, L. SIDE

11341-GEZ-000

$167.77

GASKET, L. COVER

11395-GEZ-000

$14.84

CLAMP, DRAIN

17212-GEE-710

$3.31

CLAMP, BRAKE CABLE

43452-GW0-000

$3.77

OIL SEAL (17X30X5) (ARAI)

91204-GBB-003

$3.85

PIN, DOWEL (8X14)

94301-08140

$2.25

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

BOLT, FLANGE (8X45)

95801-08045-00

$1.80

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

BEARING, RADIAL BALL (6203)

96100-62033-00

$10.00
