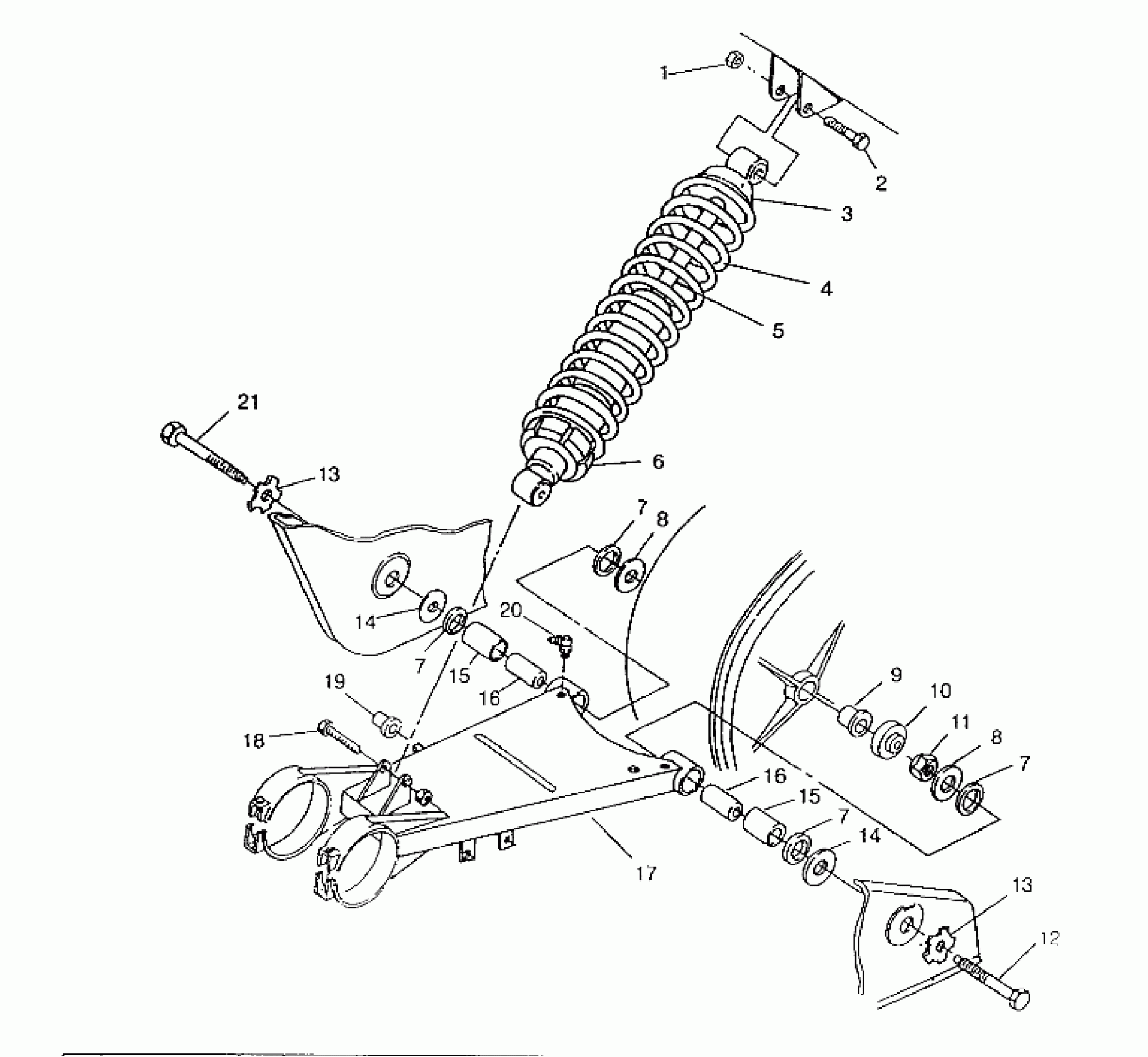

Polaris NORWEGIAN 400L 6X6 - N948740 SWING ARM/SHOCK MOUNTING 6x6 400L, SWEDISH S948740 and NORWEGIAN N948740 (4926812681029A) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542439

$1.49

2

BOLT(10)

7515415

$1.49

3

RETAINER-TOP (Top)

5220225

$10.39

4

SPRING,COMP,REAR,RED

7041305-093

Unavailable

5

SHOCK

7041220

Unavailable

6

SPACER,SHOCK RETAINER(10)

5210953

$6.39

7

SEAL,OIL

3610016

$28.32

7

SEAL,OIL

3610016

$28.32

7

SEAL,OIL

3610016

$28.32

7

SEAL,OIL

3610016

$28.32

8

WASHER(10)

7555779

Unavailable

8

WASHER(10)

7555779

Unavailable

9

Bushing, Pivot (See Page A45, Ref. 4)

-------

Unavailable

10

GUIDE, CHAIN

5431310

$32.37

11

NUT,CROWN LOCK(10)

7542601

Unavailable

12

BOLT, SHOULDER

7512702

Unavailable

13

PLATE,BOLT LOCK

5220958

$35.99

13

PLATE,BOLT LOCK

5220958

$35.99

14

BUSHING, MACH.(10)

7555752

Unavailable

14

BUSHING, MACH.(10)

7555752

Unavailable

15

BEARING,SWINGARM

3576512

Unavailable

15

BEARING,SWINGARM

3576512

Unavailable

16

BUSHING,SWING ARM

5010255

Unavailable

16

BUSHING,SWING ARM

5010255

Unavailable

16

BUSHING,SWING ARM

5010255

Unavailable

17

SWINGARM, BLK.

1580062-067

Unavailable

18

BOLT(10)

7515438

$4.79

20

FITTING, LUBE.

7080438

$10.39

21

BOLT, SHOULDER

7512701

$23.99
