GEARCASE/BRAKE and CHAIN COVER MOUNTING 6x6 400L, SWEDISH S948740 and NORW (4926812681035A)

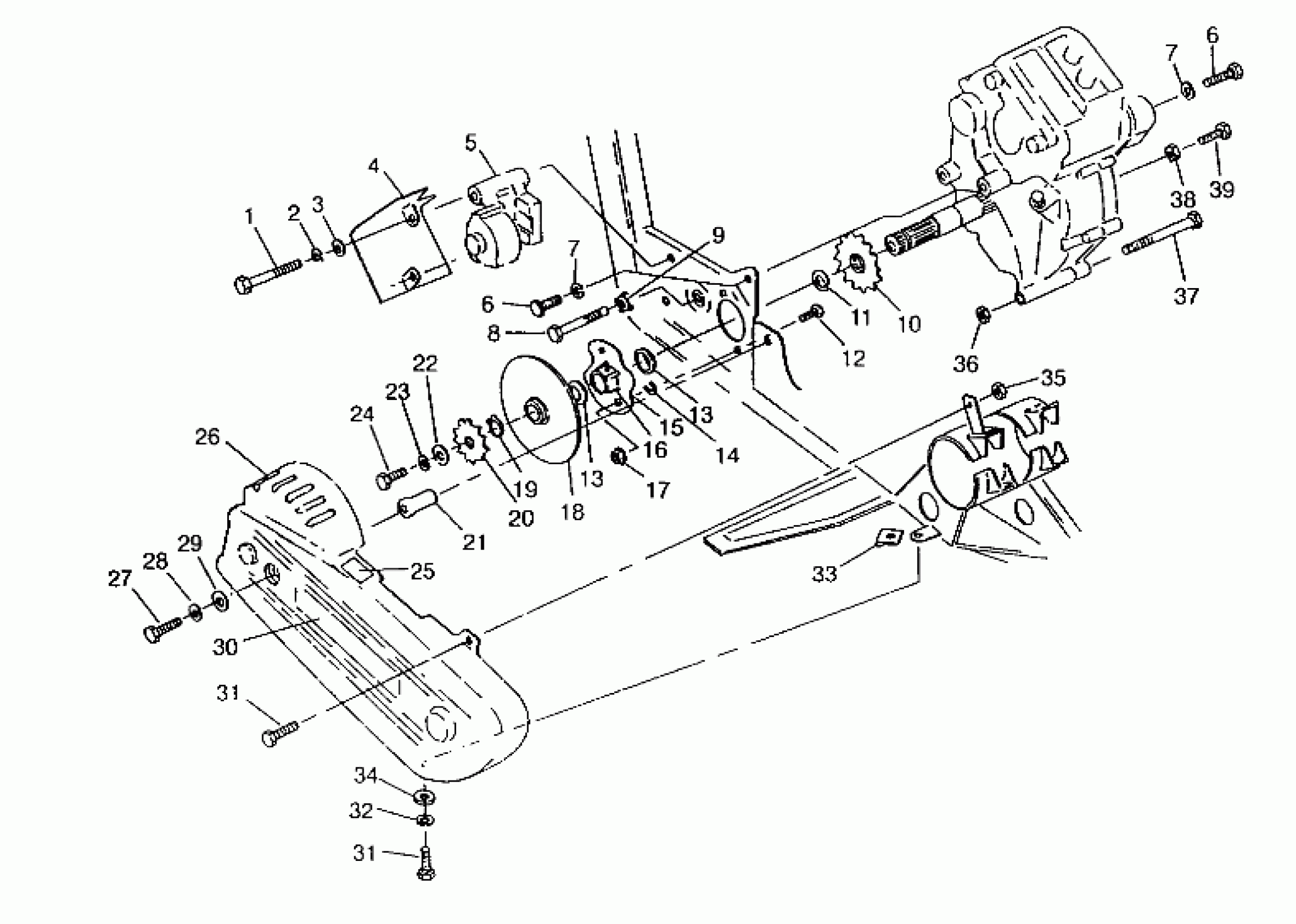

Polaris NORWEGIAN 400L 6X6 - N948740 GEARCASE/BRAKE and CHAIN COVER MOUNTING 6x6 400L, SWEDISH S948740 and NORW (4926812681035A) Diagram
#
1
BOLT(10)
7515345
$5.59
2
LOCK WASHER(10)
7552901
$1.49
3
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
4
SHIELD,R.CALIPER,BLK.
5240149-067
Unavailable
5
DESC NOT_AVAILABLE
1910162
Unavailable
6
BOLT(10)
7515522
$3.99
6
BOLT(10)
7515522
$3.99
7
WASHER(10)
7552603
$1.49
7
WASHER(10)
7552603
$1.49
8
Bolt, Shoulder (See Pg. A34, Ref. 12)
-------
Unavailable
9
Plate, Bolt Lock (See Pg. A34, Ref. 13)
-------
Unavailable
10
Sprocket, 13T (See Pg. A45, Ref. 46)
-------
Unavailable
11
Ring, Retaining (See Pg. A45, Ref. 45)
-------
Unavailable
12
BOLT,CARRIAGE(10)
7515484
Unavailable
13
SEAL, BRAKE
3610026
$7.99
13
SEAL, BRAKE
3610026
$7.99
14
SPACER,(10)
5210764
Unavailable
14
SHIM,(.030)
5211517
Unavailable
14
SHIM,(.010) Substituted by 5211065
5211518
Unavailable
15
BRG.ASM,O/P SHAFT
1590237
$84.99
16
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
17
NUT,FLANGE LOCK(10)
7542449
$3.99
18
Weld., Brake Disc (See Pg. A45, Ref. 39)
-------
Unavailable
19
Ring, Retaining (See Pg. A45, Ref. 40)
-------
Unavailable
20
Sprocket, 11T (See Pg. A45, Ref. 41)
-------
Unavailable
21
SPACER, CHAIN GUARD
5333244
Unavailable
22
Washer (See Pg. A45, Ref. 42)
-------
Unavailable
23
Washer (See Pg. A45, Ref. 43)
-------
Unavailable
24
Screw (See Pg. A45, Ref. 44)
-------
Unavailable
25
DECAL,LUBRICATION
7074214
Unavailable
26
GUARD,CHAIN,CTR.
5431717
Unavailable
27
BOLT(10)
7515346
$5.59
28
WASHER(10)
7552606
$4.79
29
WASHER(10) Substituted by 7558402
7555770
Unavailable
30
DECAL,'DEMAND-DRIVE'
7073454
Unavailable
31
BOLT(10)
7512269
Unavailable
31
BOLT(10)
7512269
Unavailable
32
WASHER(10)
7552605
$5.27
33
NUT, SPEED(10)
7670060
$3.99
34
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
35
NUT-LOCK(10)
7542122
$1.49
36
NUT LOCK(10)
7542403
$3.99
37
BOLT(10)
7515472
$2.39
38
NUT(10)
7542404
$1.59
39
BOLT(10)
7515485
$3.03
