- NORWEGIAN 400L 6X6 - N948740
ELECTRICAL/TAILLIGHT ASSEMBLY 6x6 400L, SWEDISH S948740 and NORWEGIAN N948 (4926812681039A)

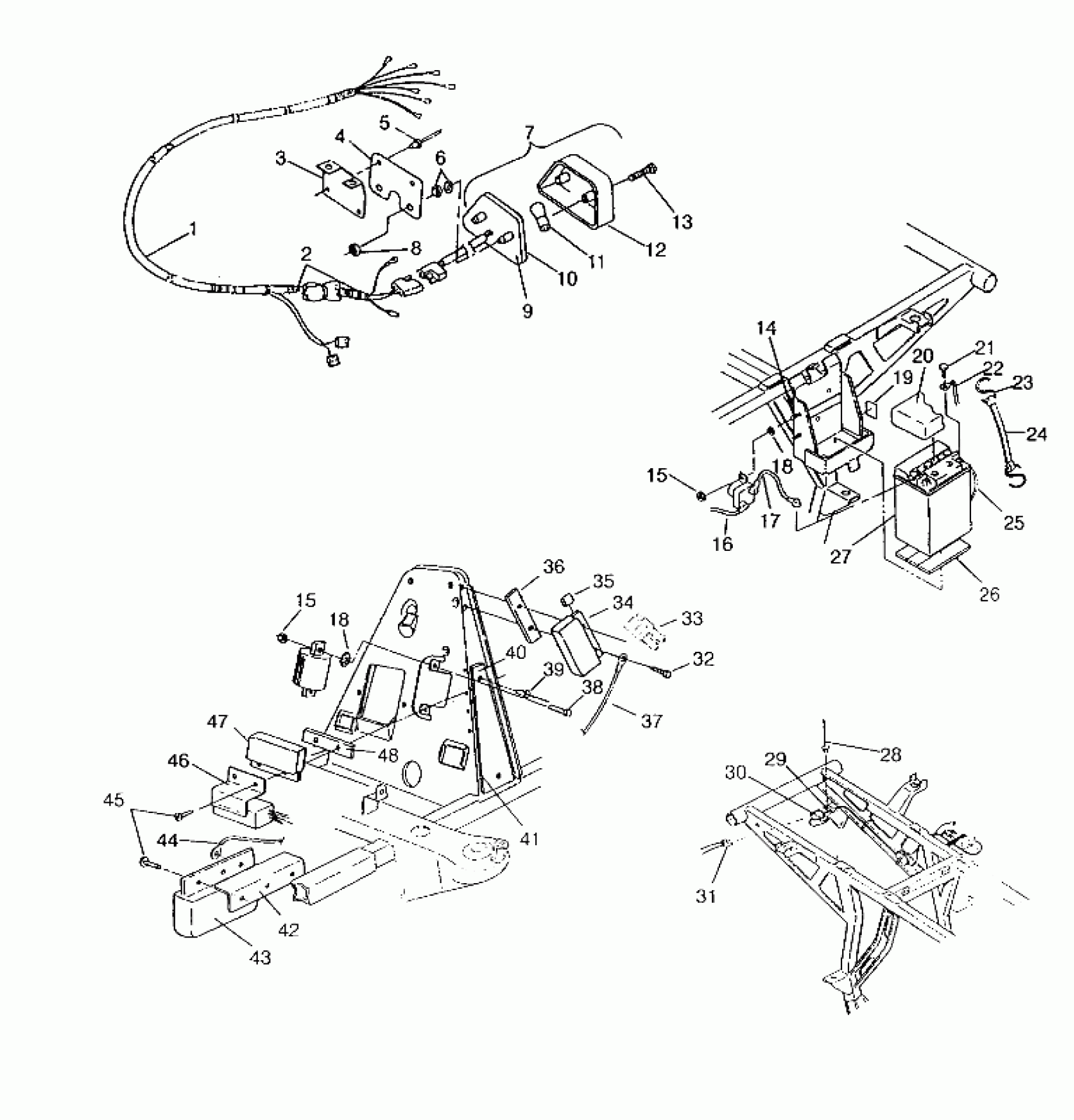

Polaris NORWEGIAN 400L 6X6 - N948740 ELECTRICAL/TAILLIGHT ASSEMBLY 6x6 400L, SWEDISH S948740 and NORWEGIAN N948 (4926812681039A) Diagram
#
1
HARNESS,MAIN WIRE,(400-6X6)
2460489
Unavailable
2
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
3
BRACKET,T/L MOUNT
5240244-067
Unavailable
4
ISOLATOR,TAILLIGHT
5211391-067
$13.39
5
RIVET(50)
7621470
$3.17
6
WASHER(10) Substituted by 7558301
7555776
Unavailable
7
TAIL LIGHT ASM.
2432034
$55.99
8
SPEED NUT-WASHER, HEAD-1/4
7670054
$1.49
9
BACKING,TAILLIGHT
4032064
$83.99
10
GASKET,TAILLIGHT
4032045
$4.03
11
BULB,TAILLIGHT
4030043
$6.46
12
LENS,TAILLIGHT
4032046
$32.37
13
Screw, Taillight
4032029
$4.79
14
SCREW(10)
7512027
$1.49
15
NUT(10)
7541925
$1.49
15
NUT(10)
7541925
$1.49
16
CABLE,SOLENOID/STARTER
4010064
Unavailable
17
CABLE,BATT/SOLENOID,RED
4010094
Unavailable
18
WASHER(10)
7571602
$4.79
18
WASHER(10)
7571602
$4.79
19
DECAL, BATTERY [No Longer Available]
7072606
Unavailable
20
COVER,BATTERY
5431769
$14.39
21
BOLT,BATT,KIT(SHORT) (Short)
2200361
$3.99
22
CABLE,BATT/ENG.,BLK.
4010095
Unavailable
23
HOOK-BATT.H/D(10)
7010032
$1.59
24
STRAP,BATTERY HOLDDOWN
5410424
Unavailable
25
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
26
PAD-BATTERY
5810290
$7.27
27
Battery
4140006
$99.99
28
RIVET,(50)
7621336
$1.59
29
CLAMP,BLK,5/16 PLASTIC(10)
7080524
Unavailable
30
POWERPLUG ASM,12V.
2410023
$28.95
31
PIGTAIL, POWER (Pigtail Power)
2460442
$12.39
32
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
$3.19
33
HARNESS-JUMPER,LIMITER
2460509
Unavailable
34
LIMITER,RPM,600HZ. (LR-80)
4060116
Unavailable
35
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
$40.46
36
HEAT SINK
5210650
Unavailable
37
WIRE,JUMPER,18 GA.
4010092
Unavailable
38
SCREW(10)
7512007
$3.99
39
RIVET, POP(50)
7621322
$0.56
40
BOARD,TERMINAL
4040022
Unavailable
41
SHIELD,TERM.BOARD
5431152
Unavailable
42
HEATSINK RECT.
5131036
Unavailable
43
RECTIFIER,SWITCHING
4060113
Unavailable
44
HARNESS,JUMPER,RECTIFIER
2460485
Unavailable
46
BRKT,CDI(ATV 400)
5240428
Unavailable
47
LIMITER,RPM,350HZ. Substituted by 4060203
4060112
Unavailable
