A-ARM/STRUT MOUNTING 6x6 400L, SWEDISH S948740 and NORWEGIAN N948740 (4926812681021A)

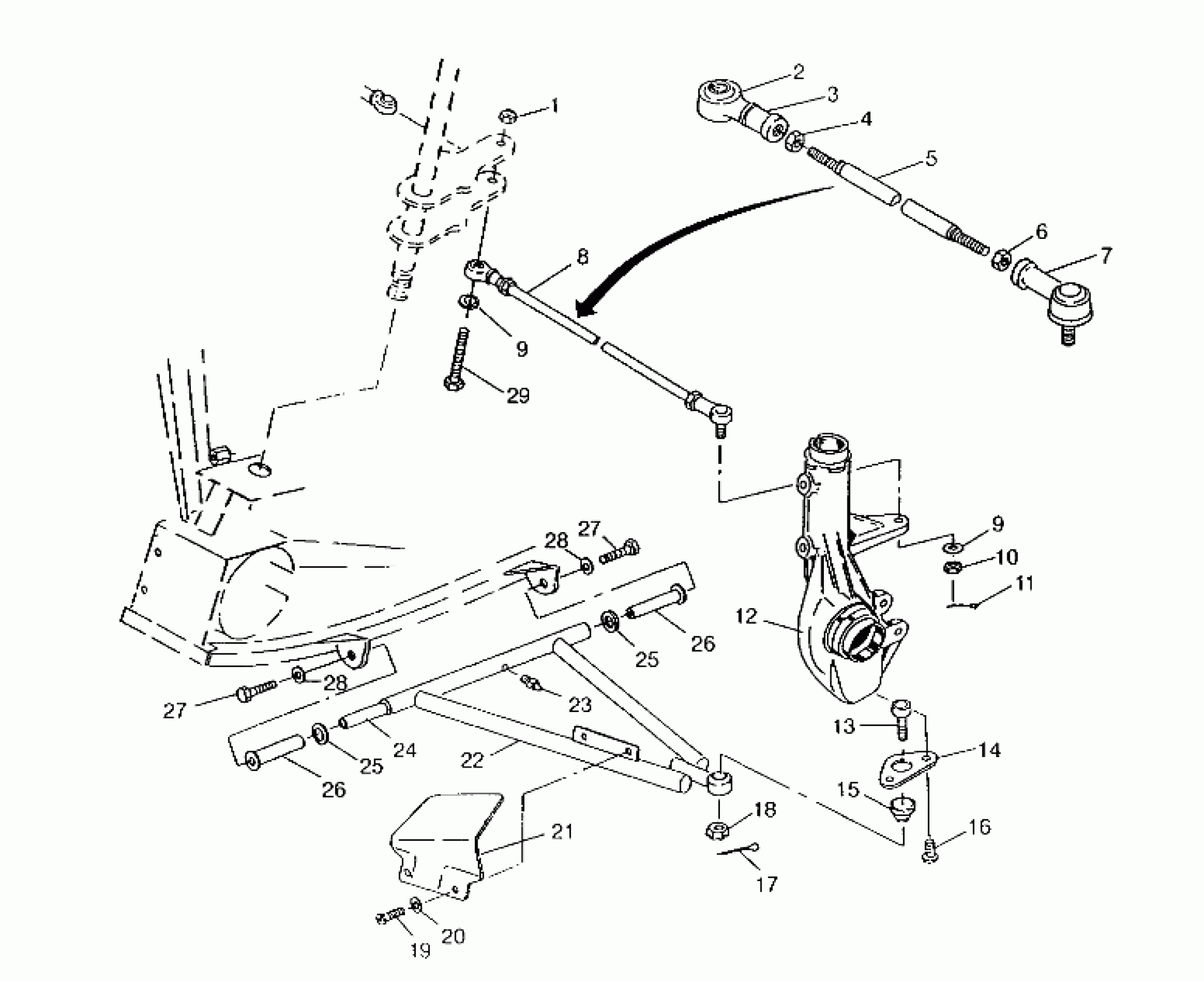

Polaris NORWEGIAN 400L 6X6 - N948740 A-ARM/STRUT MOUNTING 6x6 400L, SWEDISH S948740 and NORWEGIAN N948740 (4926812681021A) Diagram
#
Description
Price
1
NUT LOCK(10)
7542403
$3.99
2
BOOT, SEAL, ROD END
5410540
$7.19
3
ROD END, RH Substituted by 1822179
7060149
Unavailable
4
NUT HEX(10)
7542401
$2.39
5
TIE ROD
5020528
Unavailable
6
NUT, LH, 10 MM.(10)
7546902
Unavailable
7
ROD END
7060147
$56.65
8
TIE ROD ASM. Substituted by 1822310
1822081
Unavailable
9
WASHER(10)
7555806
$1.49
9
WASHER(10)
7555806
$1.49
10
NUT, CASTLE(10)
7546904
$4.79
11
PIN COTTER(10)
7661203
$1.49
12
Asm., Hub Strut, RH (See Pg. A21, Ref. 15)
-------
Unavailable
12
Asm., Hub Strut, LH (See Pg. A21, Ref. 15)
-------
Unavailable
13
BALL JOINT Substituted by 7080673
7080364
Unavailable
14
BRACKET-BALL JOINT
5211121
$31.99
15
Boot, Rubber
5410548
Unavailable
16
SCR-1/4-20X5/8 FL HX SOC CP-Y
7512284
$1.49
17
COTTER PIN(10)
7661401
$1.49
18
NUT-3/8-24 HX CA GR5-Y
7542438
$1.59
19
SCREW(10)
7512017
$4.79
20
WASHER(10)
7555792
$4.79
21
SHIELD,RH CV JOINT Substituted by 5431149-070
5431149
$24.27
21
SHIELD,LH CV JOINT Substituted by 5431150-070
5431150
Unavailable
22
KIT,A-FRAME,LH
2200483
$113.32
22
KIT,A-FRAME,RH
2200484
$109.11
23
ZERK,FITTING,THREADED(10)
7080433
$1.49
24
Shaft, A-Arm
5020681
Unavailable
25
BUSHING,A-ARM SPACER(10)
5020677
$10.39
25
BUSHING,A-ARM SPACER(10)
5020677
$10.39
26
BUSHING,A-ARM,LONG. Substituted by 5433066
5431596
Unavailable
26
BUSHING,A-ARM,LONG. Substituted by 5433066
5431596
Unavailable
27
BOLT(10) Substituted by 7512492
7515458
Unavailable
27
BOLT(10) Substituted by 7512492
7515458
Unavailable
28
WASHER(10)
7552603
$1.49
28
WASHER(10)
7552603
$1.49
29
KIT,A-FRAME,LH (Incl. 22,23,25-28)
2200483
$113.32
29
KIT,A-FRAME,RH (Incl. 22,23,25-28)
2200484
$109.11
29
BOLT(10) Substituted by 7515554
7515507
Unavailable
