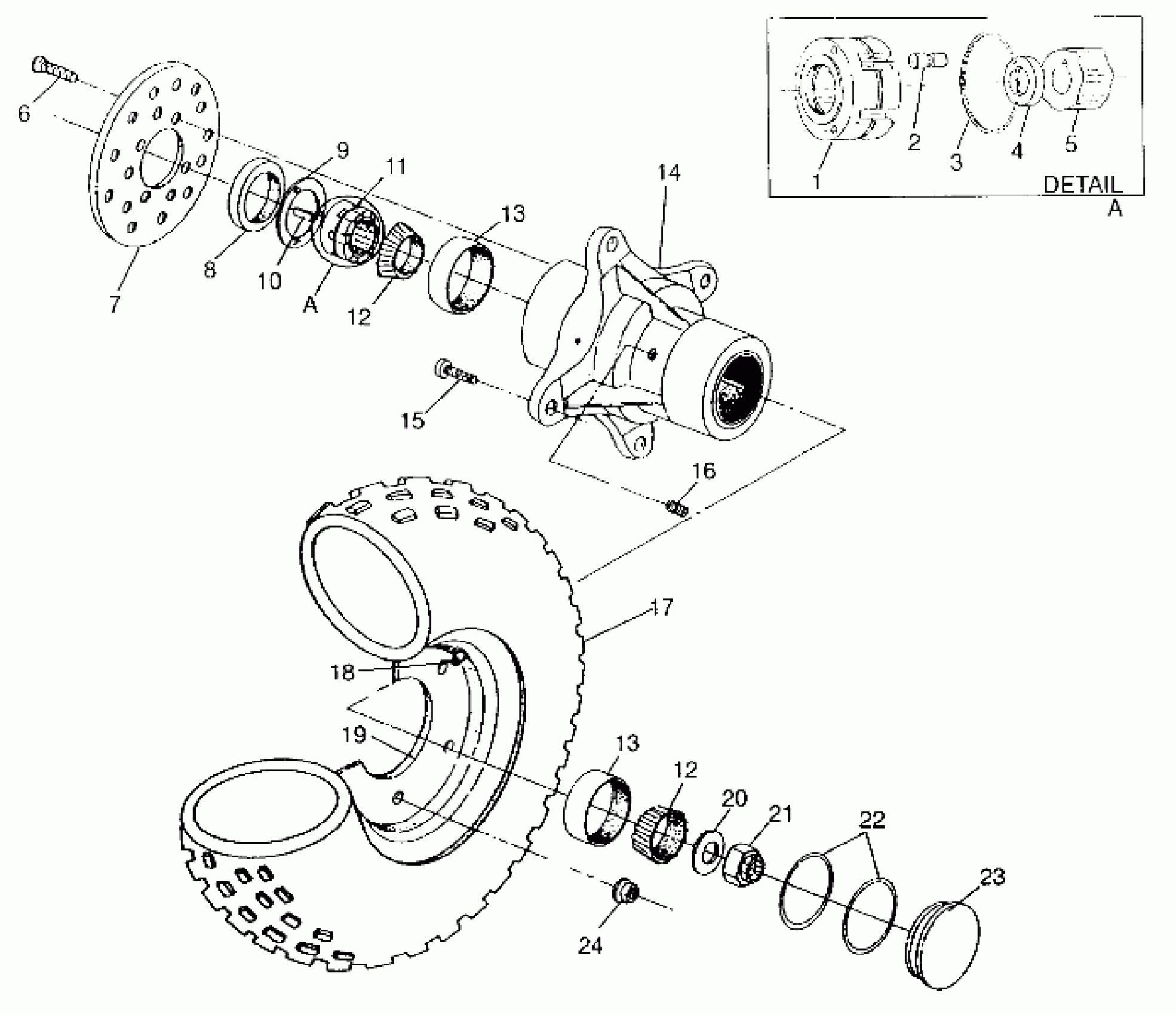

Polaris NORWEGIAN 400L 4X4 - N948140 FRONT WHEEL ASSEMBLY SWEDISH 4x4 400L S948140 (4926912691B006) Diagram

#

Description
Price

1

Cage, Roll

3250028

$218.56

2

ROLLS

3250010

$35.99

3

SPRING, GARTER

3250022

Unavailable

4

SPACER

3250026

Unavailable

5

CAM

3250027

Unavailable

6

BOLT(10)

7515321

$1.49

7

DISC, BRAKE Substituted by 5242935

5211326

$89.03

8

SEAL, FR. HUB

3610019

$35.99

9

Plate, Armature

5211148

$23.99

10

KEY

7721115

Unavailable

11

CLUTCH ASM,F.HUB,ELEC/MECH.

1520190

$339.99

12

BRG,TAPER.ROLL.CONE

3554506

$31.99

12

BRG,TAPER.ROLL.CONE

3554506

$31.99

13

BRG,TAPER,ROLL CUP

3554507

$31.99

13

BRG,TAPER,ROLL CUP

3554507

$31.99

14

HUB ASM,W/BRG.RACE (Incl. 8,13,15)

1520182

Unavailable

15

STUD(10)

7515523

$3.19

16

PLUG,PIPE

7052045

$12.79

17

TIRE,FR(25X8-12) (25x8x12)

5410568

Unavailable

17

TIRE,FR(25X8-12) Substituted by 5410947 (25x8x12)

5410907

Unavailable

18

VALVE-RIM

1525017

$5.59

19

RIM,FRT,6X12(SILVER) Substituted by 1520269-117

1520179-117

$90.87

20

WASHER(10)

5211101

Unavailable

21

NUT,RH THREAD

7543201

Unavailable

22

O RING

5410470

$2.41

23

CAP, HUB

5431368

$23.99

24

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59
