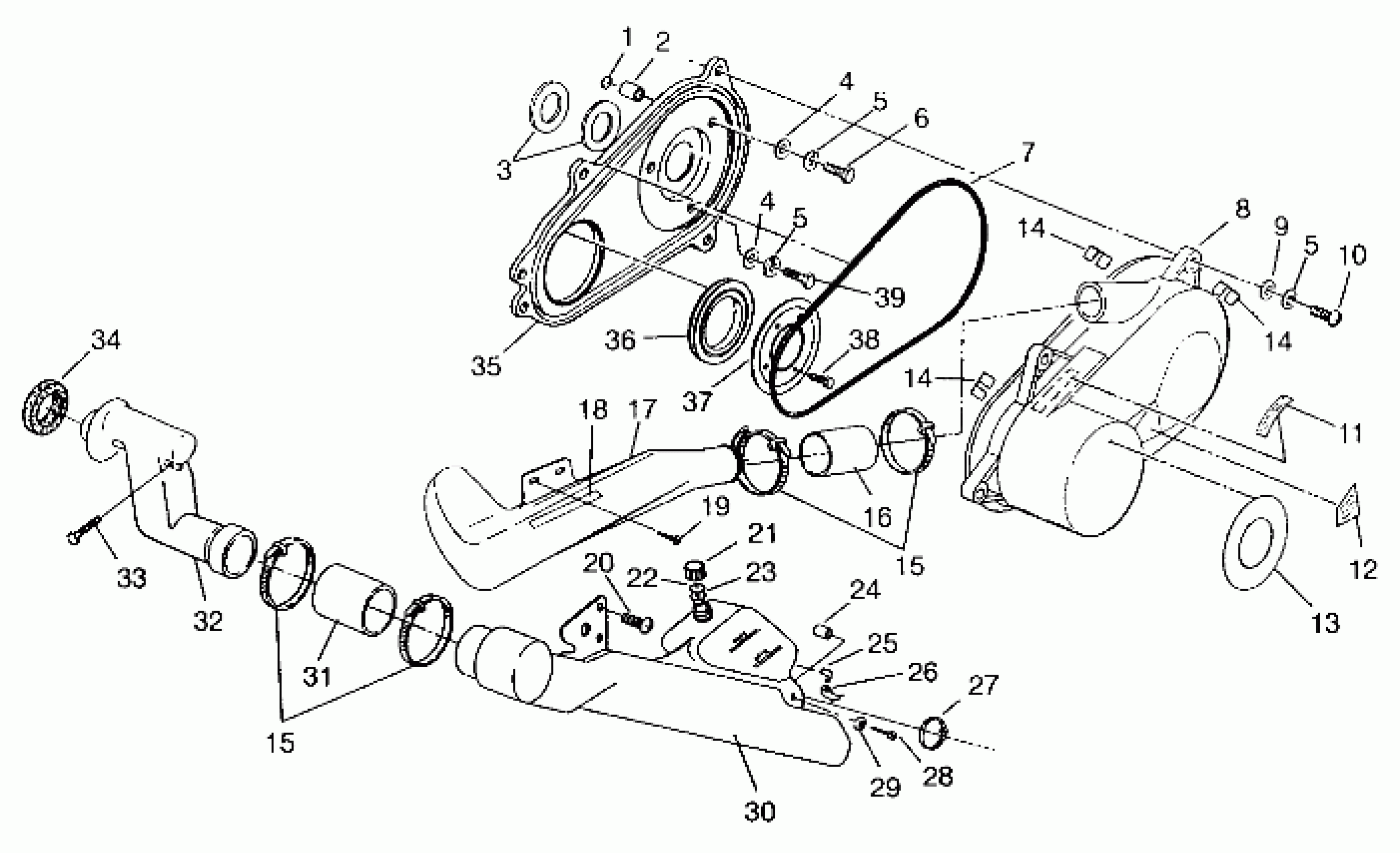

Polaris NORWEGIAN 400L 4X4 - N948140 CLUTCH COVER ASSEMBLY SWEDISH 4x4 400L S948140 (4926912691C011) Diagram

#

Description
Price

1

O RING

5410565

Unavailable

2

SPACER

5333062

Unavailable

3

SEAL,COVER CASE

5410489

$13.75

4

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

4

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

5

WASHER(10)

7552605

$5.69

5

WASHER(10)

7552605

$5.69

5

WASHER(10)

7552605

$5.69

6

BOLT(10)

7512277

$4.76

7

SEAL,CLUTCHCOVER

5521301

$32.37

8

COVER, CLUTCH,FRONT

5430771

Unavailable

9

WASHER(10) Substituted by 7558301

7555776

$1.19

10

BOLT(10)

7512281

$3.97

11

DECAL(CPSC),CLUTCH COVER Substituted by 7074946

7072787

Unavailable

12

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

7072789

Unavailable

13

DECAL, PVT [No Longer Available]

7072386

Unavailable

14

CLIP,CLUTCH COVER(10)

7670051

Unavailable

14

CLIP,CLUTCH COVER(10)

7670051

Unavailable

14

CLIP,CLUTCH COVER(10)

7670051

Unavailable

15

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

15

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

16

BOOT,CLUTCH INTAKE

5410421

$11.32

17

DUCT, AIR OUTLET, CLUTCH Substituted by 5432615

5431671

Unavailable

18

DECAL,'DEMAND-DRIVE'

7073454

Unavailable

19

SCREW(10)

7512252

Unavailable

20

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.17

21

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

22

GASKET-OVERFLOW CAP

5810279

$2.41

23

PLUG, OVERFLOW,(10)

5431096

$2.02

24

SPACER

5020577

$16.80

25

FITTING,90 DEGREE

7052065

$7.14

26

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$89.99

27

CLAMP, NARROW BAND(10)

7080511

$4.76

28

SCREW(10)

7512025

$4.76

29

WASHER(10)

7555783

$3.97

30

DOWNTUBE,DUAL INLET Substituted by 5432336

5431185

$133.56

31

BOOT, INTAKE

5410509

Unavailable

32

DUCT, INLET, TOP

5431261

$49.21

33

SCREW(10)

7512017

$4.76

34

SEAL, INTAKE

5810480

Unavailable

35

COVER,CLUTCH,INNER Substituted by 2200792

5431716

$309.99

36

Seal, Cover Case

5410575

$44.51

37

BRKT,RETAINER,SEAL

5222446-067

Unavailable

38

SCREW & WASHER(10)

3084205

$3.97

39

BOLT(10)

7512278

Unavailable
