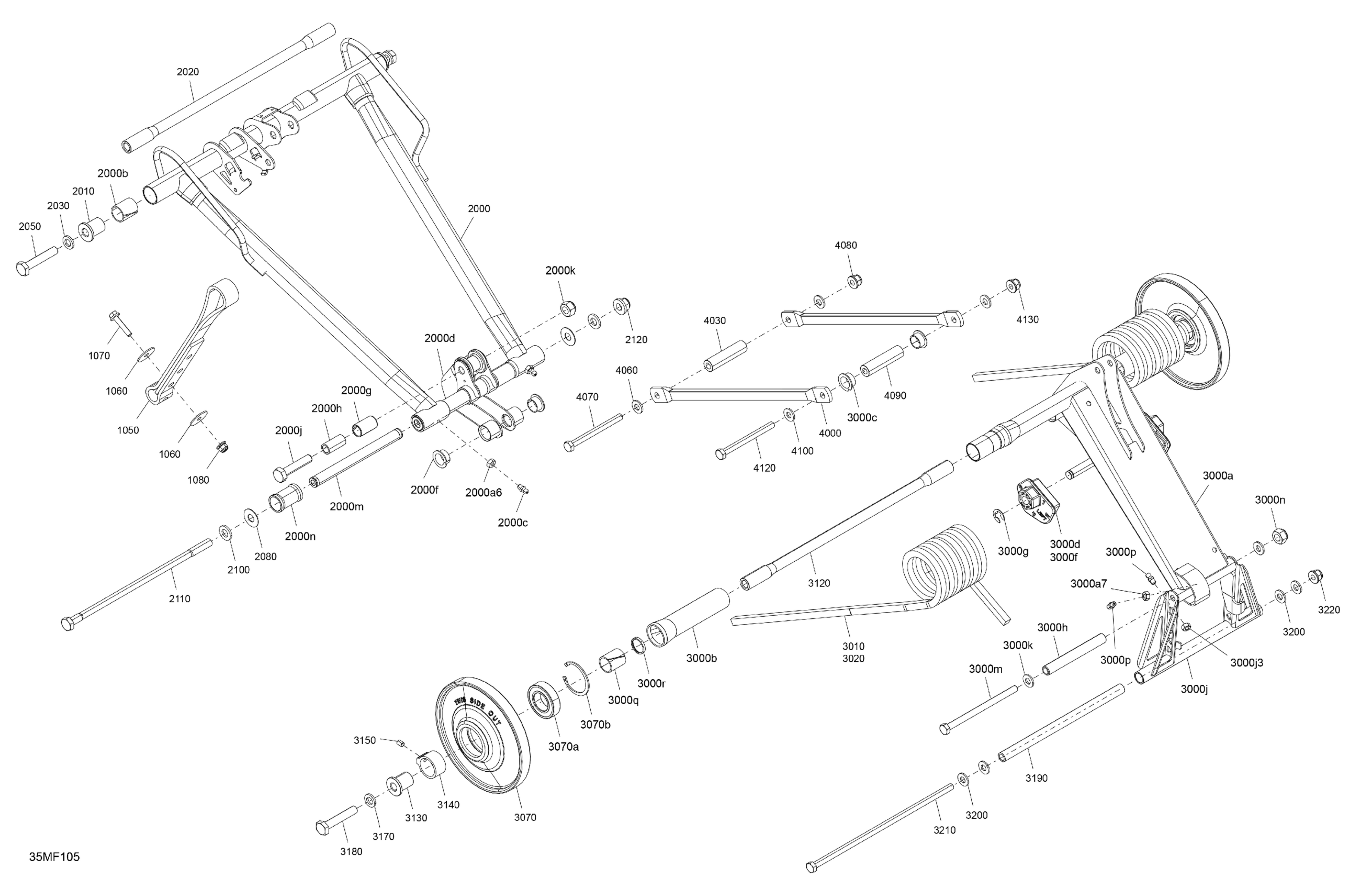

Ski-Doo TUNDRA - SPORT - 600 ACE - GMTB - Neo Yellow - 15X146X1.6C Track, 2026 Suspension - Rear - Upper Section Diagram

Description

Price

1050

Stopper Strap

503195313

$28.49

1060

Washer | Not Shown

503193995

$4.54

1070

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

1080

Hex. Flange Elastic Nut M6

233261466

$2.00

2000

Front Arm Ass'y | Includes 2000 to 2000n

503195197

$248.99

2000a6

Hexagonal Nut M6

232061404

$0.34

2000b

Extended Bushing

503191556

$7.83

2000c

Grease Fitting

408200700

$3.49

2000d

Rocker

503193464

$83.99

2000f

Swivel Bushing

503191555

$7.83

2000g

Bushing

503193037

$16.18

2000h

Bushing | Includes 240d to 240d1

503189282

$4.34

2000j

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

2000k

Elastic Locking Nut M10 X 1.5

233601416

$1.69

2000m

Lower Shaft

503196972

$68.99

2000n

Spacer

503194466

$22.49

2010

Bushing

503194970

$15.79

2020

Upper Shaft

503193441

$38.99

2030

Washer

503191926

$1.58

2050

Hex. Threadlock Screw M10 X 55

250001365

$8.11

2080

Washer

250200032

$5.08

2100

Washer

503192496

$0.77

2110

Bolt M10 X 251MM

503193227

$17.29

2120

Flange Elastic Nut M10

233201466

$3.17

3000a

Rear Arm | Includes 3000a to 3000a7

503192464

$201.49

3000a7

Hexagonal Nut M6

232061404

$0.34

3000b

Bushing

572080700

$17.39

3000c

Swivel Bushing

503191555

$7.83

3000d

LH Cam Adjuster

503191565

$16.49

3000f

RH Cam Adjuster

503191566

$16.49

3000g

E-Circlip

293370013

$0.65

3000h

Upper Axle, Pivot Arm

503144300

$11.65

3000j

Pivot Arm | Includes 3000j to 3000j3

503191209

$124.99

3000j3

Hexagonal Nut M6

232061404

$0.34

3000k

Washer

503192494

$3.17

3000m

Hex Screw M8 X 125

250001236

$0.85

3000n

Hex. Elastic Stop Nut M8

232581414

$0.56

3000p

Grease Fitting

408200700

$3.49

3000q

Extended Bushing

503191556

$7.83

3000r

Washer

503191651

$8.32

3010

LH Spring

503192081

$67.99

3020

RH Spring

503192080

$67.99

3070

Wheel 155 | Includes 3070 to 3070b

503191150

$48.49

3070a

Ball Bearing

503193548

$17.99

3070b

Retaining Ring

415129780

$15.79

3120

Upper Shaft

503193441

$38.99

3130

Bushing

503194970

$15.79

3140

Retaining Ring

503194366

$39.99

3150

Socket Set Screw M6 X 8

206260844

$1.48

3170

Flat Washer

250200143

$3.17

3180

Hex. Screw S.Grip M10 X 55

250000605

$8.11

3190

Pivot Arm Axle

503189156

$21.99

3200

Washer

503192494

$3.17

3210

Bolt M8 X 248mm

503192440

$30.49

3220

Elastic Flange Nut M8

233281466

$1.01

4000

Acceleration Link Rod

503192900

$28.49

4030

Axle

503193993

$17.39

4060

Washer

503192494

$3.17

4070

Screw M8 X 90

503193372

$4.44

4080

Elastic Flange Nut M8

233281466

$1.01

4090

Axle

503193993

$17.39

4100

Washer

503192494

$3.17

4120

Screw M8 X 90

503193372

$4.44

4130

Elastic Flange Nut M8

233281466

$1.01
