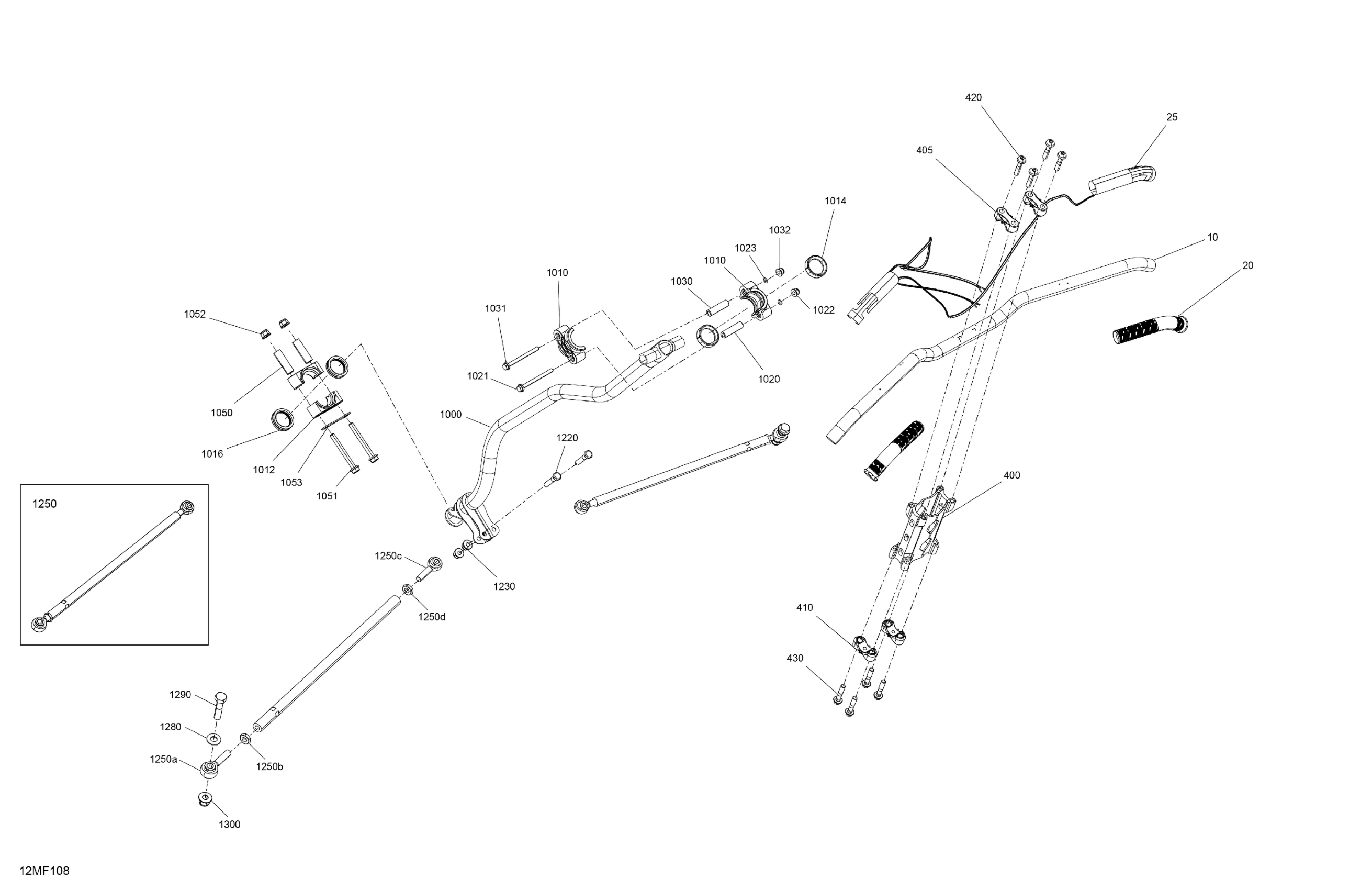

Ski-Doo TUNDRA - SPORT - 600 ACE - GMTB - Neo Yellow - 15X146X1.6C Track, 2026 Mechanic - Steering Diagram

Description

Price

Deep Black, Handlebar

506153377

$66.89

Grip 148 mm

506153134

$23.05

Heating Element 28W

506153403

$36.89

400

Riser Kit 145

860201718

$69.99

405

Steering Support

506152894

$12.48

410

Steering Support

506152894

$12.48

420

Button Head Torx Screw M8 X 38

250000904

$1.74

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

$1.74

1000

Main Tube

506153014

$196.12

1010

Upper Half Housing

506152219

$1.68

1012

Lower Half Housing

506153048

$5.57

1014

Upper Vibration Ring

506152292

$0.72

1016

Lower Vibration Ring

506152518

$4.52

1020

Housing Bushing

506152297

$10.23

1021

Hex. Flange Screw M6 x 75

250001114

$3.61

1022

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1023

O-Ring

293300123

$1.00

1030

Housing Bushing

506152297

$10.23

1031

Hex. Flange Screw M6 x 75

250001114

$3.61

1032

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1050

Housing Bushing

506152937

$10.23

1051

Hex. Flange Screw M8 X 70

207687044

$6.11

1052

Hex. Elastic Flange Nut M8

233281416

$1.25

1053

Stopper Plate

506152938

$10.23

1220

Hex. Screw M8 X 40

207084044

$0.92

1230

Hex. Elastic Flange Nut M8

233281416

$1.25

1250

Tie Rod Ass'y | Includes 1250 to 1250d

506153103

$69.20

1250a

LH Thread Ball Joint

506152081

$39.97

1250b

LH Threaded Hex. Jam Nut M10

250100016

$0.72

1250c

RH Threaded Ball Joint

506152019

$39.97

1250d

RH Threaded Hex. Jam Nut M10

732610010

$0.72

1280

Washer

506152582

$4.42

1290

Hex. Screw M10 X 45

207004544

$1.65

1300

Hex. Flange Elastic M10 x 1.5

233201464

$6.18
