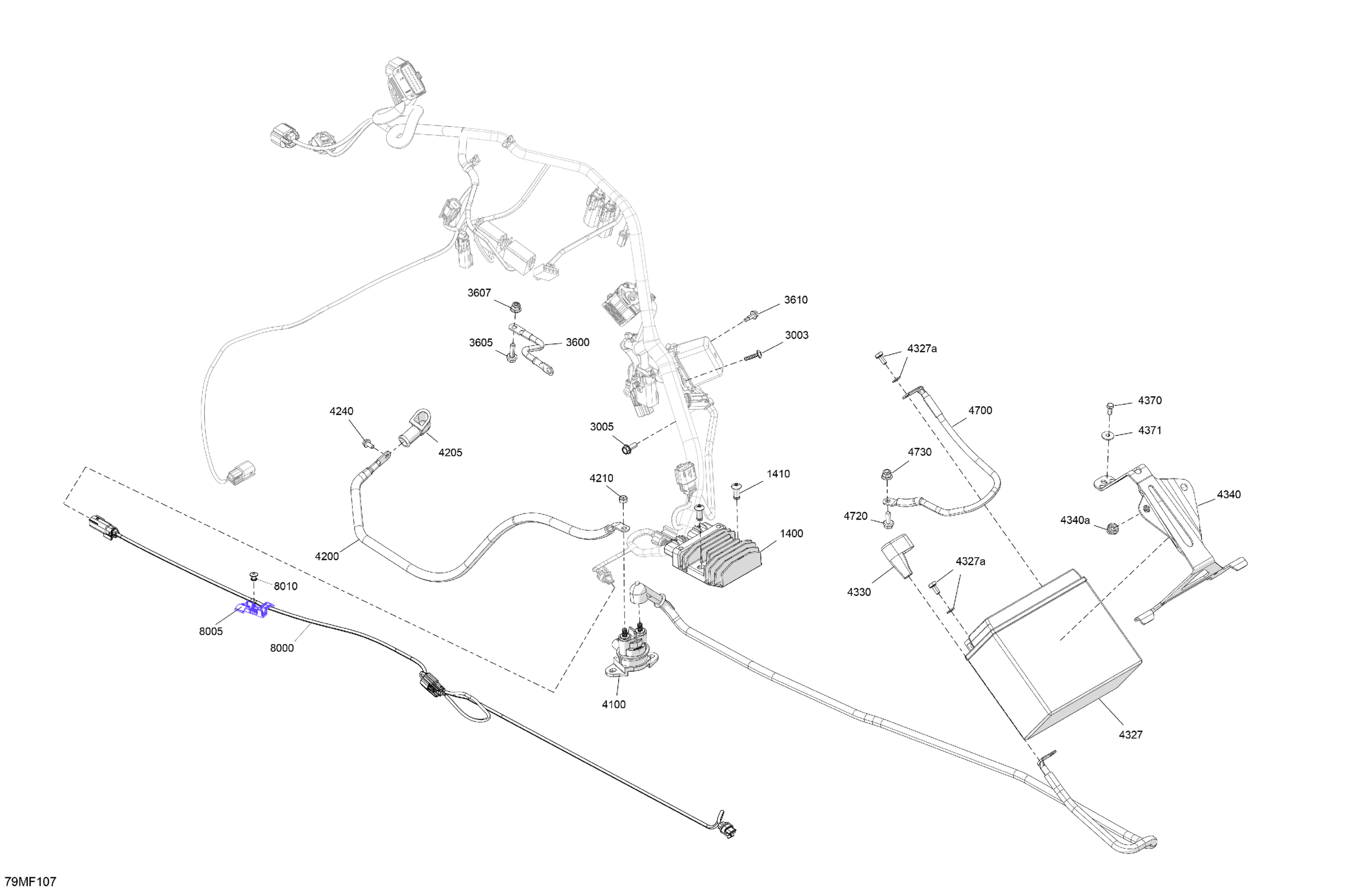

Ski-Doo TUNDRA - LE - 600 EFI - GDTA - Deep Black - 16X154X1.5CH Track, 2026 Electric - Lower Section Diagram

Description

Price

1400

Voltage Regulator

710010539

$109.99

1410

Monobolt Rivet 6.4

293150182

$3.19

3003

Torx Screw Truss Head K50X20 T20

250000760

$2.19

3005

Hex. Flange Screw M6 X 16

250001062

$1.59

3600

Ground Wire

515178248

$25.99

3605

Hex. Flange Screw M6 X 20

207662044

$2.09

3607

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

3610

Hex. Flange Screw M5 X 16

250000911

$1.49

4100

Starter Relay

278003012

$43.99

4200

Positive Cable

515178919

$31.99

4205

Protector Cap

710000495

$11.49

4210

Elastic Stop Nut M6

232561414

$1.78

4240

Hex. Flange Screw M5 X 10

207551044

$4.19

4327

12 Volt 20ah Battery | Includes 3k to 3k1

715900973

$121.08

4327a

Battery Bolt Kit

715500541

$3.39

4330

Protector Cap | STD

710001817

$11.49

4340

Battery Strip | Includes 4340 to 4340a

515177870

$19.99

4340a

Insert

293450275

$12.99

4370

Hex. Screw M5 X 12

207151244

$1.49

4371

Washer | DS 650 X

391301600

$1.49

4700

Ground Wire

515178155

$27.99

4720

Hex. Flange Screw M6 X 16

207661644

$1.49

4730

Elastic Flange Nut M6 X 1.0

233261416

$2.19

8000

Taillight Wiring Harness | Includes 8000 to 8000a

515179659

$27.99

8005

Wiring Harness Support

515179630

$11.49

8010

Pop Rivet 3/16 X ,425

293150293

$1.49
