Partiron

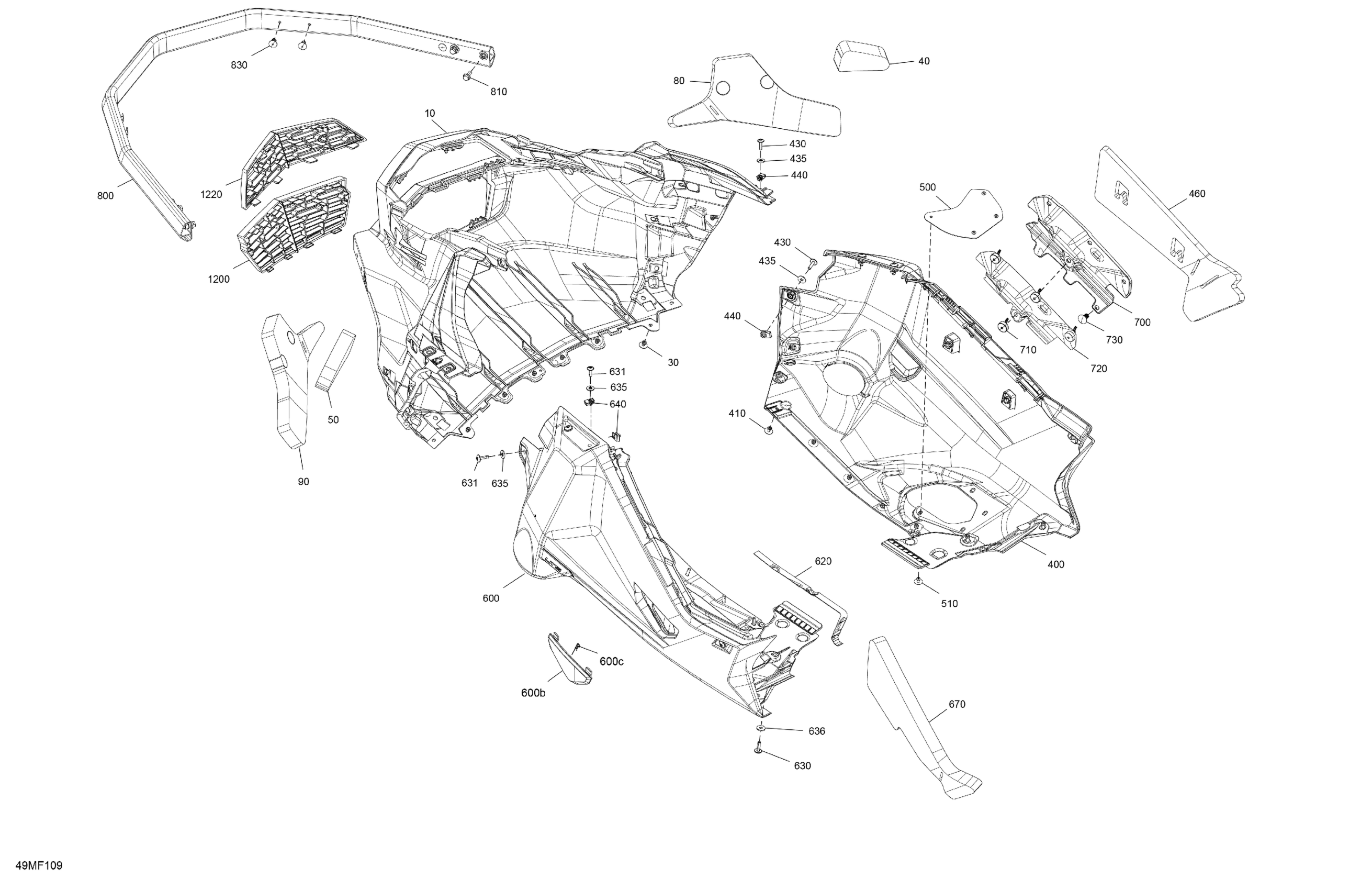

Ski-Doo TUNDRA - LE - 600 EFI - GDTA - Deep Black - 16X154X1.5CH Track, 2026 Body - Bottom Pan Diagram

#

Description
Price

10

Deep Black, Front Bottom Pan

502007725

$109.99

30

Black, Pop Rivet 3/16 X ,550

293150292

$1.49

40

RH Upper Front Bottom Pan Foam

502007937

$2.39

50

LH Upper Front Bottom Pan Foam

502007938

$2.39

80

RH Front Lower Bottom Pan Foam

502007941

$4.79

90

LH Front Lower Bottom Pan Foam

502007942

$4.79

400

RH Bottom Pan

502007882

$93.99

410

Black, Pop Rivet 3/16 X ,550

293150292

$1.49

430

Torx Truss M5 X 20

250000586

$4.49

435

Washer

517307442

$1.49

440

Panel Nut M5 X 0.8

250000958

$4.29

460

RH Rear Bottom Pan Foam

502007944

$14.99

500

Plate

502007868

$2.19

510

Black, Pop Rivet 3/16 X ,425

293150291

$1.49

600

Deep Black, LH Bottom Pan | Includes 600 to 600c

502007884

$93.99

600b

Bottom Pan Door

502007676

$39.99

600c

Hairpin Cotter

269800431

$1.49

620

Gasket, Neoprene 2000Mm Long

219704476

$15.99

630

Screw Torx M5 X 20

250001232

$1.49

631

Torx Truss M5 X 20

250000586

$4.49

635

Washer

517307442

$1.49

636

Washer M5

250200025

$1.49

640

Panel Nut M5 X 0.8

250000958

$4.29

670

LH Rear Bottom Pan Foam

502007946

$14.99

700

Heat Shield

502008087

$7.29

710

Stopper

502008752

$2.09

720

Reflective Sheet

502008156

$4.89

730

Black Dart

293730010

$1.49

800

Front Bumper

502008079

$109.99

810

Hex. Flange Screw M6 X 16

207661644

$1.49

830

Black, Pop Rivet 3/16 X ,550

293150292

$1.49

1200

Lower Prefilter Grille

502007979

$26.99

1220

Upper Prefilter Grille

502007980

$22.99
