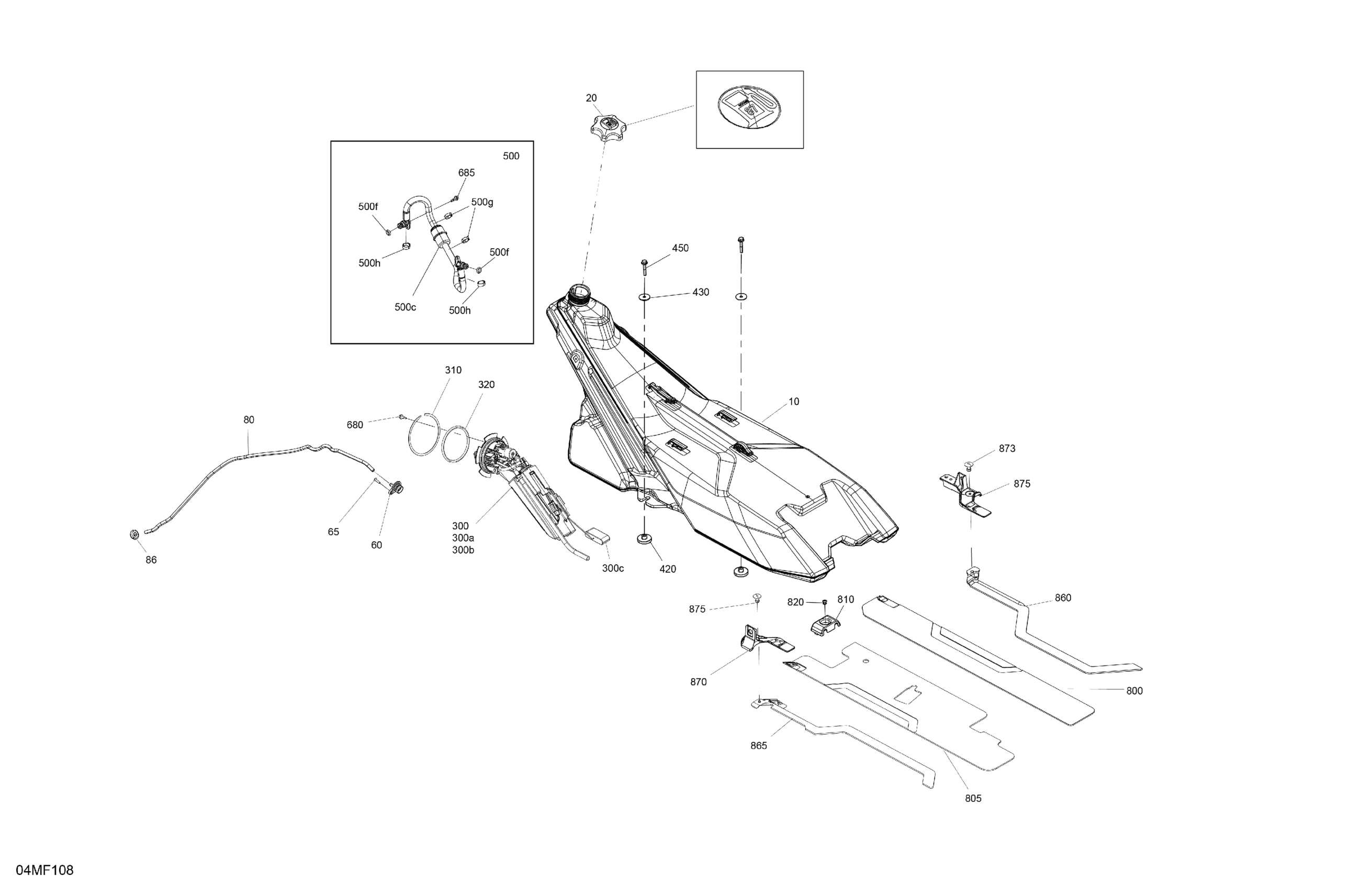

Ski-Doo TUNDRA - LE - 600 EFI - GDTA - Deep Black - 16X154X1.5CH Track, 2026 Engine - Fuel Diagram

Description

Price

Fuel Tank

513034158

$261.91

Fuel Tank Cap

513034168

$24.60

Check Valve

513033849

$34.30

Truss Torx Screw K40 X 16

250000918

$2.00

Polyurethane Hose 10000Mm Long

219704410

$52.96

Grommet

705003264

$3.94

300

Fuel Pump Ass'y | Includes 300 to 300c

513034080

$249.97

300a

Canister

415130507

$78.33

300b

Filter

415130508

Unavailable

300c

Fuel Level Sensor

415130726

$132.81

310

Circlip

513034097

$12.45

320

O-Ring

513033862

$17.13

420

Bushing

513034147

$7.30

430

Washer | Not Shown

503193995

$4.25

450

Hex. Flange Screw M6 X 35

250001255

$2.12

500

Hose Ass'y | Includes 500 to 500h

513034254

$68.63

500c

Fuel Filter

513034047

$21.77

500f

O-Ring

513033668

$9.16

500g

Crimp Clamp, 15.3-706R

293650047

$3.03

500h

Crimp Clamp

293650053

$2.78

680

Hex. Flange Screw M5 X 16

250000911

$0.81

685

Hex. Flange Screw M5 X 16

250000911

$0.81

800

Insulated Foam

513033913

$5.09

805

LH Foam

513034165

$14.90

810

Guide

513034155

$2.06

820

Pop Rivet 3/16 X ,425

293150293

$0.30

860

Foam

513033915

$17.13

865

Foam

513033916

$4.30

870

LH Trim

513034242

$7.57

873

RH Trim

513034243

$7.57

875

Black, Pop Rivet 3/16 X ,550

293150292

$0.99
