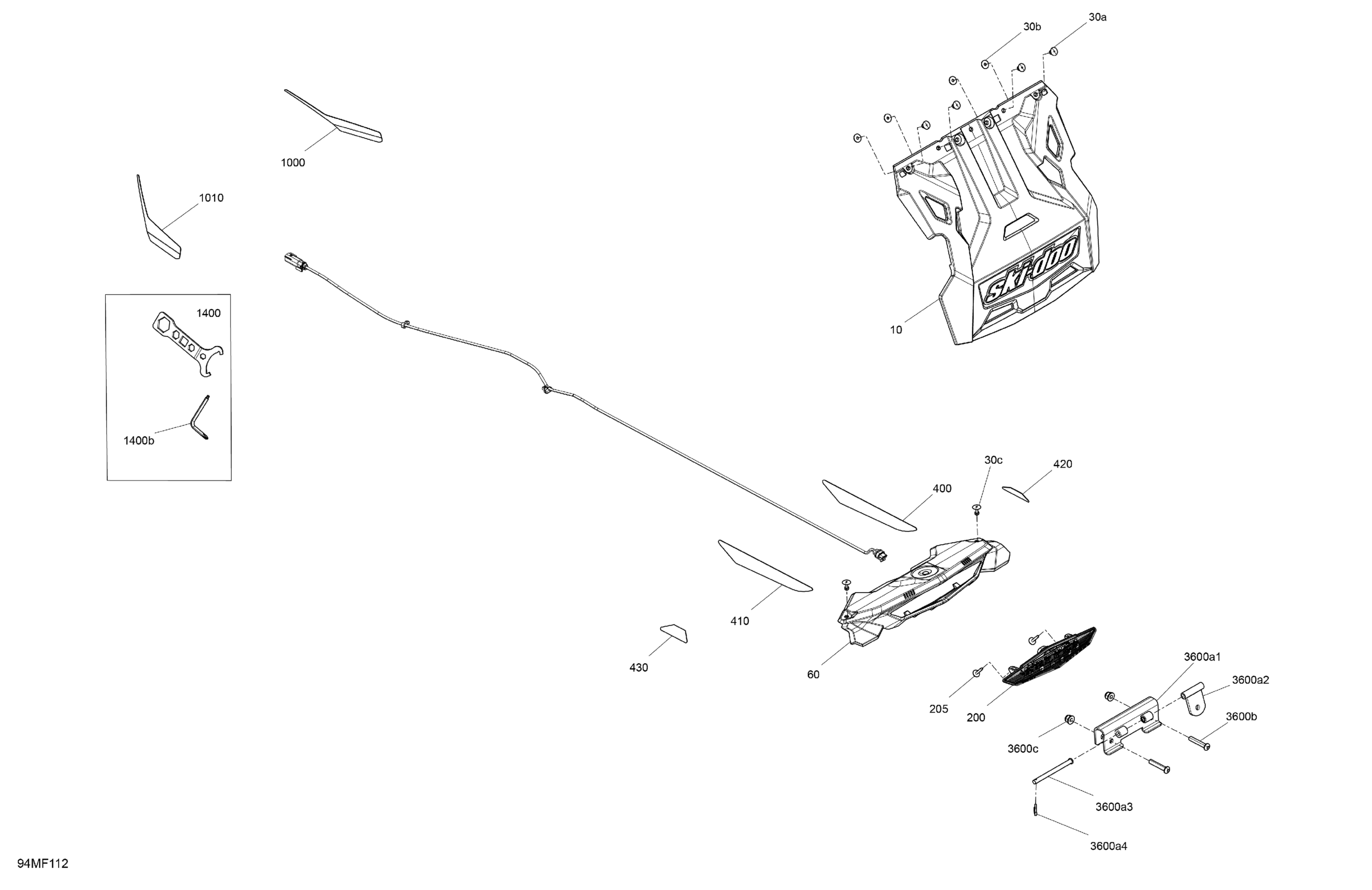

Ski-Doo TUNDRA - LE - 600 ACE - GNTA - Deep Black - 16X154X1.5CH Track, 2026 Miscellaneous - Utilities Diagram

Description

Price

Snow Guard

520002106

$132.28

30a

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

30b

Washer

517124300

$0.16

30c

Black, Ornit Rivet 3/16 X ,800

293150306

$1.08

Light Fairing

520001487

$19.20

200

Tail Light

520002710

$75.99

205

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

400

Red, RH Rear Reflector

520001900

$16.89

410

Red, LH Rear Reflector

520001901

$16.89

420

Red, RH Rear Reflector

520001842

$4.65

430

Red, LH Rear Reflector

520001860

$4.65

1000

RH Front Reflector

520002444

$7.88

1010

LH Front Reflector

520002443

$7.88

1400

Tool Kit | Includes 1400 to 1400b

520001767

$51.99

1400b

Key

520001815

$11.99

3600a1

Support

511000768

$29.20

3600a2

Hitch Plate Welded

511000521

$14.54

3600a3

Lock Pin

511001451

$8.57

3600a4

Cotter Pin

371800200

$0.51

3600b

Socket Head Screw M8 X 45

205484566

$1.51

3600c

Elastic Flange Nut M8

233281466

$0.83
