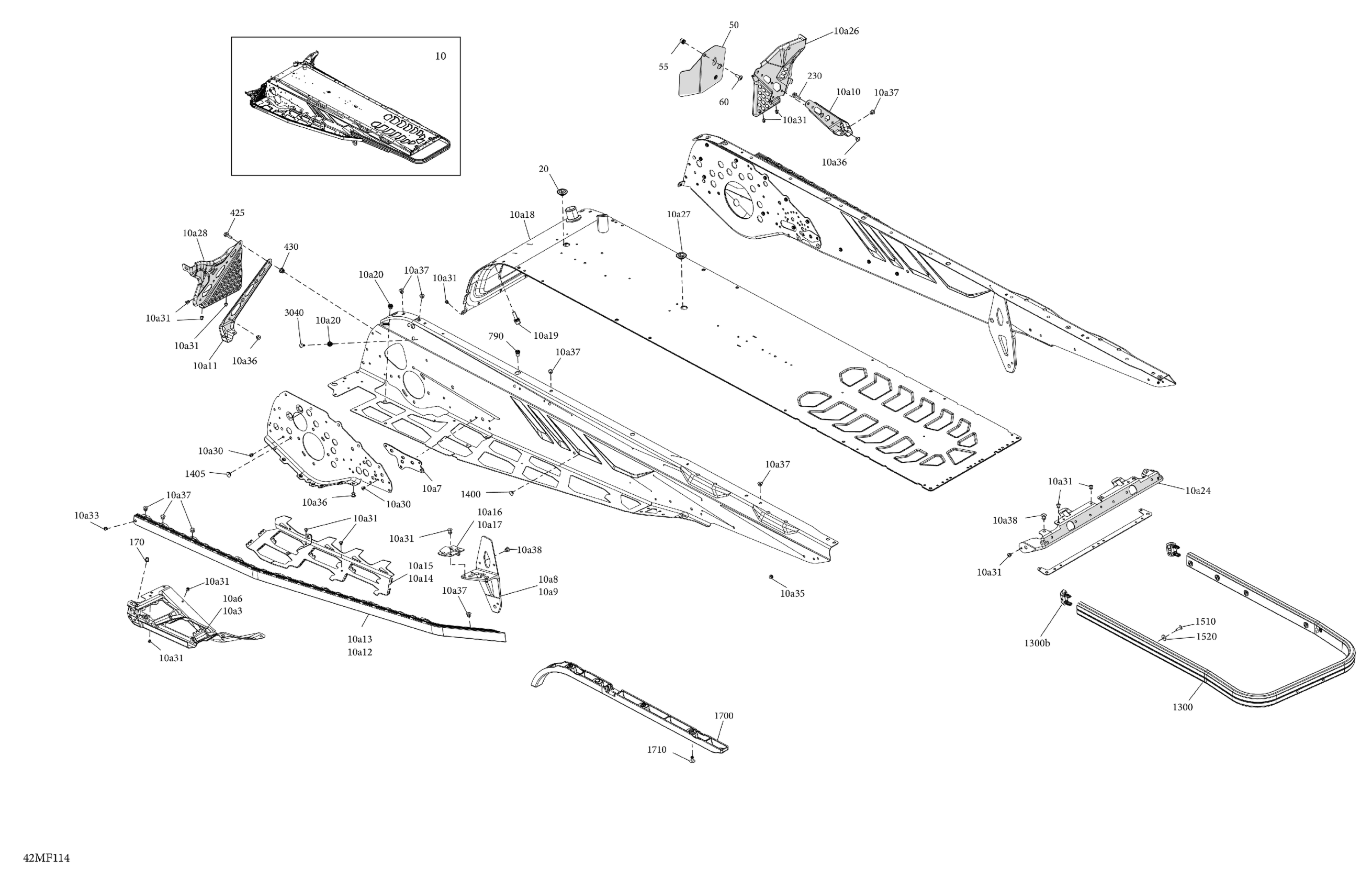

Ski-Doo North America - TUNDRA - LE - 600 ACE - GNTA - Deep Black - 16X154X1.5CH Track, 2026 06- Frame - System - Rear Section Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 154

415131004

$3.00

10a3

Deep Black, RH Footrest Reinforcement

518332803

$86.99

10a6

Deep Black, LH Footrest Reinforcement

518332802

$18.49

10a7

Front Suspension Arm Reinforcement

518336141

$17.99

10a8

LH Bracket

518329632

$45.99

10a9

RH Rear Suspension Support

518334407

$69.99

10a10

Stirrup Reinforcement

518334507

$21.99

10a11

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10a12

RH Roller

518328451

$194.99

10a13

LH Roller

518328452

$194.99

10a14

RH Footrest Reinforcement

518336064

$35.99

10a15

LH Footrest Reinforcement

518336063

$35.99

10a16

LH Reinforcement Plate

518329088

$3.39

10a17

RH Reinforcement Plate

518329089

$4.59

10a18

Radiator Tunnel 154

518335129

$709.99

10a19

Protruding Stud M8 x 22

250300652

$4.44

10a20

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10a24

Rear Cap

518328990

$22.49

10a26

RH Footrest

518334509

$22.49

10a27

Black, Plug

293730052

$9.19

10a28

LH Foot Protector

518334305

$23.99

10a30

Rivet Avibulb 3/16

293150203

$2.09

10a31

Avibulb Rivet 4.8 X 12.1

293150237

$2.09

10a33

Henrob Rivet

293150245

$1.69

10a35

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10a36

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10a37

Rivet Ornit 6,5 X 16.5

293150267

$2.40

10a38

Ornit Rivet 6,5 X 14.5

293150266

$2.40

20

Black, Plug

293730052

$9.19

50

Heat Shield

518331823

$10.49

55

Insert

293450275

$12.99

60

Torx Head Screw M6 X 16

250000717

$2.11

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

790

Insert

293450278

$4.49

1300

Black, Hitch Bumper 154 | Includes 1300 to 1300b

860201250

$148.99

1300b

Bumper Cap

520001629

$0.98

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

1700

Front Protector

518329982

$18.49

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

3040

Dart

293730079

$2.09

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37
