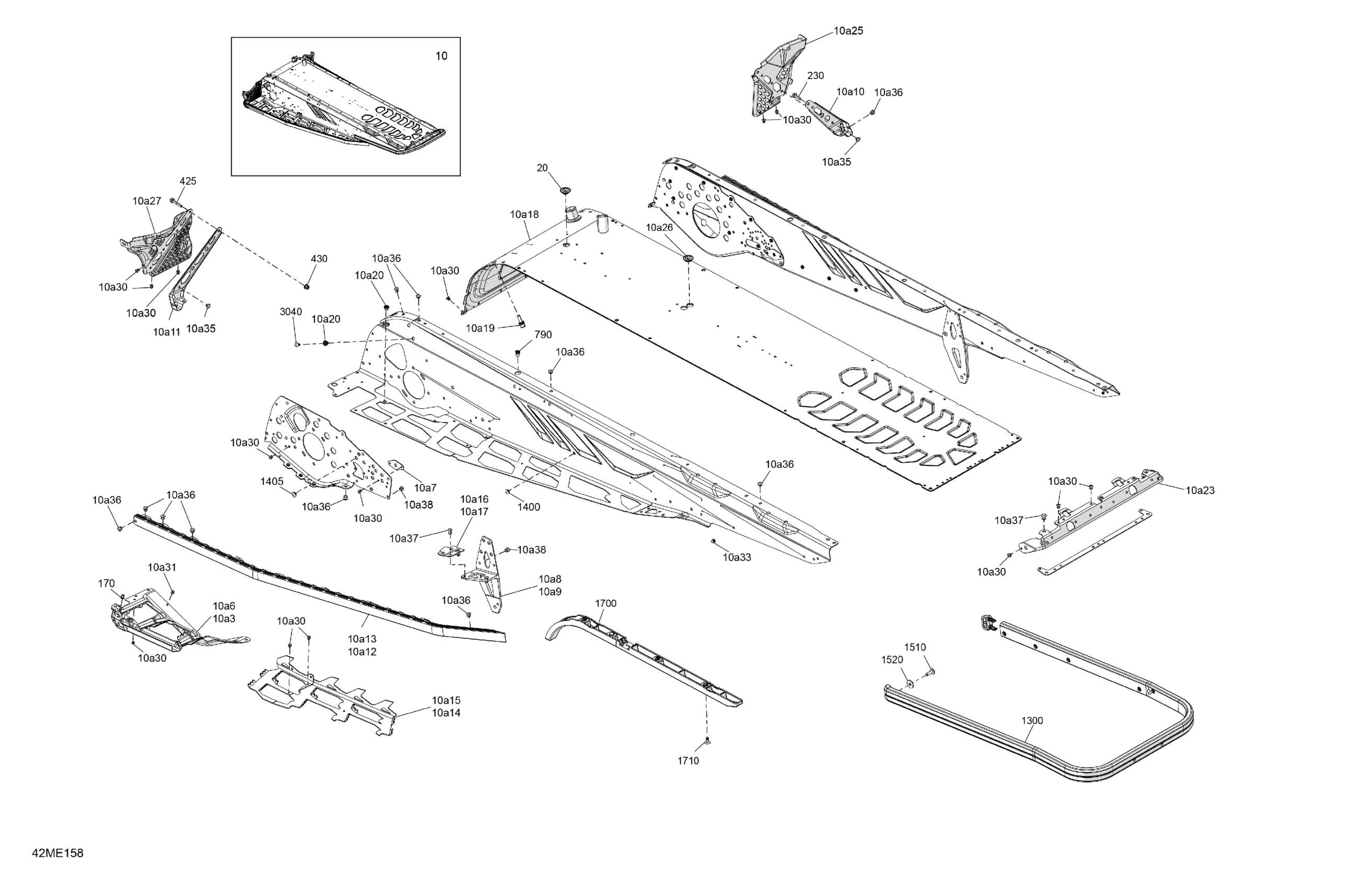

Ski-Doo TUNDRA - 600 EFI - SPORT - GKSA - Neo Yellow - 146X15X1.6C Track - 2025 Frame - System - Rear Section Diagram

Chassis Tunnel Module 146 | Includes 10 to 10a39

415130869

$3.00

Deep Black, RH Footrest Reinforcement

518332803

$86.99

Deep Black, LH Footrest Reinforcement

518332802

$18.49

Reinforcement Plate

518326647

$4.69

LH Rear Suspension Support

518334390

$45.99

RH Rear Suspension Support

518334391

$94.99

Stirrup Reinforcement

518334507

$21.99

Deep Black, LH Chassis Reinforcement

518332924

$21.99

RH Roller

518328451

$194.99

LH Roller

518328452

$194.99

Central Rear Tunnel Reinforcement

518334842

$35.99

LH Central Reinforcement Tunnel

518334843

$35.99

LH Reinforcement Plate

518329088

$3.39

RH Reinforcement Plate

518329089

$4.59

Radiator Tunnel 146

518335127

$739.99

Protruding Stud M8 x 22

250300652

$4.44

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Rear Cap

518328990

$22.49

RH Footrest

518334509

$22.49

Black, Plug

293730052

$9.19

LH Foot Protector

518334305

$23.99

Rivet Avibulb 3/16

293150203

$2.09

Avibulb Rivet 4.8 X 12.1

293150237

$2.09

Henrob Rivet

293150245

$1.69

Rivet Ornit 6,5 X 10.5

293150264

$2.40

Rivet Ornit 6,5 X 12.5

293150265

$2.40

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

Insert M5 - 0.8

293450267

$4.59

Hex. Flange Screw M6 X 20

207562056

$2.11

Hex. Flange Screw M6 X 20

207562056

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Insert

293450278

$4.49

Black, Hitch Bumper Black 146

518329797

$127.49

Black, Dart 8 mm

293730047

$2.21

Black, Dart 10 mm

293730060

$4.55

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Flat Washer

224061201

$1.37

Front Protector

518329982

$18.49

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

Dart

293730079

$2.09
