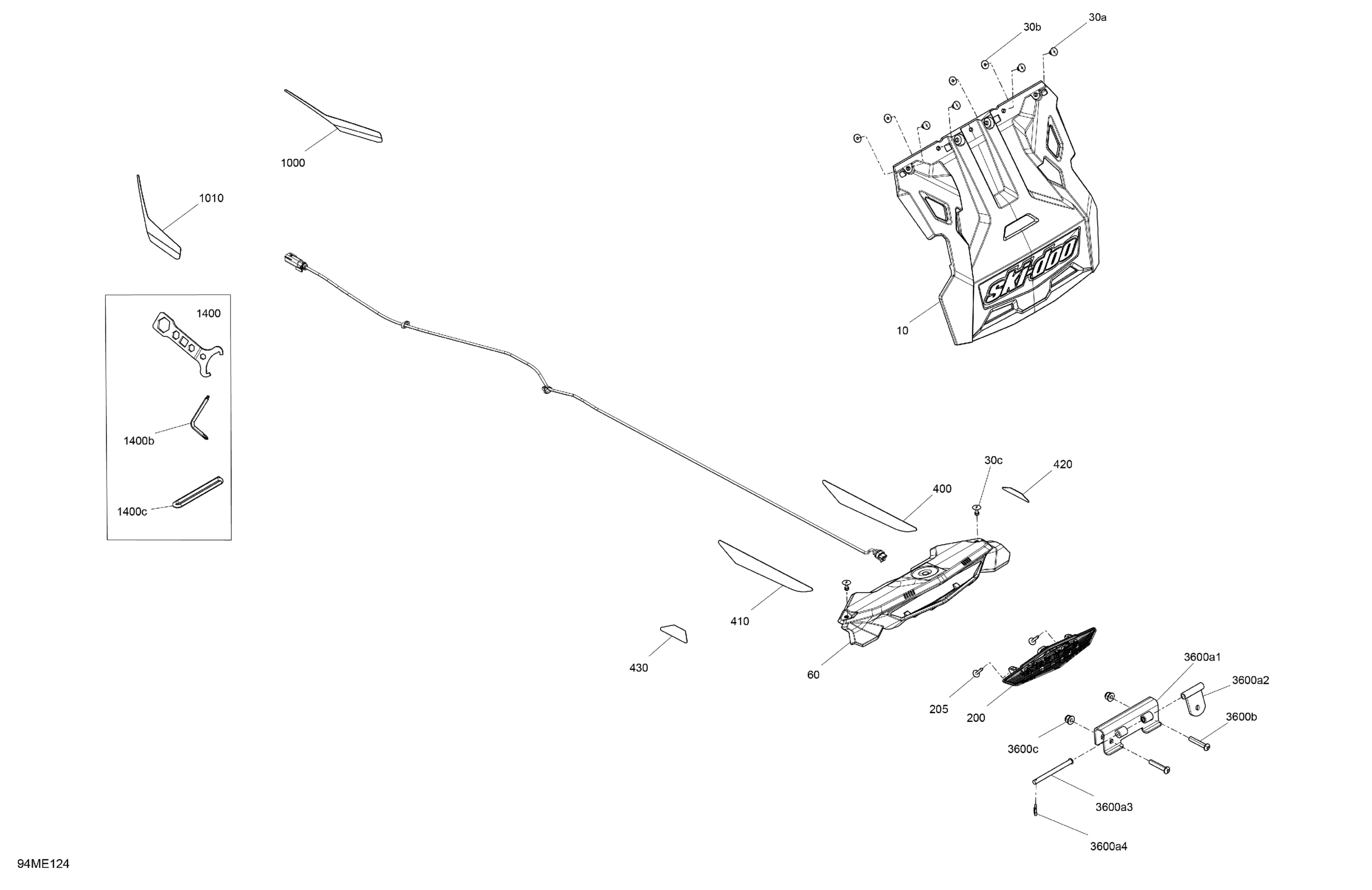

Ski-Doo TUNDRA - 600 EFI - LE - GDSB - Deep Black - 154X16X1.5CH Track - 2025 Miscellaneous - Utilities Diagram

Description

Price

Snow Guard

520002106

$137.49

30a

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

30b

Washer

517124300

$0.19

30c

Black, Ornit Rivet 3/16 X ,800

293150306

$1.15

Light Fairing

520001487

$20.99

200

Tail Light

520002710

$78.49

205

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

400

Red, RH Rear Reflector

520001900

$19.99

410

Red, LH Rear Reflector

520001901

$19.99

420

Red, RH Rear Reflector

520001842

$4.99

430

Red, LH Rear Reflector

520001860

$4.99

1000

RH Front Reflector

520002444

$9.19

1010

LH Front Reflector

520002443

$9.19

1400

Tool Kit | Includes 1400 to 1400c

520001814

$27.99

1400b

Key

520001815

$11.79

1400c

Rope Starter

529017500

$1.17

3600a1

Support

511000768

$31.99

3600a2

Hitch Plate Welded

511000521

$16.33

3600a3

Lock Pin

511001451

$9.49

3600a4

Cotter Pin

371800200

$0.53

3600b

Socket Head Screw M8 X 45

205484566

$1.58

3600c

Elastic Flange Nut M8

233281466

$1.01
