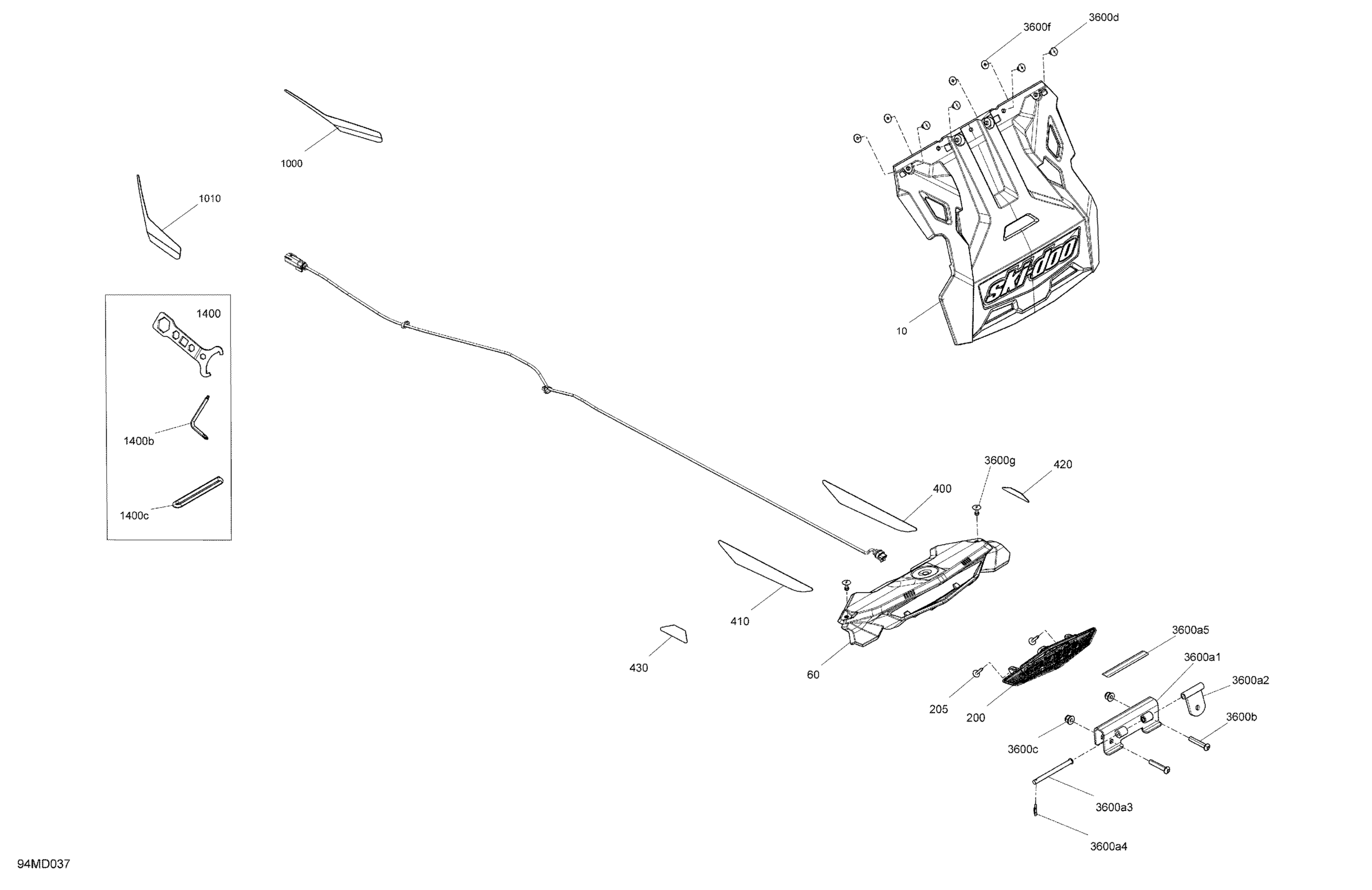

Ski-Doo TUNDRA 600 EFI - LE - GDRA - Deep Black - 154X16X1.5CH Track, 2024 Miscellaneous - Utilities Diagram

Description

Price

Snow Guard

520002106

$128.33

Light Fairing

520001487

$18.63

200

Tail Light

520002710

$74.60

205

Plastite Screw Type K-40, M4 X 25

250000101

$3.30

400

Red, RH Rear Reflector

520001900

$16.39

410

Red, LH Rear Reflector

520001901

$16.39

420

Red, RH Rear Reflector

520001842

$4.51

430

Red, LH Rear Reflector

520001860

$4.51

1000

RH Front Reflector

520002444

$7.64

1010

LH Front Reflector

520002443

$7.64

1400

Tool Kit | Includes 1400 to 1400c

520001814

$28.99

1400b

Key

520001815

$11.99

1400c

Rope Starter

529017500

$1.19

3600a1

Support

511000768

$28.33

3600a2

Hitch Plate Welded

511000521

$14.10

3600a3

Lock Pin

511001451

$8.31

3600a4

Cotter Pin

371800200

$0.49

3600a5

WARNING DECAL, SECURITY - Call your local BRP dealership

516004568

Unavailable

3600b

Socket Head Screw M8 X 45

205484566

$1.46

3600c

Elastic Flange Nut M8

233281466

$0.96

3600d

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

3600f

Washer

517124300

$0.18

3600g

Pop Rivet 3/16"

293150100

$1.04
