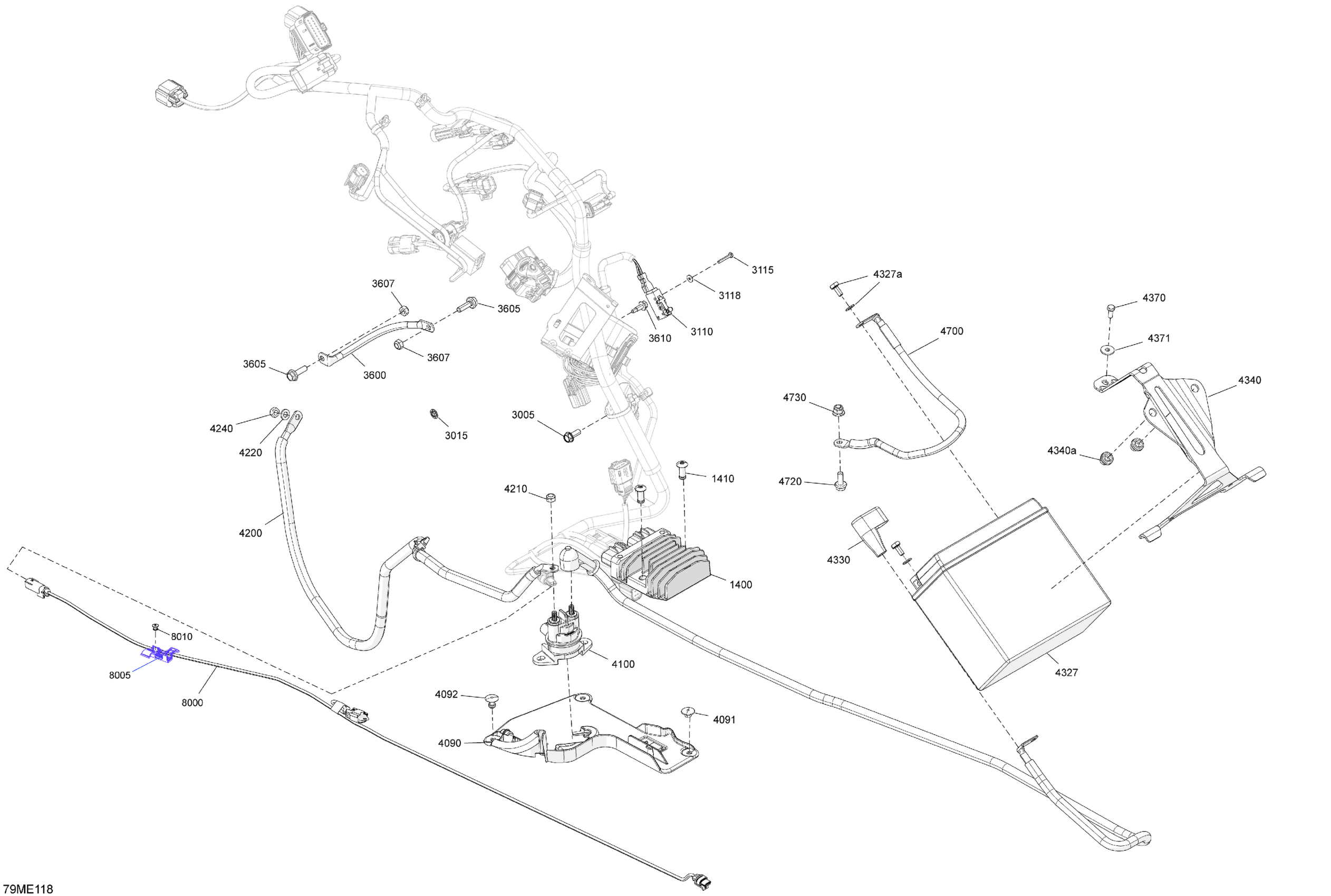

Ski-Doo North America - TUNDRA - 600 ACE - LE - GNSA - Deep Black - 154X16X1.5CH Track - 2025 08- Electric - Lower Section Diagram

Voltage Regulator | Package-DPS, Model-Europe

710005569

$103.99

Monobolt Rivet 6.4

293150182

$3.09

Hex. Flange Screw M6 X 16

250001062

$1.57

Push Nut

250001189

$1.37

Switch Ass'y

515177460

$46.99

Hex Screw M3 X 20

207132044

$2.11

Flat Washer M3, Stainless

234032600

$0.55

Ground Wire

515178338

$16.49

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M5 X 16

250000911

$0.85

Starter Relay Support

515178244

$3.49

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

Starter Relay

278003012

$42.49

Battery Wire

515178336

$47.99

Elastic Stop Nut M6

232561434

$1.99

Flat Washer 6 mm

234061410

$1.36

Elastic Stop Nut M6

232561434

$1.99

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

Battery Bolt Kit

250000282

$7.29

Protector Cap | STD

710001817

$11.12

Battery Strip | Includes 4340 to 4340a

515177870

$19.99

Insert

293450275

$12.99

Hex. Screw M5 X 12

207151244

$0.90

Washer | DS 650 X

391301600

$0.48

Ground Wire

515178155

$26.99

Hex. Flange Screw M6 X 16

207661644

$0.74

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Taillight Wiring Harness | Includes 8000 to 8000a

515179659

$26.99

Wiring Harness Support

515179630

$11.01

Pop Rivet 3/16 X ,425

293150293

$0.35
