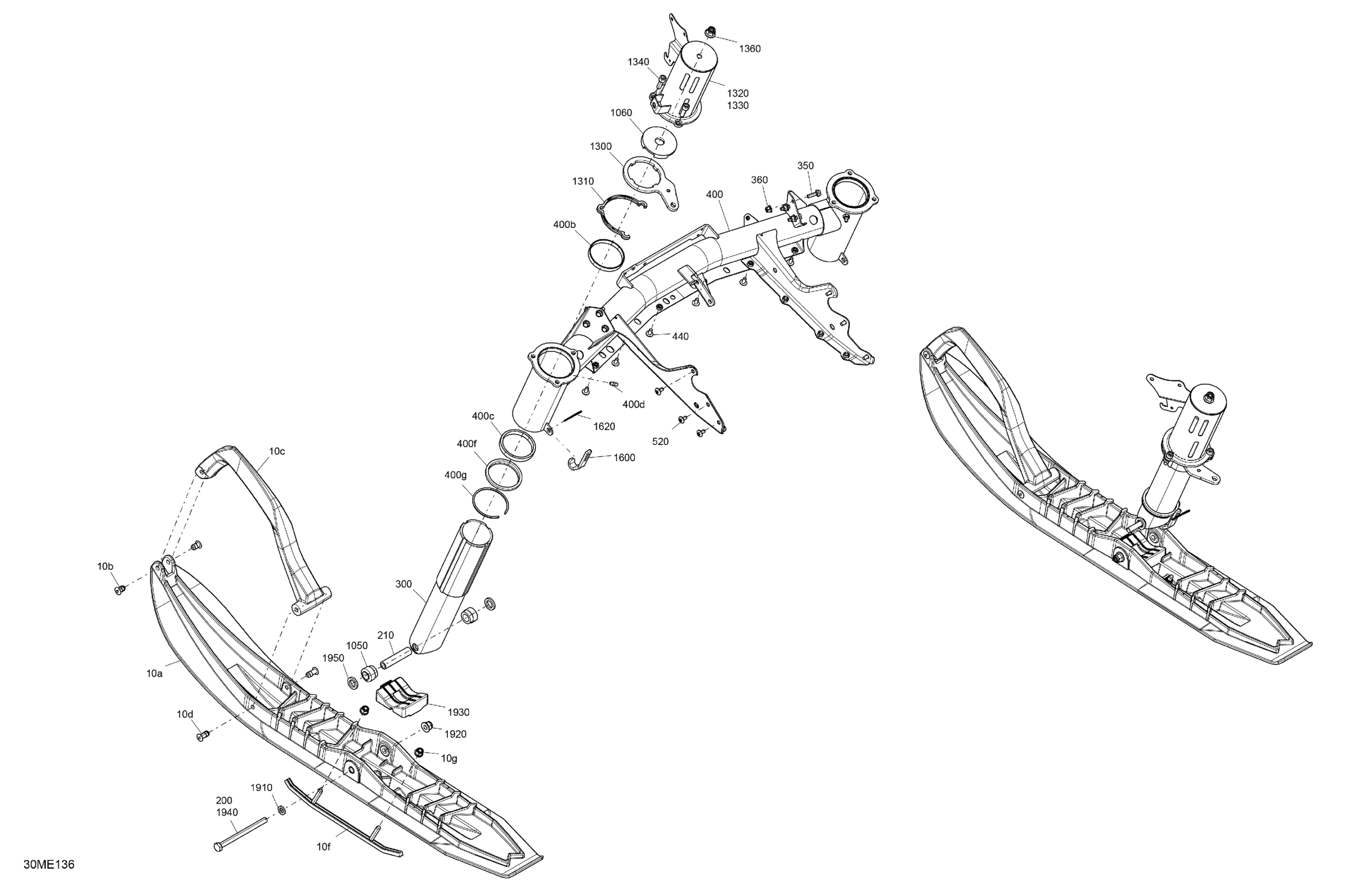

Ski-Doo TUNDRA - 600 ACE - LE - GNSA - Deep Black - 154X16X1.5CH Track - 2025 Suspension - Front Diagram

Description

Price

10a

Black, Ski

505073227

$175.35

10b

Retainer 17mm long

505071812

$4.43

10c

Neo Yellow, Ski Handle

505075287

$36.12

10d

Retainer 23mm Long

505072133

$5.03

10f

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$129.97

10g

Hex. Flange Elastic Nut M8

233281414

$1.14

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

210

Ski Axle

505073209

$12.69

300

Ski Leg

505073200

$289.97

350

Hex. Flange Screw M6 X 20

207662046

$1.74

360

Elastic Flange Nut M6 X 1.0

233261416

$1.74

400

Suspension Module | Includes 400 to 400g

505075833

$476.12

400b

Upper Cushion

414803100

$8.42

400c

Lower Cushion

414803200

$11.71

400d

Grease Fitting

408200700

$2.80

400f

Seal Oil

505072696

$46.12

400g

Circlip

505072698

$12.89

440

Torx Truss Screw M6 X 12

250000767

$1.66

520

Torx Truss Screw M6 X 12

250000767

$1.66

1050

Cushion

572034500

$9.98

1060

Stopper

570025800

$12.65

1300

Steering Arm

505074801

$128.43

1310

Spacer

505073983

$24.58

1320

LH Suspension Cover

505074802

$61.51

1330

RH Suspension Cover

505074808

$61.51

1340

Socket Head Screw M8 X 25

205082544

$0.92

1360

Hex. Flange Elastic Nut M10

233201414

$1.26

1600

Clamp

505074882

$4.00

1620

Spring Cotter 2 Din 11024 Zn

505073113

$2.08

1910

Washer

503192496

$0.75

1920

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

1930

Ski Stopper

505072594

$17.66

1940

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

1950

Spacer

505072579

$7.58
