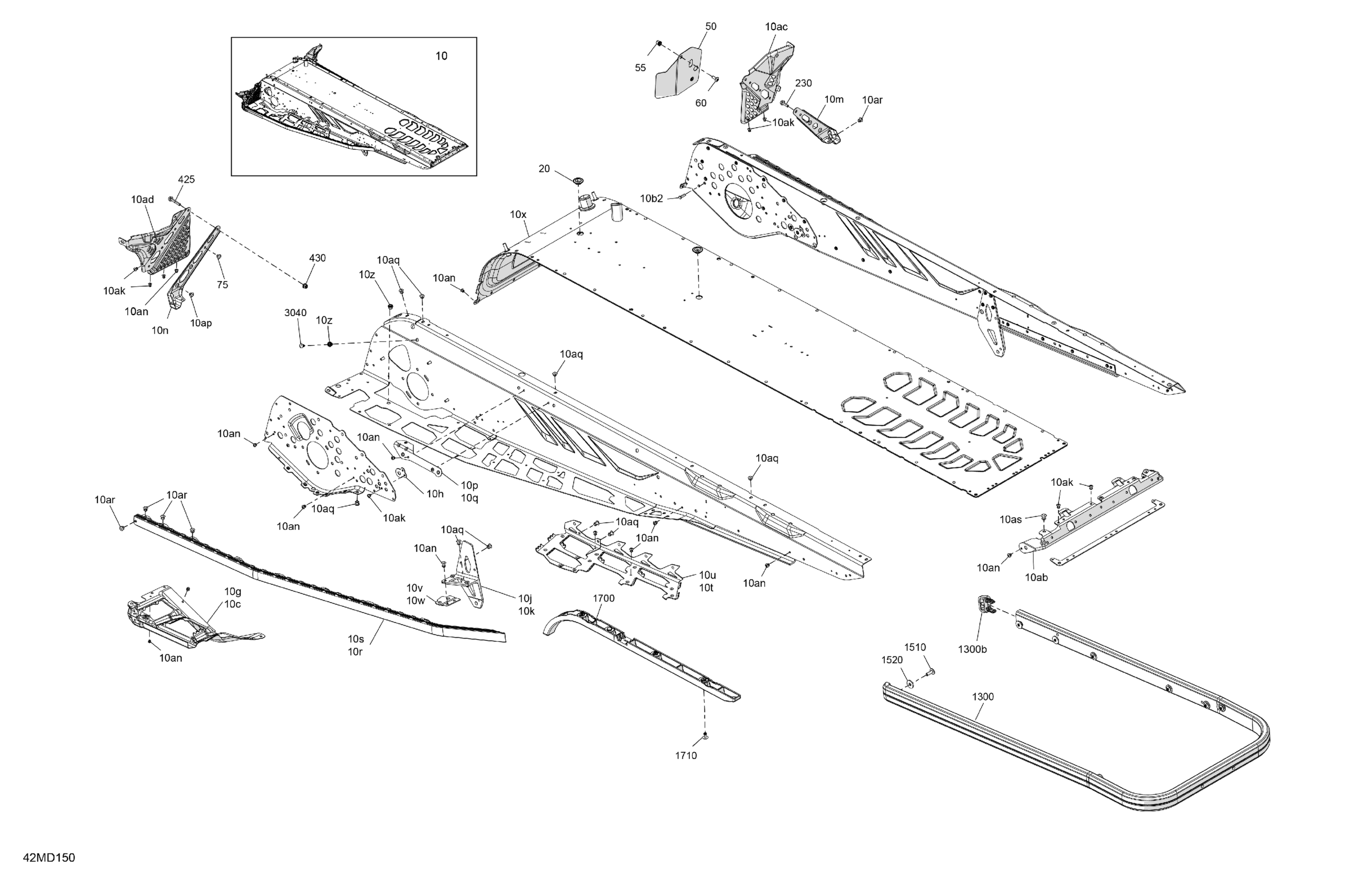

Ski-Doo TUNDRA 600 ACE - LE - GNRC - Deep Black - 154X16X1.5CH Track, 2024 Frame - System - Rear Section Diagram

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10as

415130753

Unavailable

Clinch Stud M6 X 20

250300027

$2.09

Deep Black, RH Footrest Reinforcement

518332803

$86.99

Deep Black, LH Footrest Reinforcement

518332802

$18.49

Front Suspension Arm Reinforcement

518335959

$4.19

LH Rear Suspension Support

518334406

$69.99

RH Rear Suspension Support

518334407

$69.99

Stirrup Reinforcement

518334507

$21.99

Deep Black, LH Chassis Reinforcement

518332924

$21.99

LH Under Chassis Reinforcement

518331744

$18.99

RH Under Chassis Reinforcement

518331745

$19.99

RH Roller

518328451

$194.99

LH Roller

518328452

$194.99

Central Rear Tunnel Reinforcement

518334842

$35.99

LH Central Reinforcement Tunnel

518334843

$35.99

LH Reinforcement Plate

518329088

$3.39

RH Reinforcement Plate

518329089

$4.59

Radiator Tunnel 154 Ass'y

518334491

$709.99

Clinch Nut M6 Hexsert

605636003

$4.23

Rear Cap

518328990

$22.49

RH Footrest

518334509

$22.49

LH Foot Protector

518334305

$23.99

Avex Rivet

390909100

$0.30

Avex Rivet

390909200

$0.30

Rivet Ornit 6,5 X 10.5

293150264

$2.40

Rivet Ornit 6,5 X 12.5

293150265

$2.40

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Black, Plug

293730052

$9.19

Heat Shield

518331823

$10.49

Insert

293450275

$12.99

Torx Head Screw M6 X 16

250000717

$2.11

Rivet Ornit 6,5 X 12.5

293150265

$2.40

Hex. Flange Screw M6 X 20

207562056

$2.11

Hex. Flange Screw M6 X 20

207562056

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Black, Hitch Bumper 154 | Includes 1300 to 1300b

860201250

$148.99

Bumper Cap

520001629

$0.98

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Flat Washer

224061201

$1.37

Front Protector

518329982

$18.49

Pop Rivet 3/16”

293150108

$1.19

Dart

293730079

$2.09
