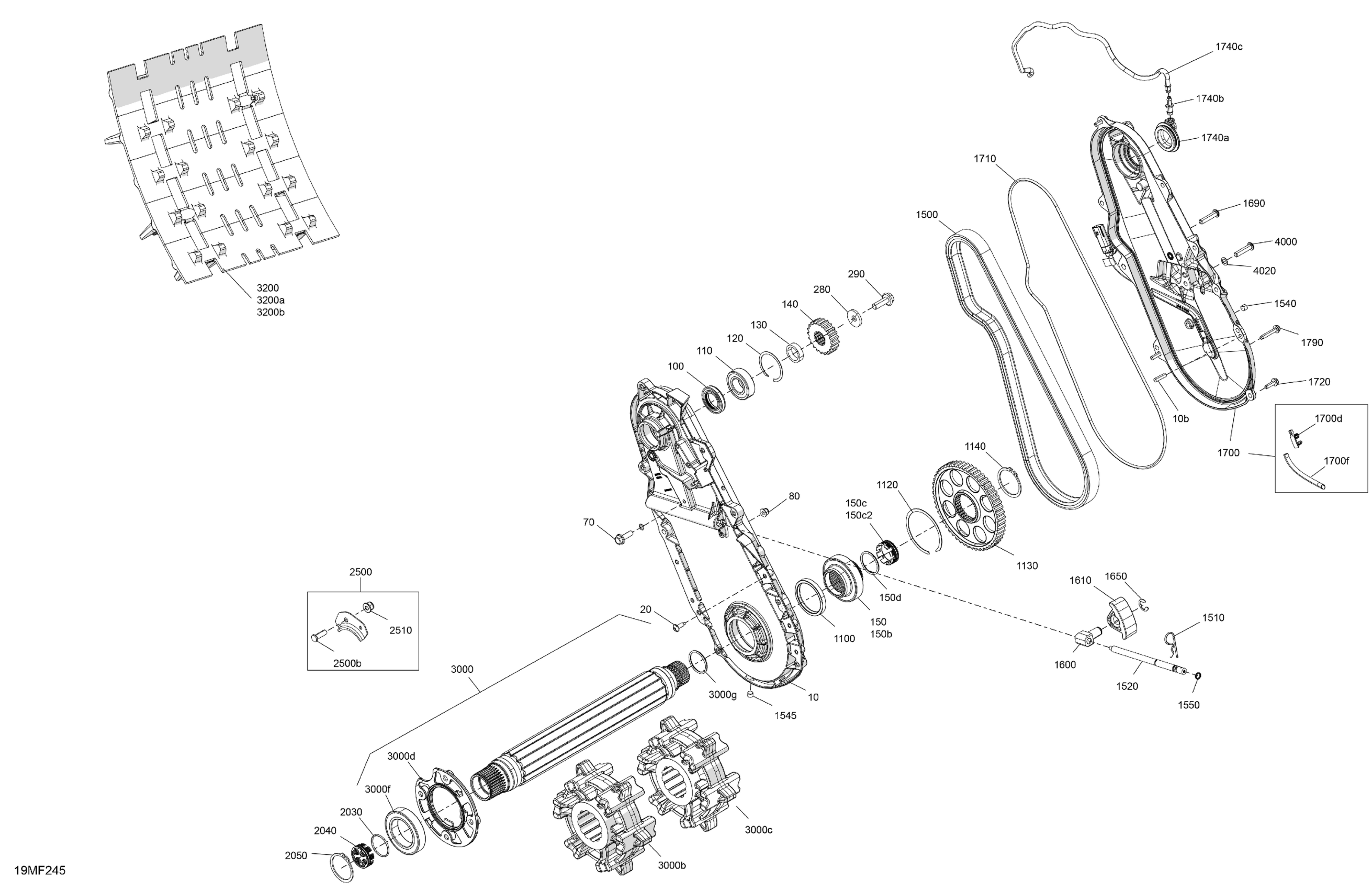

Ski-Doo SUMMIT - X - 850 E-TEC - TNTA - Deep Black - 16X154X2.5PLF Track, 2026 Drive - System Diagram

#

Description
Price

10

Deep Black, Chain Case Ass'y | Includes 10 to 10b

504154290

$189.99

10b

Dowel Pin

250400068

$2.11

20

Socket Head Screw M6 X 18

250001213

$8.11

70

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

80

Flange Elastic Nut M6

233261434

$4.44

100

Oil Seal

293200168

$14.49

110

Ball Bearing

293350115

$12.11

120

Circlip

504152576

$9.99

130

Shim

504154888

$10.99

140

Sprocket 21 Teeth

504153910

$44.99

150

Adapter Ass'y | Includes 150 to 150d

504154893

$65.49

150b

Ball Bearing

293350142

$34.99

150c

Magnetic Cap | Includes 150c to 150c2

504154019

$26.49

150c2

Cap

504154043

$2.11

150d

O-Ring Seal

293300291

$1.01

280

Spring Washer M10

504152784

$7.65

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

1100

Oil Seal

293200159

$16.25

1120

Circlip

504152582

$9.99

1130

Sprocket 51 Teeths

504153997

$49.99

1140

Circlip

504152572

$6.95

1500

Drive Chain 116 Links

504153397

$227.99

1510

Hair Pin

414575600

$1.89

1520

Adjustment Screw

504153760

$24.99

1540

Hex. Countersunk Drain Plug

250500013

$7.89

1545

Hex. Countersunk Drain Plug

250500013

$7.89

1550

O-Ring

293300202

$1.01

1600

Chain Tensioner

504154577

$17.49

1610

Slider Chain

504153312

$65.99

1650

Circlip

293370105

$2.11

1690

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

1700

Deep Black, Chain Case Cover Ass'y | Includes 1700 to 1700f

504155080

$189.99

1700d

Clip Connector

515178223

$2.09

1700f

Braided Sleeve

415130141

$55.99

1710

O-Ring

293300200

$13.16

1720

Hex. Flange Screw M6X20

250001153

$2.11

1740a

Plug

504154839

$6.19

1740b

Straight Pipe Fitting

293710180

$9.19

1740c

Polyurethane Hose 10000Mm Long

219704410

$56.99

1790

Hex. Flange Screw M6 X 35

250001015

$1.46

2030

O-Ring

293300201

$1.01

2040

Cap

504154043

$2.11

2050

Circlip

504152572

$6.95

2500

Bearing Housing Ass'y | Includes 2500 to 2500b

504153695

$19.49

2500b

Clinch Stud, M8 X 25

250300028

$4.44

2510

Hex. Flange Elastic Nut M8

233281414

$1.47

3000

Drive Axle Ass'y | Includes 3000 to 3000g

504154635

$412.99

3000b

LH Sprocket Wheel 6 Teeth

504154840

$100.49

3000c

RH Sprocket Wheel 6 Teeth

504154841

$100.49

3000d

Retaining Ring

504154417

$21.99

3000f

Ball Bearing

293350059

$30.99

3000g

O-Ring Seal

293300291

$1.01

3200

Track 16 X 154 X 2,5 | Includes 3200 to 3200b

504154405

$1.00

3200a

Clip

415130661

$3.29

3200b

Cleat

504152651

$9.69

4000

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

4020

Washer

504082900

$2.64
