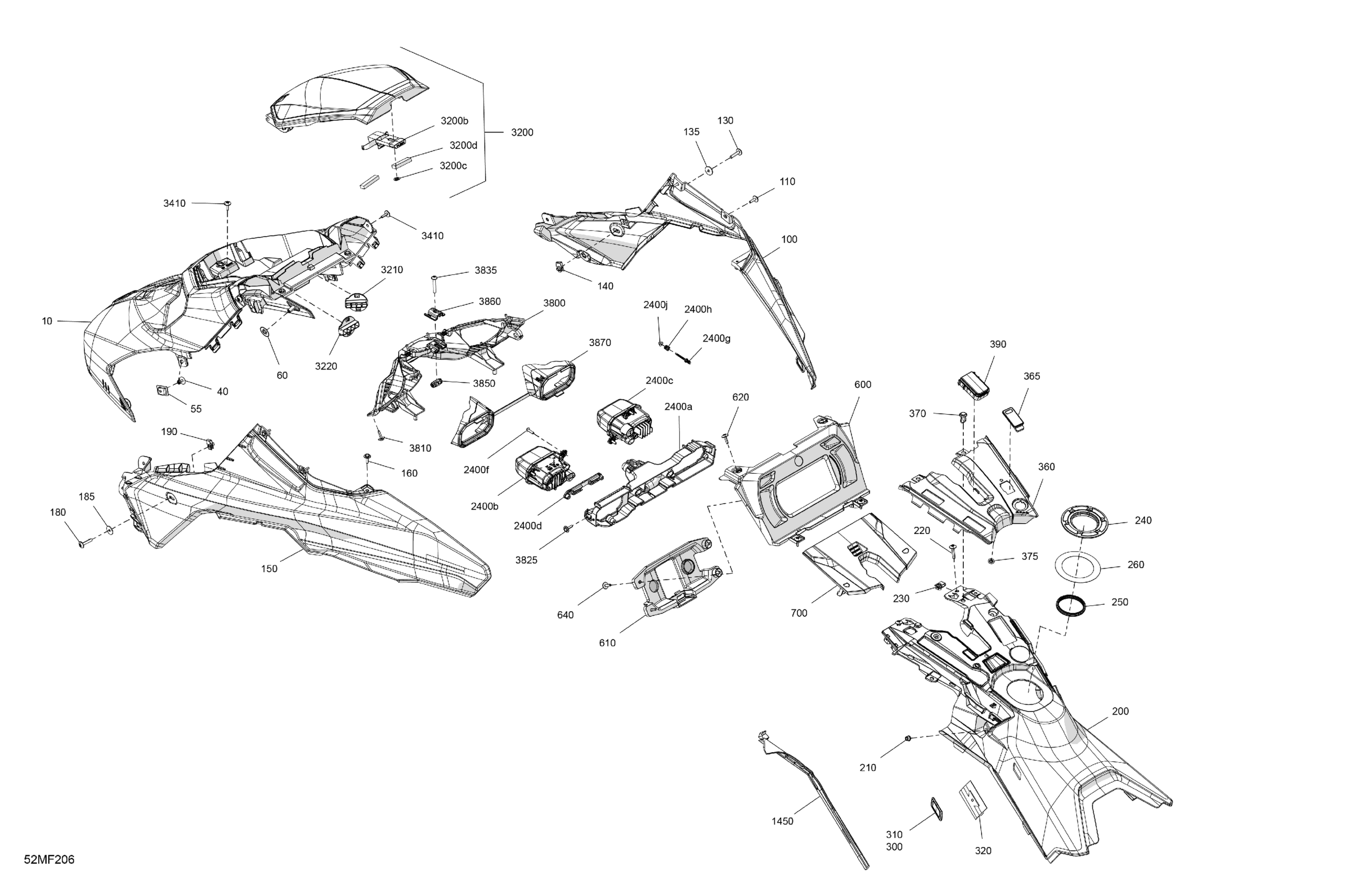

Ski-Doo SUMMIT - X - 850 E-TEC - TDTF - Monument Gray - 16X165X3P4F Track, 2026 Body - Hood Diagram

#

Description
Price

10

Hood

517309229

$154.99

40

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

55

Rivet Plate

517305109

$4.99

60

Push Nut

508000853

$2.09

100

RH Rear Hood

517309230

$214.99

110

Screw M4 X 16

250000725

$3.49

130

Torx Screw M5 X 26

250000587

$4.44

135

Washer

517307442

$1.48

140

Panel Nut M5 X 0.8

250000958

$4.23

150

LH Rear Hood

517309231

$214.99

160

Screw M4 X 16

250000725

$3.49

180

Torx Screw M5 X 26

250000587

$4.44

185

Washer

517307442

$1.48

190

Panel Nut M5 X 0.8

250000958

$4.23

200

Rear Console

517308760

$179.99

210

Hex. Flange Elastic Nut M5

233251414

$1.04

220

Torx Screw M5 X 26

250000587

$4.44

230

Panel Nut M5 X 0.8

250000958

$4.23

240

Round Slotted Nut

517309507

$14.49

250

Gasket

517309450

$1.01

260

Joint

517309451

$2.49

300

RH Cap

517306587

$1.39

310

LH Cap

517306588

$1.39

320

Self Adhesive Weather Strip

517308930

$2.39

360

Front Console

517309794

$31.99

365

Cap

517308261

$1.39

370

Tuflok Plastic Rivet

293150230

$1.47

375

Push Nut

732610072

$2.19

390

Connecting Plate

517308759

$5.79

600

Gauge Support

517307806

$38.99

610

Gauge Support

515179104

$39.99

620

Screw M4 X 16

250000889

$3.09

640

Screw M4 X 16

250000725

$3.49

700

Access Cover

517308112

$38.99

1450

Molded Gasket

517308988

$6.29

2400a

Headlight Support

517309050

$15.49

2400b

Low Beam Light

710008089

$129.99

2400c

High Beam Light

710006911

$129.99

2400d

Support Pivot | Not Shown

517309049

$2.79

2400f

Torx-Truss Pt K40 X 16

250000759

$2.11

2400g

Threaded Rod | Not Shown

517309133

$7.55

2400h

Compression Spring | Not Shown

517309058

$7.41

2400j

Specialized Nut | Not Shown

517309134

$1.01

3200

Box Cover Ass'y | Includes 3200 to 3200d

517308579

$30.99

3200b

Latch

517305779

$12.99

3200c

Push Nut

732610072

$2.19

3200d

Joint Seal

517308246

$2.39

3210

Box Cap

517308260

$13.49

3220

Box Cap

517308260

$13.49

3410

Screw M4 X 16

250000889

$3.09

3800

Headlight Trim

517307762

$60.99

3810

Screw M4 X 16

250000725

$3.49

3825

Screw M4 X 16

250000725

$3.49

3835

Torx Screw Nylon

250000732

$2.11

3850

Molded Housing Nut

517308229

$2.32

3860

Clip

517309293

$9.59

3870

Boot

517308773

$24.49
