Description

Price

10

Deep Black, Chain Case Ass'y | Includes 10 to 10b

504154291

$339.99

10b

Dowel Pin

250400068

$2.11

20

Socket Head Screw M6 X 18

250001213

$8.11

70

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

80

Flange Elastic Nut M6

233261434

$4.44

100

Oil Seal

293200168

$14.49

110

Ball Bearing

293350115

$12.11

120

Circlip

504152576

$9.99

130

Shim

504154888

$10.99

140

Sprocket_19 Teeth

504154196

$109.99

150

Adapter Ass'y | Includes 150 to 150d

504154893

$65.49

150b

Ball Bearing

293350142

$34.99

150c

Magnetic Cap | Includes 150c to 150c2

504154019

$26.49

150c2

Cap

504154043

$2.11

150d

O-Ring Seal

293300291

$1.01

280

Spring Washer M10

504152784

$7.65

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.96

1100

Oil Seal

293200159

$16.25

1120

Circlip

504152582

$9.99

1130

Sprocket 53 Teeth

504154197

$49.99

1140

Circlip

504152572

$6.95

1500

Drive Chain

504154208

$163.99

1510

Hair Pin

414575600

$1.89

1520

Adjustment Screw

504153760

$24.99

1540

Hex. Countersunk Drain Plug

250500013

$7.89

1545

Hex. Countersunk Drain Plug

250500013

$7.89

1550

O-Ring

293300202

$1.01

1600

Chain Tensioner

504154577

$17.49

1610

Slider Chain

504153312

$65.99

1650

Circlip

293370105

$2.11

1690

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

1700

Deep Black, Chain Case Cover Ass'y | Includes 1700 to 1700f

504155074

$189.99

1700d

Clip Connector

515178223

$2.09

1700f

Braided Sleeve

415130141

$55.99

1710

O Ring

293300214

$13.16

1720

Hex. Flange Screw M6X20

250001153

$2.11

1740a

Plug

504154839

$6.19

1740b

Straight Pipe Fitting

293710180

$9.19

1740c

Polyurethane Hose 10000Mm Long

219704410

$56.99

1740d

Heat Shield

515179201

$3.49

2030

O-Ring

293300201

$1.01

2040

Cap

504154043

$2.11

2050

Circlip

504152572

$6.95

2500

Bearing Housing Ass'y | Includes 2500 to 2500b

504153695

$19.49

2500b

Clinch Stud, M8 X 25

250300028

$4.44

2510

Hex. Flange Elastic Nut M8

233281414

$1.47

3000

Drive Axle Ass'y | Includes 3000 to 3000g

504154546

$412.99

3000b

Not Available As Spare Parts

XXX

Unavailable

3000c

Not Available As Spare Parts

XXX

Unavailable

3000d

Retaining Ring

504154417

$21.99

3000f

Ball Bearing

293350059

$30.99

3000g

O-Ring Seal

293300291

$1.01

3200

Track 14 X 146 X 1,6 | Includes 3200 to 3200b

504154701

$959.99

3200a

Clip

415130661

$3.29

3200b

Cleat

504152651

$9.69

4000

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.00

4020

Washer

504082900

$2.64

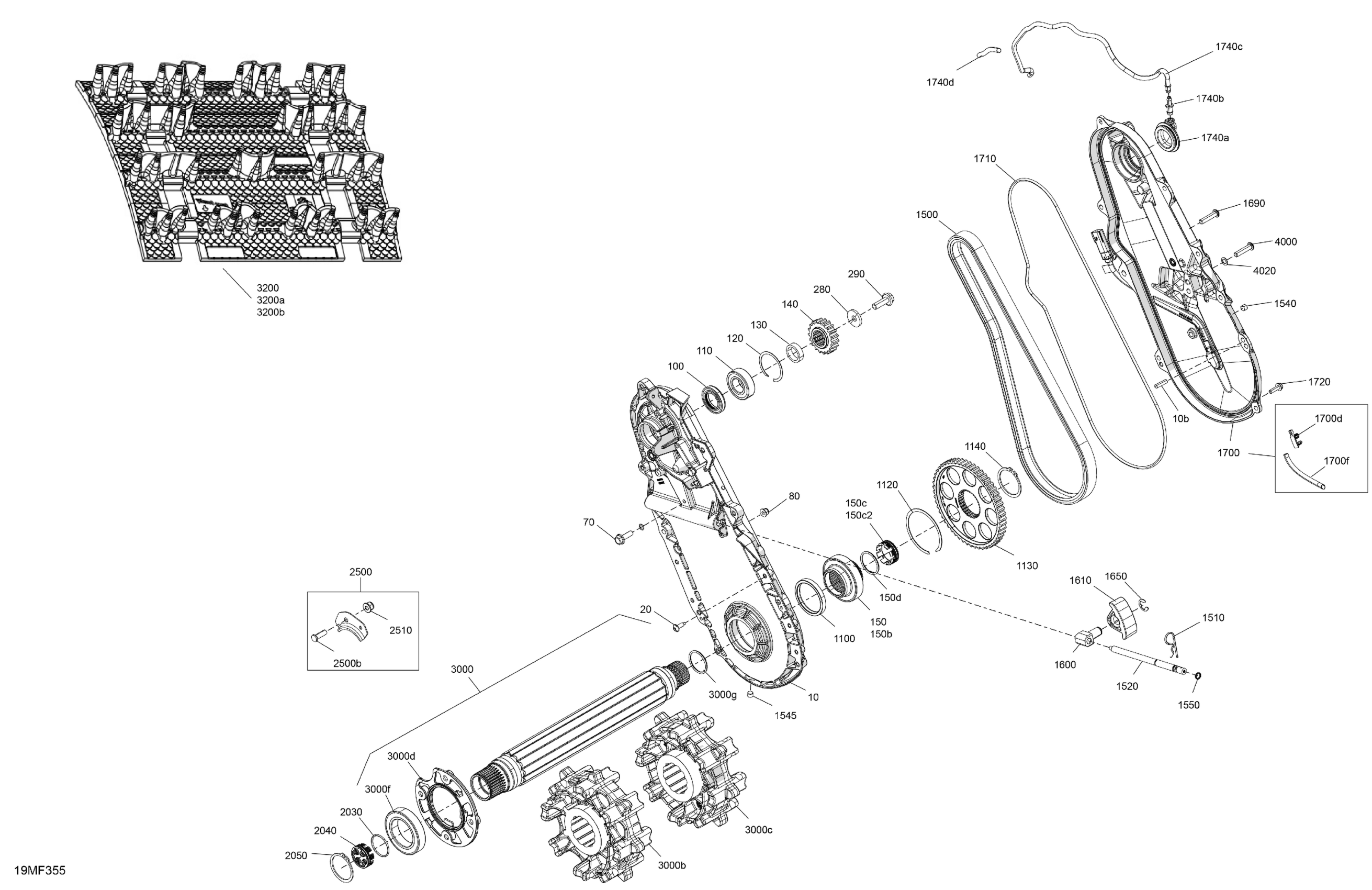

Ski-Doo North America - SUMMIT - NEO - 600 EFI - TWTA - Deep Black - 14X146X1.6CF Track, 2026 04- Drive - System Diagram

Deep Black, Chain Case Ass'y | Includes 10 to 10b

Dowel Pin

Socket Head Screw M6 X 18

Hex Flange Screw M8 X 25 S.Grip

Flange Elastic Nut M6

Oil Seal

Ball Bearing

Circlip

Shim

Sprocket_19 Teeth

Adapter Ass'y | Includes 150 to 150d

Ball Bearing

Magnetic Cap | Includes 150c to 150c2

Cap

O-Ring Seal

Spring Washer M10

Hex. Flange Screw M10 X 30, Scotch Grip

Oil Seal

Circlip

Sprocket 53 Teeth

Circlip

Drive Chain

Hair Pin

Adjustment Screw

Hex. Countersunk Drain Plug

Hex. Countersunk Drain Plug

O-Ring

Chain Tensioner

Slider Chain

Circlip

Hex. Button Head Screw M8 X 1.25 X 35

Deep Black, Chain Case Cover Ass'y | Includes 1700 to 1700f

Clip Connector

Braided Sleeve

O Ring

Hex. Flange Screw M6X20

Plug

Straight Pipe Fitting

Polyurethane Hose 10000Mm Long

Heat Shield

O-Ring

Cap

Circlip

Bearing Housing Ass'y | Includes 2500 to 2500b

Clinch Stud, M8 X 25

Hex. Flange Elastic Nut M8

Drive Axle Ass'y | Includes 3000 to 3000g

Not Available As Spare Parts

Not Available As Spare Parts

Retaining Ring

Ball Bearing

O-Ring Seal

Track 14 X 146 X 1,6 | Includes 3200 to 3200b

Clip

Cleat

Hex. Button Head Screw M8 X 1.25 X 35

Washer
