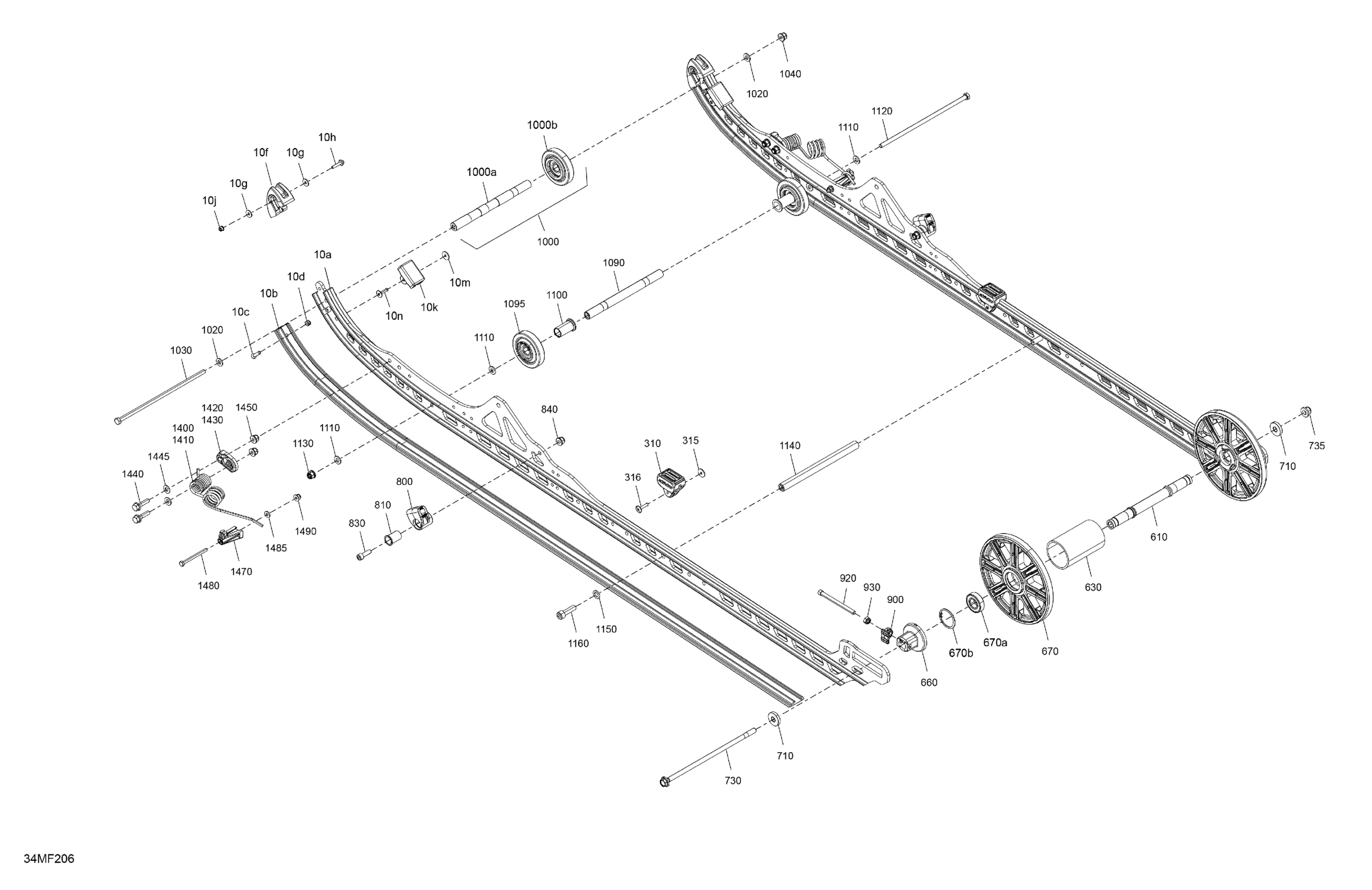

Ski-Doo North America - SUMMIT - Adrenaline with Enduro Package - 850 E-TEC - CHTA - Deep Black - 16X165X3P4F Track, 2026 05- Suspension - Rear - Lower Section Diagram

Description

Price

10a

Black, Rail Suspension 165

503196386

$309.99

10b

Slider 165

503194254

$42.49

10c

Phillips Screw M6 X 25

208562531

$2.11

10d

Elastic Stop Nut M6

232561414

$0.55

10f

Rail Protector

503196874

$24.49

10g

Washer

250200140

$1.01

10h

Hex. Flange Screw M5 X 25

207652544

$0.50

10j

Hex. Flange Elastic Nut M5

233251414

$1.04

10k

Rubber Stopper

503190576

$12.99

10m

Washer

503191273

$1.35

10n

Rivet Ornit 4.8 X 27.5

293150256

$2.40

310

Rubber Stopper

503196519

$5.59

315

Washer

503191273

$1.35

316

Rivet Ornit 4.8 X 27.5

293150256

$2.40

610

Rear Axle

503196252

$20.49

630

Socket

503196947

$7.99

660

Rear Wheel Support

503196246

$6.89

670

Black, Wheel 200MM | Includes 670 to 670b

503196243

$51.99

670a

Ball Bearing | Package-STD

503190396

$14.30

670b

Retaining Ring

415129371

$12.01

710

Washer

503196357

$10.99

730

Bolt M10

503195748

$27.49

735

Flange Elastic Nut M10

233201466

$3.17

800

Spring Support Kit

861805547

$10.49

810

Bushing

503196210

$12.64

830

Socket Screw M8 X 25

205082554

$2.11

840

Elastic Flange Nut M8

233281466

$1.01

900

Tensioner

503194266

$9.39

920

Hex. Cap Screw M8 X 95

503194267

$7.97

930

Hex. Elastic Stop Nut M8

232581414

$0.56

1000

Front Wheel Axle Ass'y | Includes 1000 to 1000b

503196253

$73.99

1000a

Axle

503196663

$24.99

1000b

Black, Wheel Ass'y

503195125

$33.99

1020

Washer

503192494

$3.17

1030

Bolt M8 X 248mm

503192440

$30.49

1040

Elastic Flange Nut M8

233281466

$1.01

1090

Pivot Axle

503195954

$9.74

1095

Black, Wheel Ass'y

503195125

$33.99

1100

Spacer

503194864

$10.49

1110

Washer

503192494

$3.17

1120

Bolt M8 X 248mm

503192440

$30.49

1130

Elastic Flange Nut M8

233281466

$1.01

1140

Axle Strap

503191260

$30.99

1150

Washer

503192496

$0.77

1160

Socket Head Screw M10 X 35

205503554

$7.51

1400

LH Spring

503194900

$67.99

1410

RH Spring

503194901

$67.99

1420

LH Support

503194294

$42.99

1430

RH Support

503194295

$42.99

1440

Hex. Flange Screw M8 X 30

207683054

$2.11

1445

Washer

503192494

$3.17

1450

Elastic Flange Nut M8

233281466

$1.01

1470

Hook Ass'y

503196336

$9.39

1480

Hex. Cap Screw M6 X 70

207167054

$4.44

1485

Flat Washer

250200039

$0.74

1490

Hex. Flange Elastic Nut M6

233261466

$2.00
