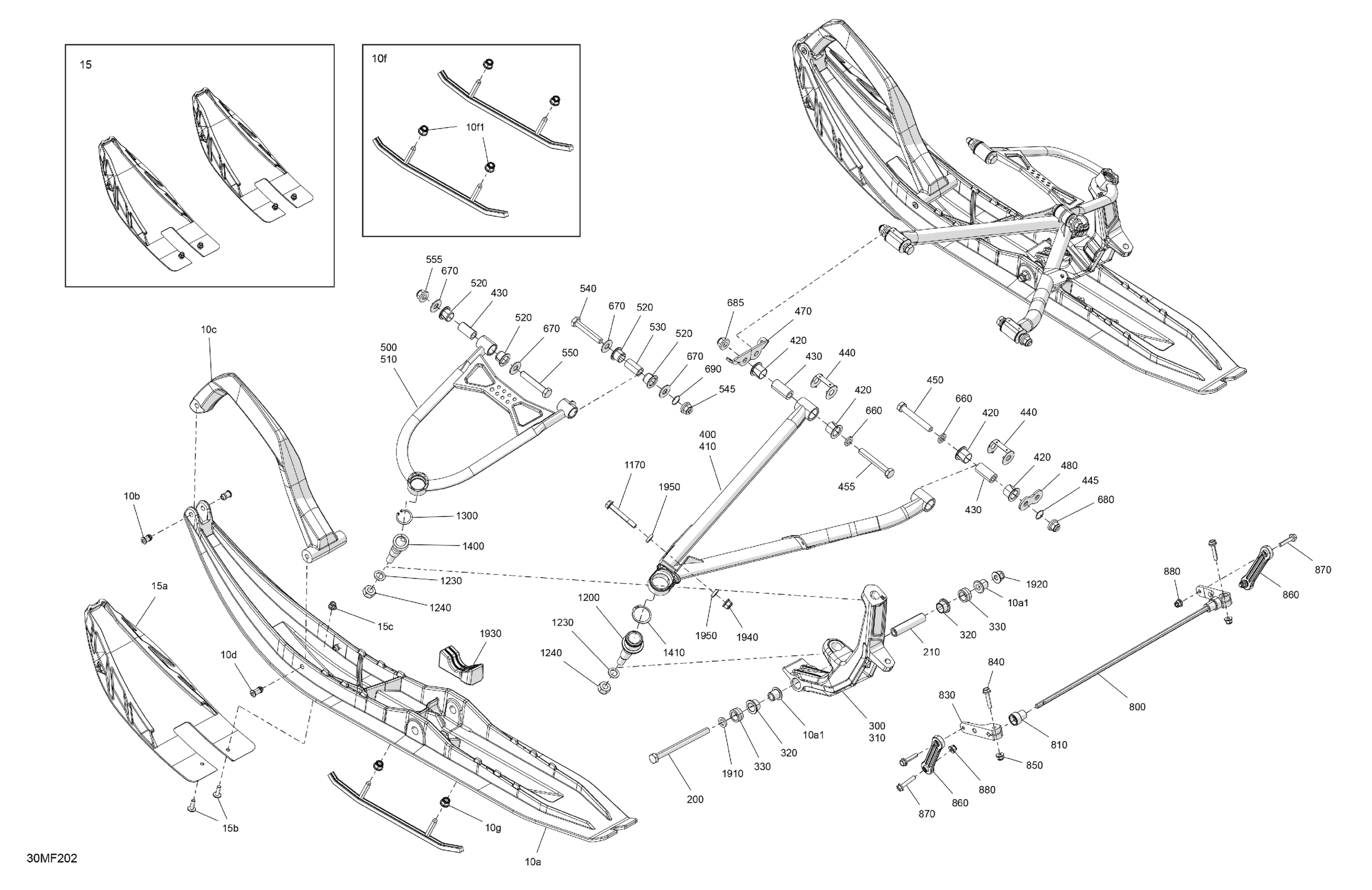

Ski-Doo SUMMIT - Adrenaline with Enduro Package - 600R E -TEC - CGTB - Deep Black - 16X154X2.5PLF Track, 2026 Suspension - Front Diagram

Description

Price

10a

Deep Black, Ski Pilot DS 3-E | Includes 10a to 10a1

505074746

$190.99

10a1

Ski Bushing

505071781

$16.18

10b

Rivet Ski Handle Short

505075902

$5.95

10c

Black, Handle

505072976

$35.99

10d

Rivet Ski Handle Long

505075906

$6.78

10f

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

$92.99

10f1

Hex. Flange Elastic Nut M8

233281414

$1.47

10g

Hex. Flange Elastic Nut M8

233281414

$1.47

Ski Tip | Includes 15 to 15c

505073815

Unavailable

15a

Ski Tip

505073784

$51.99

15b

Hex. Socket Screw M6 X 20

250000770

$2.09

15c

Hex. Flange Elastic Nut M6

233261466

$2.00

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

210

Ski Axle

505073691

$14.22

300

Deep Black, LH Ski Leg -8.5

505074706

$234.99

310

Deep Black, RH Ski Leg -8.5

505074707

$234.99

320

Leg Bushing

505072690

$12.49

330

Spacer

505074949

$2.19

400

LH Lower Suspension Arm 34"

505075470

$204.99

410

RH Lower Suspension Arm 34"

505075471

$204.99

420

Bushing

505072208

$3.28

430

Bushing

505072214

$18.89

440

Wear Plate

505072634

$6.29

445

O-Ring

505072448

$2.32

450

Screw Hex. M10 X 70

250001024

$2.11

455

Screw Hex. M10 X 70

250001024

$2.11

470

Wear Plate

505073723

$6.19

480

Plate

505073844

$2.29

500

Black, LH Upper Suspension Arm

505075711

$154.99

510

Black, RH Upper Suspension Arm

505075712

$154.99

520

Bushing

505072250

$3.28

530

Sleeve

505072143

$9.00

540

Screw Hex. M10 X 60

250001023

$2.11

545

Hex. Flange Elastic Nut M10

250100165

$0.85

550

Screw Hex. M10 X 60

250001023

$2.11

555

Hex. Flange Elastic Nut M10

250100165

$0.85

660

Washer

503189564

$0.74

670

Washer

505072392

$4.76

680

Hex. Flange Elastic Nut M10

250100165

$0.85

685

Hex. Flange Elastic Nut M10

250100165

$0.85

690

O-Ring

505072448

$2.32

800

Stabilizer Bar

505075485

$74.49

810

Bushing

505072786

$9.23

830

Stabilisator Lever

505073752

$18.49

840

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

850

Hex. Flange Elastic Nut M6

233261466

$2.00

860

Double Ball Joint Link

505073172

$56.99

870

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

880

Hex. Flange Elastic Nut M6

233261466

$2.00

1170

Hex. Flange Screw M8 X 58

250000824

$2.11

1200

Ball Joint

505074133

$53.99

1230

Washer

503192491

$4.54

1240

Hex Elastic Nut M12 X 1.25

232521464

$2.11

1300

Circlip

293370070

$8.99

1400

Upper Ball Joint

505072913

$72.99

1410

Snap Ring

293370098

$3.17

1910

Washer

503192496

$0.77

1920

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

1930

Ski Stopper

505074831

$17.22

1940

Elastic Flange Nut M8

233281466

$1.01

1950

Spacer

505073892

$2.29
