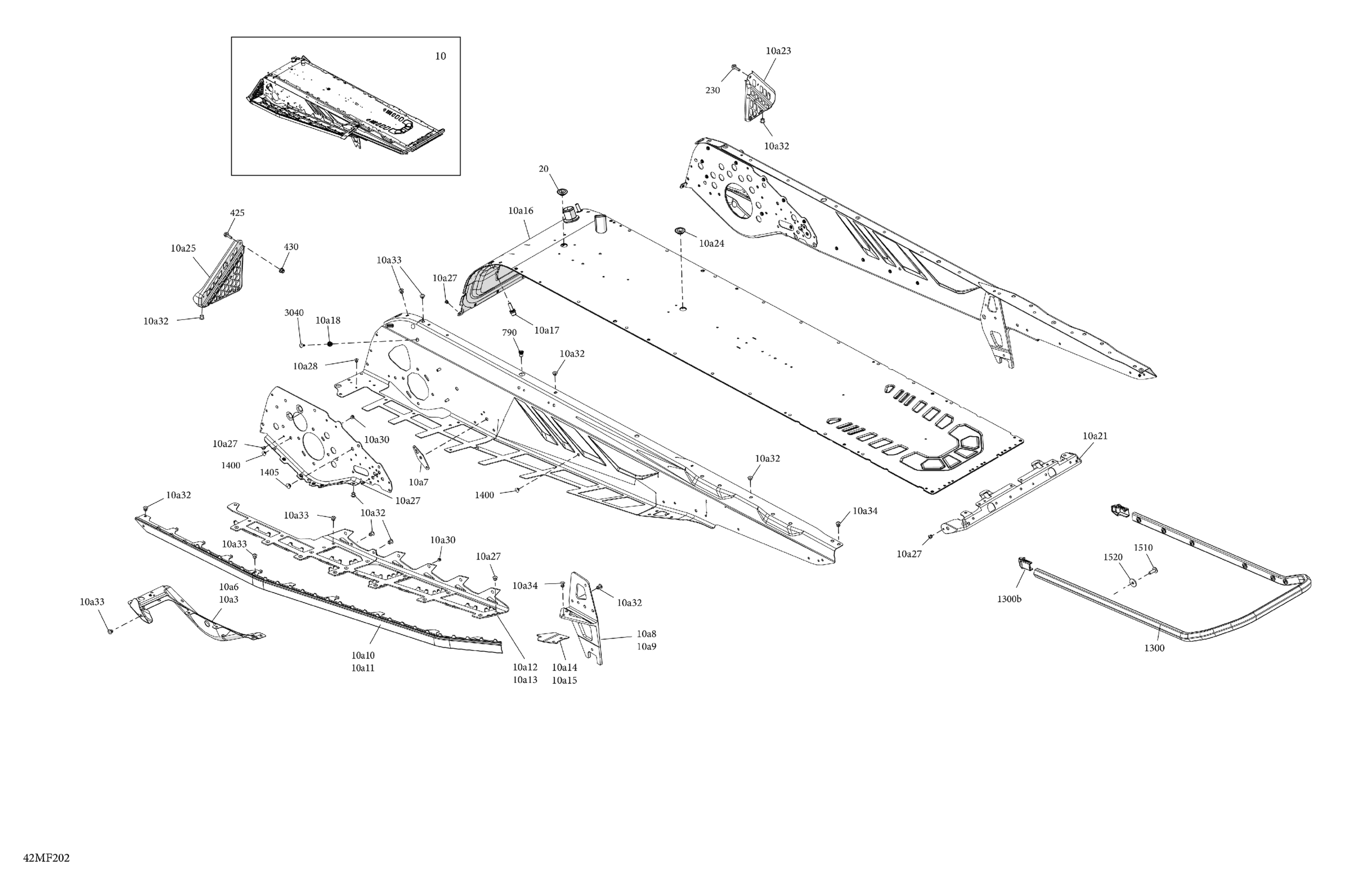

Ski-Doo North America - SUMMIT - Adrenaline - 600R E -TEC - CETA - Catalyst Gray - 16X154X2.5PLF Track - SHOT starter, 2026 06- Frame - System - Rear Section Diagram

Description

Price

Deep Black, Chassis Module Tunnel 154

415130995

$3.00

10a3

RH Footrest Reinforcement

518332455

$88.99

10a6

LH Footrest Reinforcement

518332456

$88.99

10a7

Front Suspension Arm Reinforcement

518335959

$4.19

10a8

LH Rear Suspension Support

518336861

$45.99

10a9

RH Rear Suspension Support

518336862

$45.99

10a10

Formed Boarding Step Rg

518332841

$194.99

10a11

Formed Boarding Step

518332842

$194.99

10a12

RH Tunnel Liner

518335261

$66.99

10a13

LH Tunnel Liner

518335262

$65.99

10a14

LH Rear Footrest Reinforcement

518333048

$19.99

10a15

RH Rear Footrest Reinforcement

518333049

$19.99

10a16

Radiator Tunnel 154

518335141

$739.99

10a17

Protruding Stud M8 x 22

250300652

$4.44

10a18

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10a21

Rear Cap

518328990

$22.49

10a23

RH Footrest

518332462

$44.99

10a24

Black, Plug

293730052

$9.19

10a25

LH Footrest

518332463

$44.99

10a27

Rivet Avibulb 3/16

293150203

$2.09

10a28

Avibulb Rivet 4.8 X 12.1

293150237

$2.09

10a30

Henrob Rivet

293150245

$1.69

10a32

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10a33

Rivet Ornit 6,5 X 16.5

293150267

$2.40

10a34

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

790

Insert

293450278

$4.49

1300

Rear Bumper | Includes 1300 to 1300b

518328501

$154.49

1300b

Cap

520001612

$10.99

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

3040

Dart

293730079

$2.09

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37
