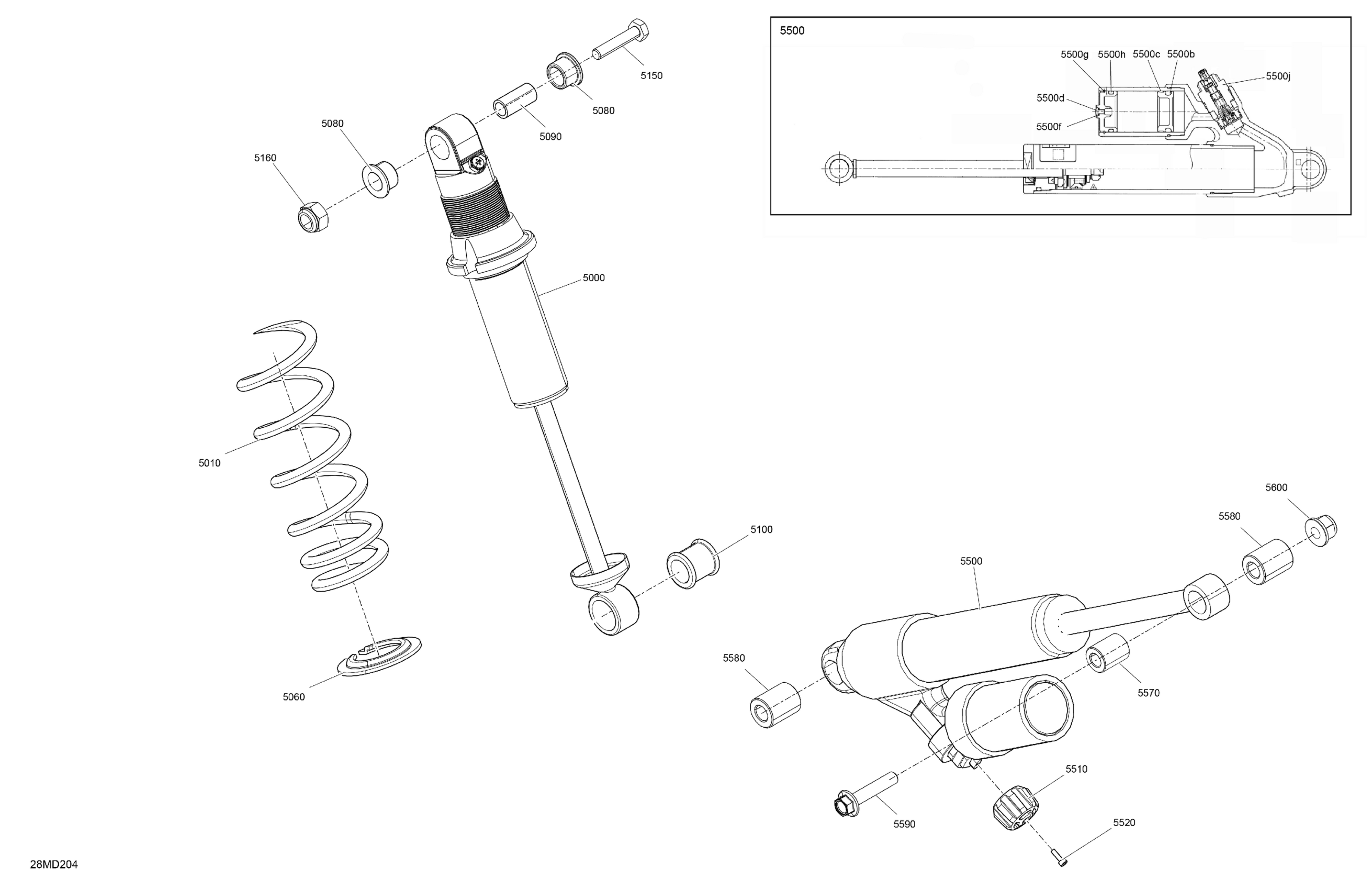

Ski-Doo SUMMIT 850 E-TEC - X with Expert Package - TGRA - Deep Black - 154X16X3P4 Track, 2024 Suspension - Rear Shocks Diagram

Description

Price

5000

Central Shock Absorber 36

503196321

$403.70

5010

Spring

503195465

$64.90

5060

Spring Stopper

503194270

$16.39

5080

Urethane Bushing

503189117

$6.67

5090

Bushing | Includes 240d to 240d1

503189282

$4.06

5100

Bushing

503189271

$10.15

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.57

5160

Elastic Locking Nut M10

233601466

$2.00

5500

Rear Shock Absorber | Includes 5500 to 5500j

503196299

$877.49

5500b

O-Ring

415093807

$33.55

5500c

Piston Ring | Not Shown

415093806

$14.52

5500d

Screw | Not Shown

505070399

$3.88

5500f

O-Ring

505070400

$4.25

5500g

Circlip - Call your local BRP dealership

715900076

$3.91

5500h

O-Ring

415093804

$4.25

5500j

Valve

503195958

$90.27

5510

Adjustment Button

503196209

$2.49

5520

Allen Screw M3 X 0.5 X 10

250000644

$2.00

5570

Axle Shock Absorber

503196509

$9.69

5580

Leg Cushion

505072663

$7.18

5590

Hex Flange Screw M8 X 40

207684056

$1.40

5600

Elastic Flange Nut M8

233281466

$0.96
