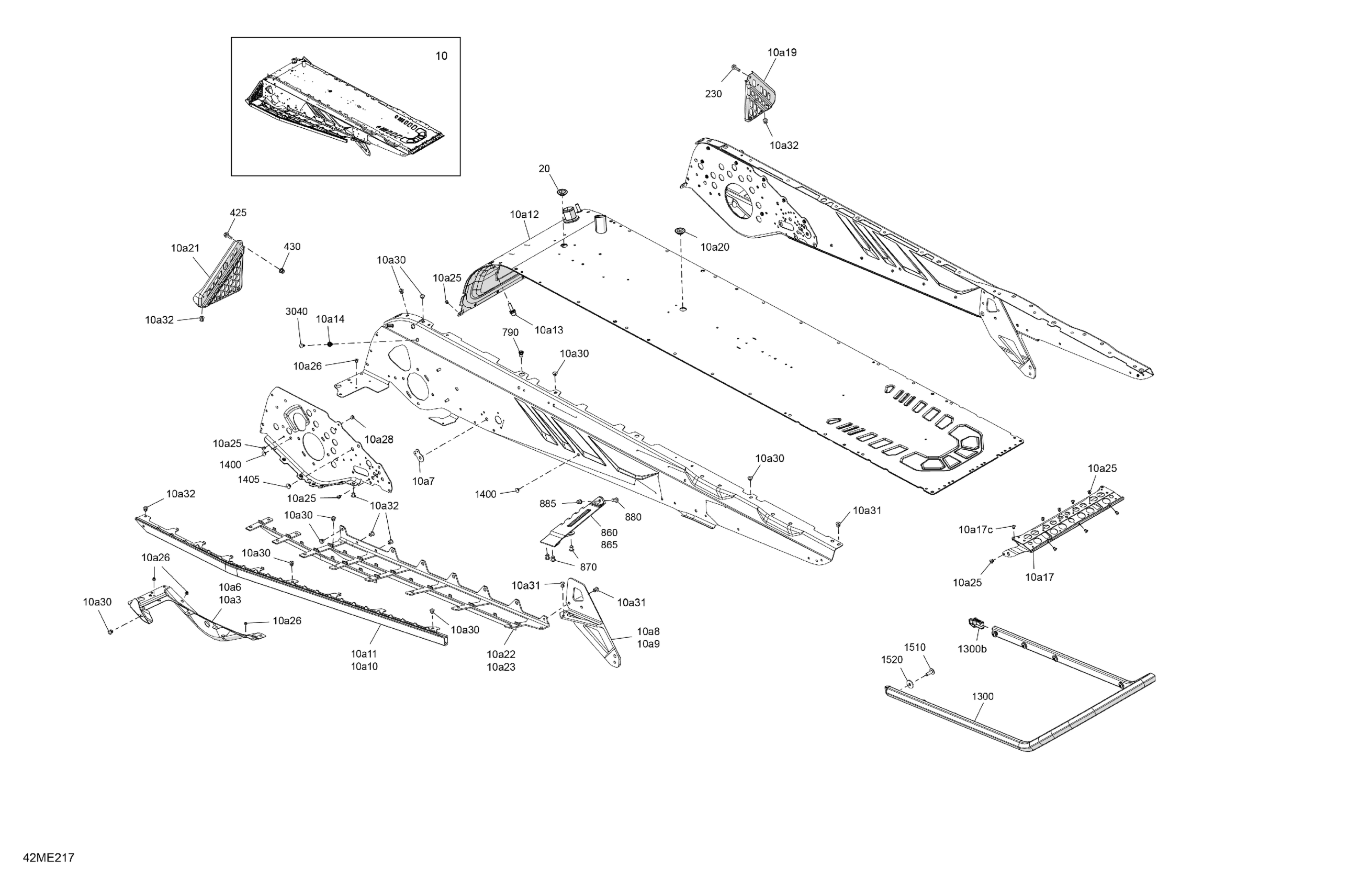

Ski-Doo SUMMIT - 850 E-TEC - X - TNSA - Deep Black - 154X16X2.5PLF Track - 2025 Frame - System - Rear Section Diagram

Deep Black, Chassis Tunnel Module 154 Short | Includes 10 to 10a32

415130799

$3.00

RH Footrest Reinforcement

518332455

$88.99

LH Footrest Reinforcement

518332456

$88.99

Front Suspension Arm Reinforcement

518335959

$4.19

LH Rear Suspension Support

518332458

$94.99

RH Rear Suspension Support

518332457

$45.99

RH Formed Boarding Step

518332833

$194.99

LH Formed Boarding Step

518332834

$194.99

Radiator Tunnel 146

518335139

$739.99

Protruding Stud M8 x 22

250300652

$4.44

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Rear Cap Ass'y | Includes 10a17 to 10a17c

518331704

$63.99

Rivet Avibulb 3/16

293150203

$2.09

RH Footrest

518332462

$44.99

Black, Plug

293730052

$9.19

LH Footrest

518332463

$44.99

LH Rear Perforated Footstep

518332464

$114.99

RH Rear Perforated Footstep

518332466

$114.99

Rivet Avibulb 3/16

293150203

$2.09

Avibulb Rivet 4.8 X 12.1

293150237

$2.09

Henrob Rivet

293150245

$1.69

Rivet Ornit 6,5 X 12.5

293150265

$2.40

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

Hex. Flange Screw M6 X 20

207562056

$2.11

Hex. Flange Screw M6 X 20

207562056

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Insert

293450278

$4.49

Deep Black, RH Rear Footrest Reinforcement

518332478

$48.99

Deep Black, LH Rear Footrest Reinforcement

518332475

$48.99

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

Collar Huck Magna-Grip 6.4

293150149

$0.48

Rear Short Bumper 154 | Includes 1300 to 1300b

518331205

$164.99

Cap

520001612

$10.99

Black, Dart 8 mm

293730047

$2.21

Black, Dart 10 mm

293730060

$4.55

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

Flat Washer

224061201

$1.37

Dart

293730079

$2.09
