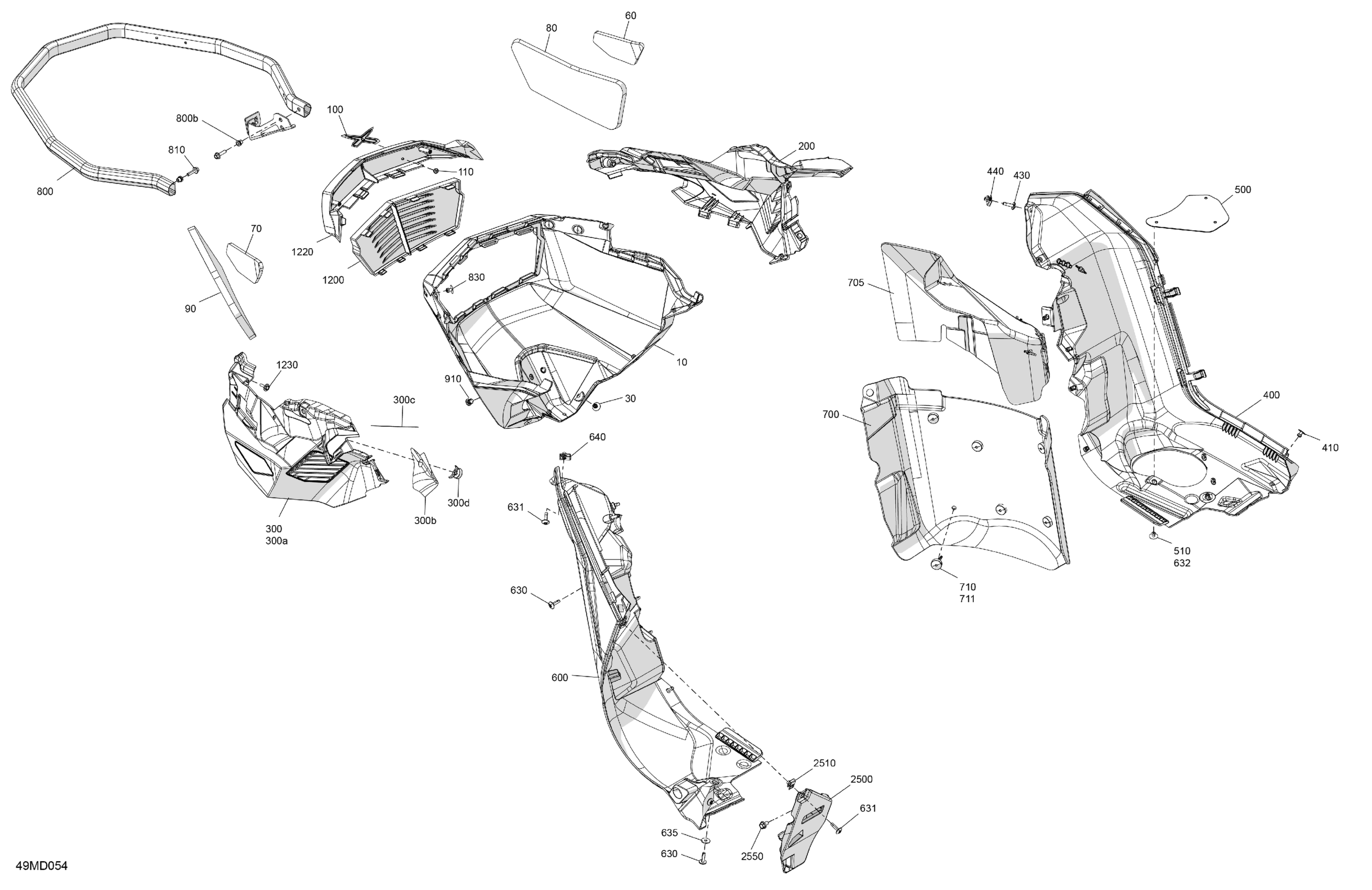

Ski-Doo SUMMIT 850 E-TEC - X - TDR1 - Northern Lichen - 165X16X3P4F Track, 2024 Body - Bottom Pan Diagram

Description

Price

Deep Black, Front Bottom Pan

502008525

$194.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

RH Front Central Bottom Pan Foam

502008308

$9.59

LH Front Central Bottom Pan Foam

502008309

$13.99

Bonded Foam

502008355

$19.49

Bonded Foam

502008356

$7.89

100

Emblem X

502008454

$9.99

110

Push Nut

250100206

$1.01

200

Deep Black, RH Bottom Pan Cap

502008262

$70.99

300

Deep Black, LH Bottom Pan Cap Ass'y | Includes 300 to 300d

502008530

$124.99

300a

Deep Black, LH Bottom Pan Cap

502008263

$70.99

300b

LH Front Heat Shield

502008487

$4.79

300c

LH Front Heat Shield

502008575

$4.39

300d

Stopper

502008610

$2.09

400

Deep Black, RH Bottom Pan

502008759

$109.99

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

430

Torx Truss M5 X 20

250000586

$4.44

440

Panel Nut M5 X 0.8

250000958

$4.23

500

Plate

502008690

$8.19

510

Pop Rivet 3/16"

293150103

$0.55

600

Deep Black, LH Bottom Pan

502008236

$93.99

630

Screw Torx M5 X 20

250001232

$1.37

631

Torx Truss M5 X 20

250000586

$4.44

632

Pop Rivet 3/16"

293150103

$0.55

635

Washer M5

250200025

$0.74

640

Panel Nut M5 X 0.8

250000958

$4.23

700

Acoustic Panel

502008754

$45.99

705

Acoustic Panel

502008254

$45.99

710

Stopper

502008610

$2.09

711

Stopper

502008610

$2.09

800

Deep Black, Front Bumper | Includes 800 to 800b

502008381

$116.49

800b

Insert M5 X 0.8

293450268

$2.09

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

910

Panel Fastener

518321954

$7.69

1200

Lower Prefilter Grille

502008245

$27.99

1220

Upper Prefilter Grille

502008243

$27.99

1230

Screw M4 X 16

250000725

$3.49

2500

LH Lower Bottom Pan Support

502008357

$19.99

2510

Panel Nut M5 X 0.8

250000958

$4.23

2550

Flange Screw M6 X 10, Scotch Grip

207561044

$7.19
