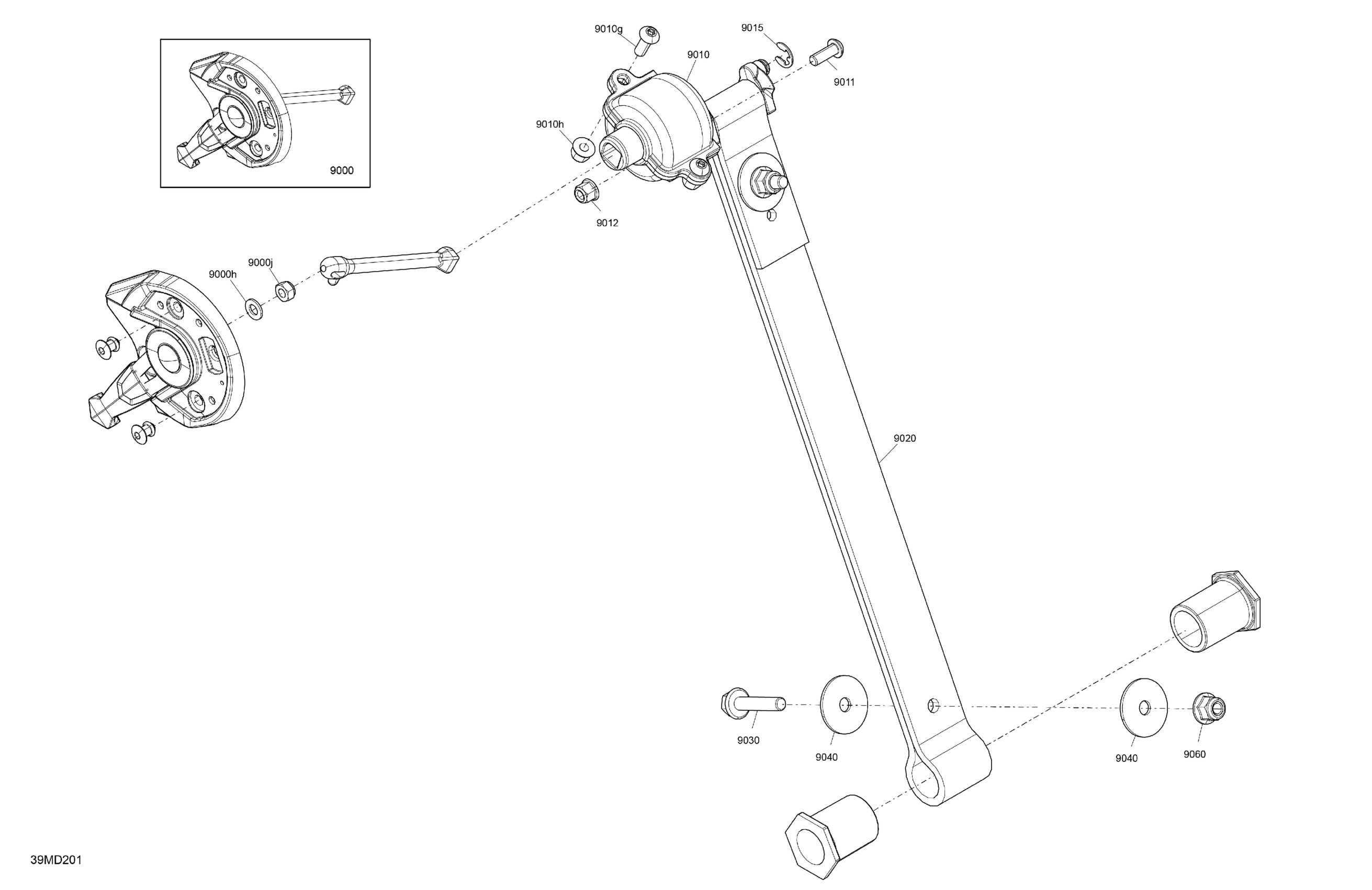

Ski-Doo SUMMIT 850 E-TEC - X - TDR1 - Northern Lichen - 165X16X3P4F Track, 2024 Suspension - Strap Limiter Diagram

Handle Ass'y | Includes 9000 to 9000j

503196371

$118.63

Flat Washer M5

234051410

$0.51

Elastic Stop Nut M5

232551414

$0.82

Crank Ass'y | Includes 9010 to 9010h

503197182

$128.33

Screw-Torx Button Head M5 X 14

235551454

$7.09

Flange Elastic Nut M5

233251434

$1.91

Socket Screw M5 X 16

205051644

$2.12

Flange Elastic Nut M5

233251434

$1.91

Circlip | RS STD

705601030

$4.00

Strap Stopper

503196372

$27.58

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

Washer | Not Shown

503193995

$4.25

Hex. Flange Elastic Nut M6

233261466

$1.91
