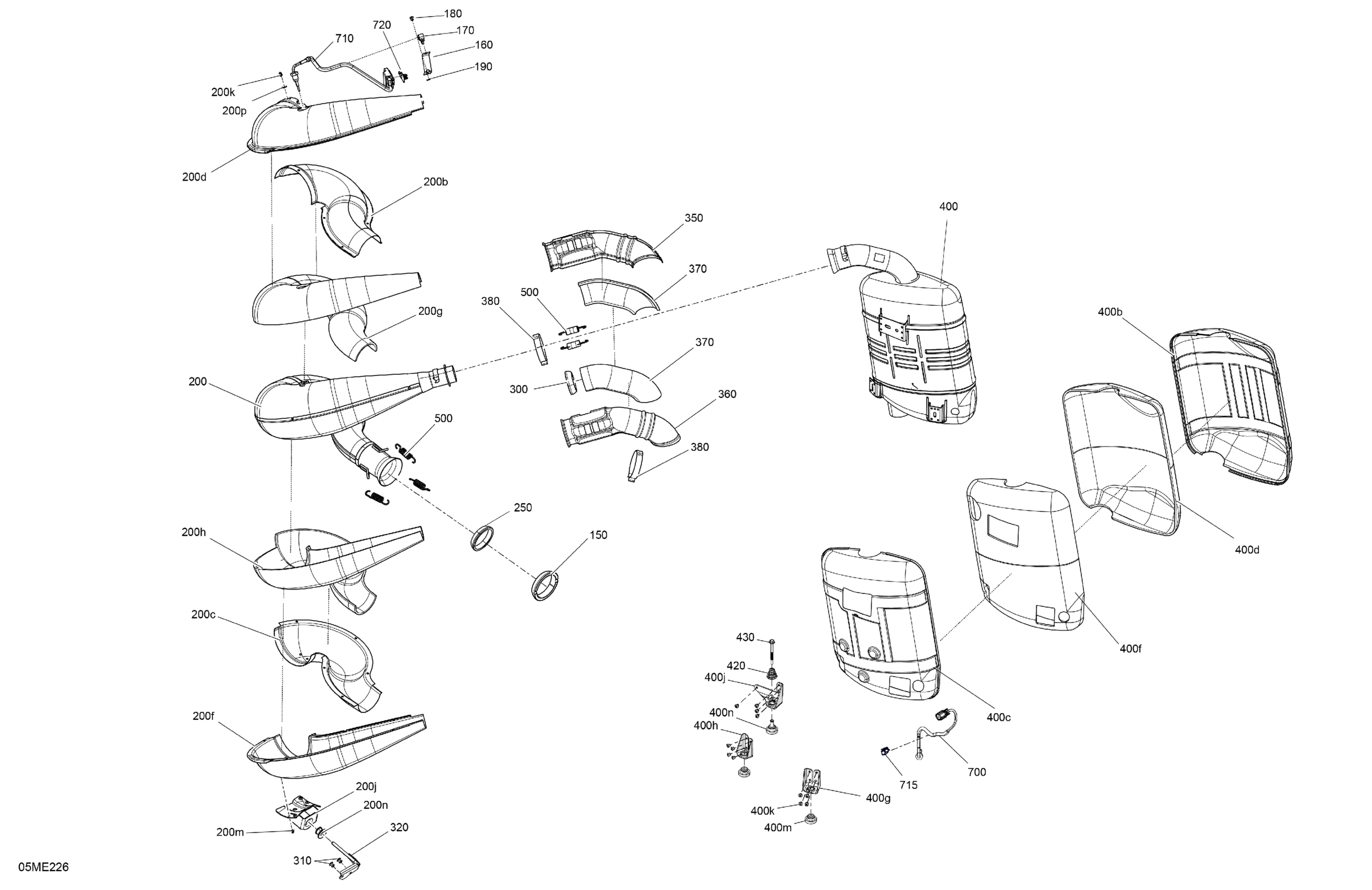

Ski-Doo SUMMIT - 850 E-TEC - Adrenaline with Edge Package - CGSM - Carbon Black - 154X16X2.5PLF Track - 2025 Engine - Exhaust Diagram

Description

Price

150

Exhaust Gasket

514053487

$26.49

160

Support

514055512

$3.17

170

Tie Rap Mount (screwable)

515176795

$5.39

180

Avex Rivet

390909100

$0.30

190

Washer 3/16

514055537

$1.01

200

Tuned Pipe Ass'y | Includes 200 to 200p

514056405

$858.49

200a11

Steel Wire S6 .9mm HI-DEP | Not Shown

75011200

Unavailable

200b

Front Upper Aluminum Shell

514055222

$39.99

200c

Shell

514056282

$36.99

200d

Rear Upper Shell

514056421

$82.99

200f

Rear Lower Aluminum Shell

514056141

$82.99

200g

Glass Wool

514056422

$20.99

200h

Glass Wool

514056352

$7.90

200j

Plate

514055844

$5.90

200k

Avex Rivet

390909200

$0.30

200m

Avex Rivet

390909200

$0.30

200n

Vibration Damper

514056375

$11.65

200p

Washer 3/16

514055537

$1.01

250

Seal

514055965

$19.49

300

Exhaust Gasket

514055294

$24.99

310

Ornit Rivet 6,5 X 14.5

293150266

$2.40

320

Support

514055214

$11.54

350

Front Shield

514055283

$40.99

360

Rear Shield

514055284

$40.99

370

Wool Glass Tail

514056381

$4.44

380

Clip

514056035

$16.18

400

Muffler Ass'y | Includes 400 to 400n

514056358

$741.49

400b

RH Deflector

514055980

$58.99

400c

LH Deflector

514056315

$63.99

400d

Glass Wool

514056353

$19.99

400f

Glass Wool

514056354

$8.39

400g

Exhaust Support

514056193

$6.40

400h

Exhaust Support

514056082

$6.40

400j

Exhaust Support

514056083

$6.40

400k

Pop Rivet 3/16 X ,425

293150293

$0.35

400m

Stopper

514055203

$20.49

400n

Stopper Ass'y

514056138

$13.22

400p

Steel Wire S6 .9mm HI-DEP | Not Shown

75011200

Unavailable

420

Spring

514055282

$6.35

430

Hex. Flange Screw M6

250000926

$1.01

500

Spring

514055198

$6.35

700

Exhaust Temperature Sensor

514056266

$137.99

710

Module

515178170

$174.99

715

Clip

710010204

$1.67

720

Module Support

514056265

$3.27
