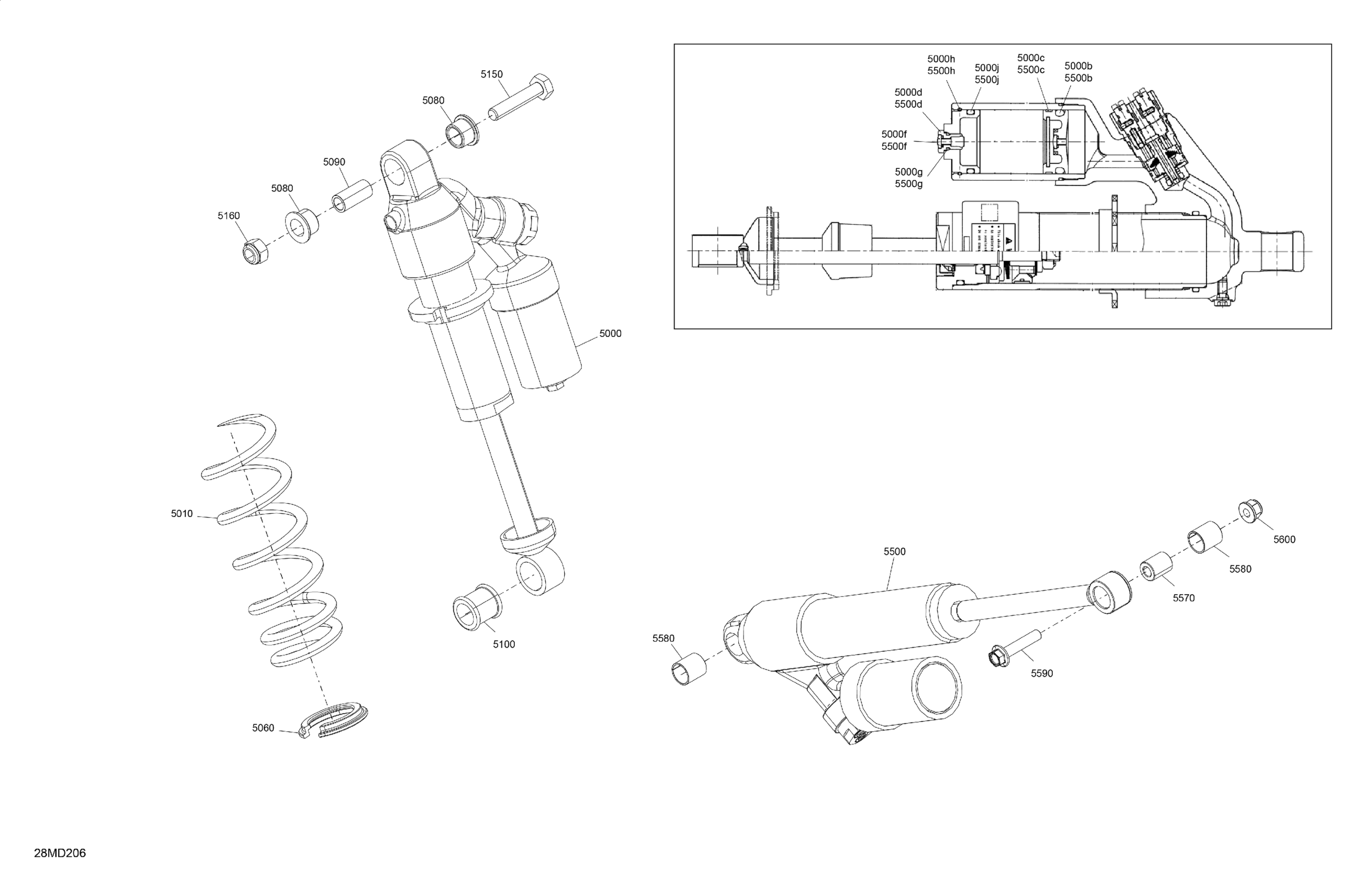

Ski-Doo North America - SUMMIT 850 E-TEC - 154 - HCRN - Black - 154X15X3P4 Track, 2024 05- Suspension - Rear Shocks Diagram

Description

Price

5000

Central Shock Absorber | Includes 5000 to 5000j

503197245

$877.49

5000b

O-Ring

415093807

$35.99

5000c

Piston Ring | Not Shown

415093806

$16.86

5000d

Air Valve

505070398

$20.99

5000f

Screw | Not Shown

505070399

$4.12

5000g

O-Ring

505070400

$4.54

5000h

Circlip - Call your local BRP dealership

715900076

$4.12

5000j

O-Ring

415093804

$4.54

5010

Black, Spring

503195913

$67.99

5060

Spring Stopper

503194270

$19.99

5080

Urethane Bushing

503189117

$8.19

5090

Bushing | Includes 240d to 240d1

503189282

$4.34

5100

Bushing

503189271

$13.99

5150

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

5160

Elastic Locking Nut M10

233601466

$2.11

5500

Rear Shock Absorber | Includes 5500 to 5500j

503197246

$877.49

5500b

O-Ring

415093807

$35.99

5500c

Piston Ring | Not Shown

415093806

$16.86

5500d

Air Valve

505070398

$20.99

5500f

Screw | Not Shown

505070399

$4.12

5500g

O-Ring

505070400

$4.54

5500h

Circlip - Call your local BRP dealership

715900076

$4.12

5500j

O-Ring

415093804

$4.54

5570

Axle Shock Absorber

503196509

$12.58

5580

Leg Cushion

505072663

$9.23

5590

Hex Flange Screw M8 X 40

207684056

$1.47

5600

Elastic Flange Nut M8

233281466

$1.01
