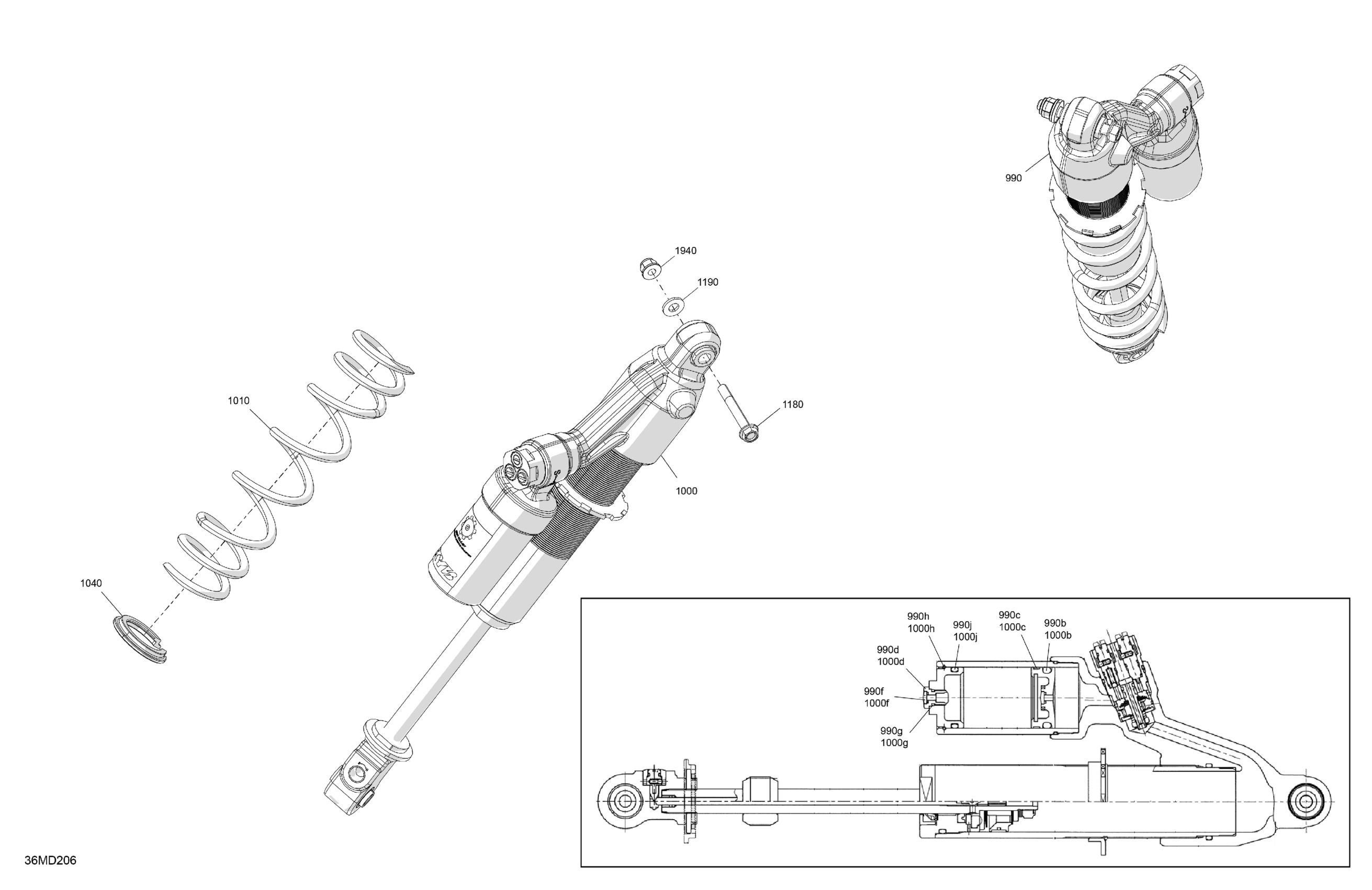

Ski-Doo North America - SUMMIT 850 E-TEC - 154 - HCRN - Black - 154X15X3P4 Track, 2024 05- Suspension - Front Shock Diagram

Description

Price

990

RH Front Shock Absorber KYB PRO 40-3C | Includes 990 to 990j

505075608

$877.49

990b

O-Ring

415093807

$35.99

990c

Piston Ring | Not Shown

415093806

$16.86

990d

Air Valve

505070398

$20.99

990f

Screw | Not Shown

505070399

$4.12

990g

O-Ring

505070400

$4.54

990h

Circlip - Call your local BRP dealership

715900076

$4.12

990j

O-Ring

415093804

$4.54

1000

LH Front Shock Absorber PRO 40-3C | Includes 1000 to 1000j

505075609

$812.99

1000b

O-Ring

415093807

$35.99

1000c

Piston Ring | Not Shown

415093806

$16.86

1000d

Air Valve

505070398

$20.99

1000f

Screw | Not Shown

505070399

$4.12

1000g

O-Ring

505070400

$4.54

1000h

Circlip - Call your local BRP dealership

715900076

$4.12

1000j

O-Ring

415093804

$4.54

1010

Deep Black, Spring

505072760

$52.99

1040

Spring Stopper

503194270

$19.99

1180

Hex. Flange Screw M8 X 58

250000824

$2.11

1190

Washer

503192494

$3.17

1940

Elastic Flange Nut M8

233281466

$1.01
