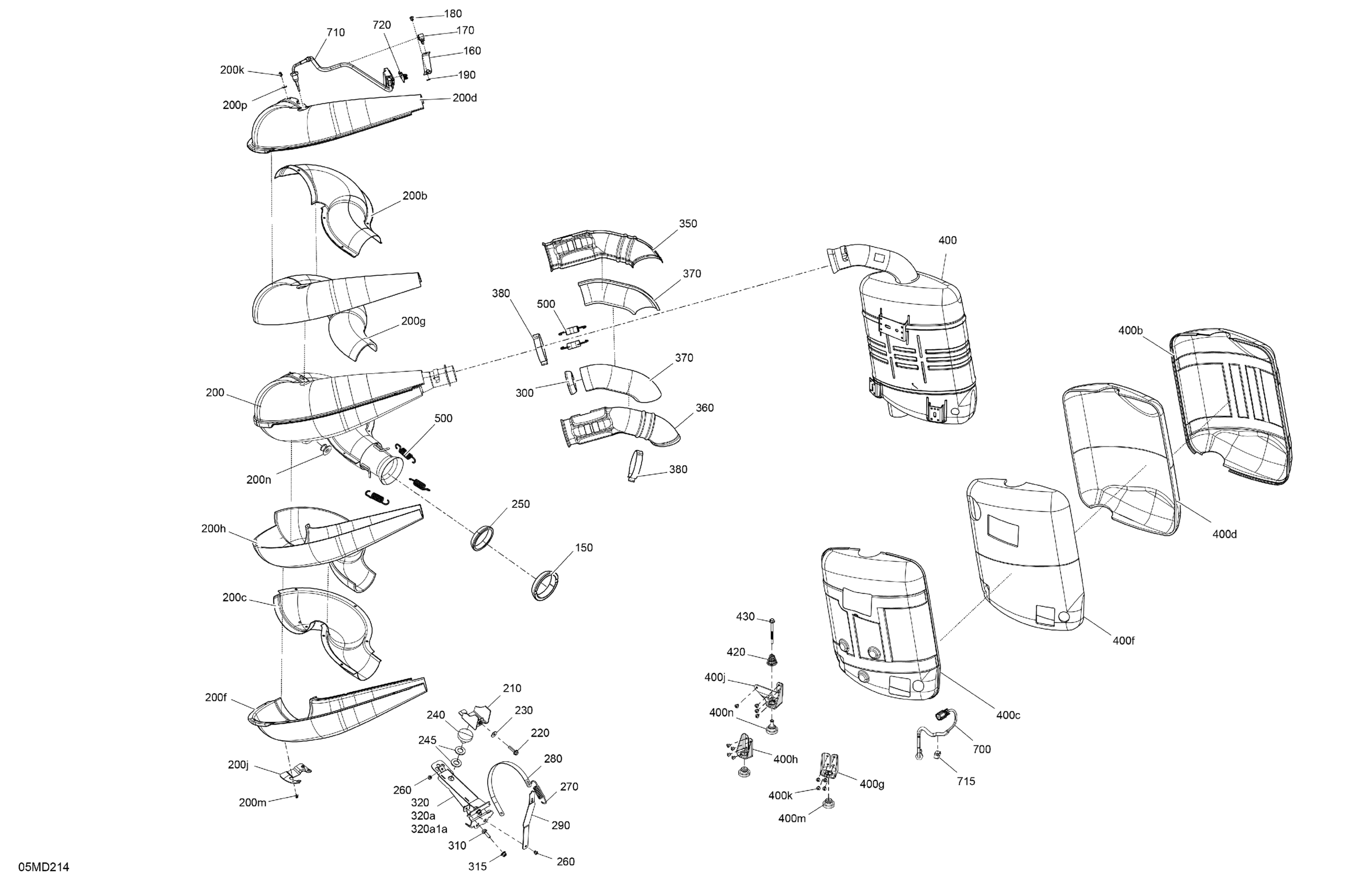

Ski-Doo North America - SUMMIT 850 E-TEC - 154 - HCRN - Black - 154X15X3P4 Track, 2024 02- Engine - Exhaust Diagram

Description

Price

150

Exhaust Gasket

514053487

$26.49

160

Support

514055512

$3.17

170

Tie Rap Mount (screwable)

515176795

$5.39

180

Avex Rivet

390909100

$0.30

190

Washer 3/16

514055537

$1.01

200

Tuned Pipe Ass'y | Includes 200 to 200p

514056405

$858.49

200b

Shell

514056281

$39.99

200c

Shell

514056282

$36.99

200d

Rear Upper Aluminum Shell

514055617

$82.99

200f

Rear Lower Aluminum Shell

514056141

$82.99

200g

Glass Wool

514056351

$20.99

200h

Glass Wool

514056352

$7.90

200j

Plate

514055844

$5.90

200k

Avex Rivet

390909200

$0.30

200m

Avex Rivet

390909200

$0.30

200n

Rubber

514055632

$2.21

200p

Washer 3/16

514055537

$1.01

210

Bracket

514056267

Unavailable

220

Hex. Flange Screw M6 X 25

207562544

$1.69

230

Flat Washer 6 mm

234062410

$0.77

240

Rubber Bumper

514053654

$50.99

245

Flat Washer 14 mm

234071410

$1.47

250

Seal

514055965

$19.49

260

Avex Rivet

390909200

$0.30

270

Spring

514055198

$6.35

280

Bracket

514056295

$3.72

290

Bracket

514056273

Unavailable

300

Exhaust Gasket

514055294

$24.99

310

Hex. Flange Screw M6 X 20

207662044

$2.00

315

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

320

Exhaust Support | Includes 320a to 320a1a

514056255

Unavailable

320a

Exhaust Support

514056256

Unavailable

320a1a

Clinching Nut Hexert M8 | Model-T3

250100065

Unavailable

350

Front Shield

514055283

$40.99

360

Rear Shield

514055284

$40.99

370

Wool

514056209

$15.99

380

Clip

514056035

$16.18

400

Muffler Ass'y | Includes 400 to 400n

514056358

$741.49

400b

RH Deflector

514055980

$58.99

400c

LH Deflector

514056315

$63.99

400d

Glass Wool

514056353

$19.99

400f

Glass Wool

514056354

$8.39

400g

Exhaust Support

514056193

$6.40

400h

Exhaust Support

514056082

$6.40

400j

Exhaust Support

514056083

$6.40

400k

Pop Rivet 3/16 X ,425

293150293

$0.35

400m

Stopper

514055203

$20.49

400n

Stopper Ass'y

514056138

$13.22

420

Spring

514055282

$6.35

430

Hex. Flange Screw M6

250000926

$1.01

500

Spring

514055198

$6.35

700

Exhaust Temperature Sensor

514056266

$137.99

710

Module

515178170

$174.99

715

Clip

710010204

$1.67

720

Module Support

514056265

$3.27
