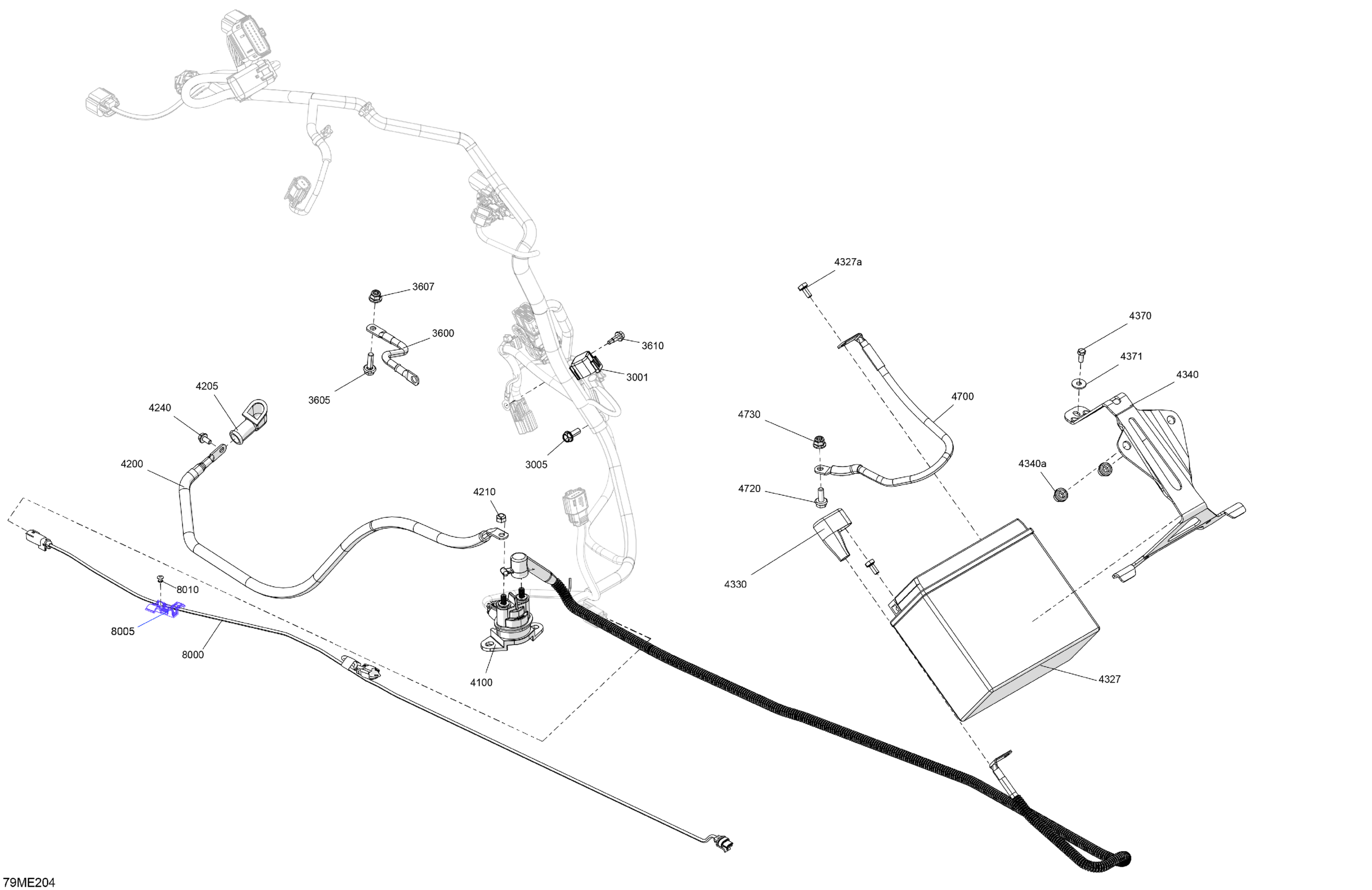

Ski-Doo SUMMIT - 600R E -TEC - Adrenaline - CESA - Catalyst Gray - 154X16X2.5PLF Track - 2025 Electric - Lower Section Diagram

Diagnostic Cap

515178435

$8.79

Hex. Flange Screw M6 X 16

250001062

$1.57

Ground Wire

515178248

$24.99

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M5 X 16

250000911

$0.85

Starter Relay

278003012

$42.49

Positive Cable

515178919

$29.99

Protector Cap

710000495

$10.99

Elastic Stop Nut M6

232561434

$1.99

Hex. Flange Screw M5 X 10

207551044

$4.12

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$164.99

Battery Bolt Kit

250000282

$7.29

Protector Cap | STD

710001817

$11.12

Battery Strip | Includes 4340 to 4340a

515177870

$19.99

Insert

293450275

$12.99

Hex. Screw M5 X 12

207151244

$0.90

Washer | DS 650 X

391301600

$0.48

Ground Wire

515178155

$26.99

Hex. Flange Screw M6 X 16

207661644

$0.74

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Taillight Wiring Harness | Includes 8000 to 8000a

515179659

$26.99

Wiring Harness Support

515179630

$11.01

Pop Rivet 3/16 X ,425

293150293

$0.35
