Partiron

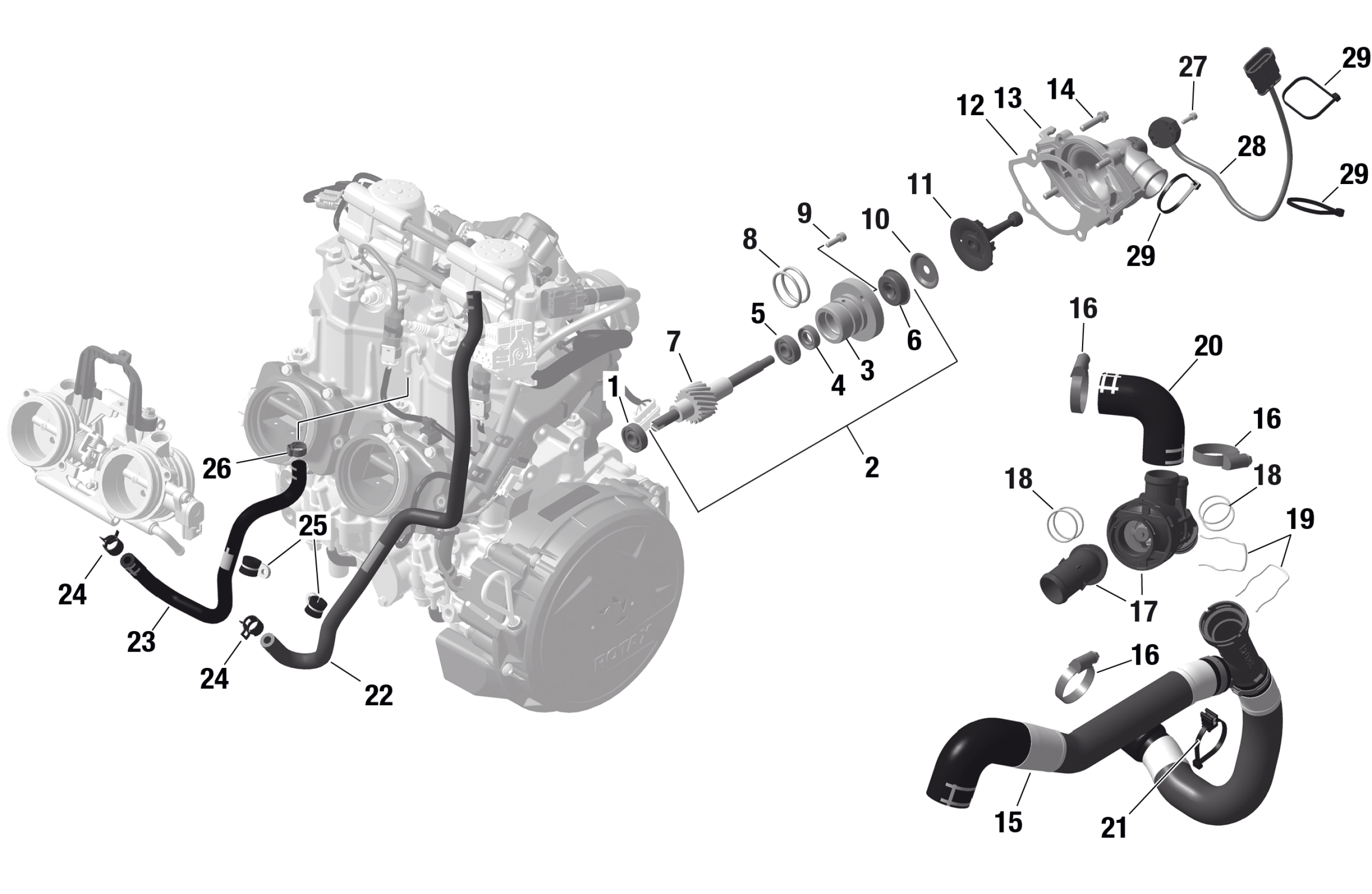

Ski-Doo SUMMIT 600R E-TEC - Adrenaline - CDRD - Deep Black - 146X16X2.5PF Track, 2024 ROTAX - Engine Cooling Diagram

#

Description
Price

1

Ball Bearing

420232100

$17.88

2

Water Pump Shaft | SHOT

420891478

$268.63

3

Step Collar

420847933

$36.54

4

Oil Seal

420230198

$14.90

5

Ball Bearing

420232100

$17.88

6

Rotary Seal

420650371

$41.01

7

Water Pump Shaft

420837680

Unavailable

8

O-Ring

420950890

$4.15

9

Allen Screw M5 x 16

420840514

$1.79

10

Cover Washer

420944035

$5.06

11

Impeller

420222509

$60.42

12

Gasket | Included in gasket kit

420931813

$13.04

13

Water Pump Housing

420933636

$58.18

14

Torx Flange Screw M6 X 25

420440234

$2.91

15

Molded Hose This part replaces 420822803.

420822805

$70.12

16

Clamp 26-38MM

420951120

$4.03

17

Thermostat Housing | Includes 17 to 18

420822836

$70.87

18

O-Ring

420430062

$2.00

19

Spring Clip

420939344

$2.00

20

Return Hose

420822820

$10.21

21

Tie Rap 200 X 4.6

420951652

$6.07

22

Molded Hose

420201518

$29.07

23

Molded Hose

420201512

$10.21

24

Clamp

420853511

$7.09

25

Clamp

420851250

$9.03

26

Clamp

420851458

$7.01

27

Allen Screw M4 X12

420440292

$0.96

28

Angle Sensor | SHOT

420864400

$137.28

29

Locking Tie 175 X 4 MM

420651817

$0.99
