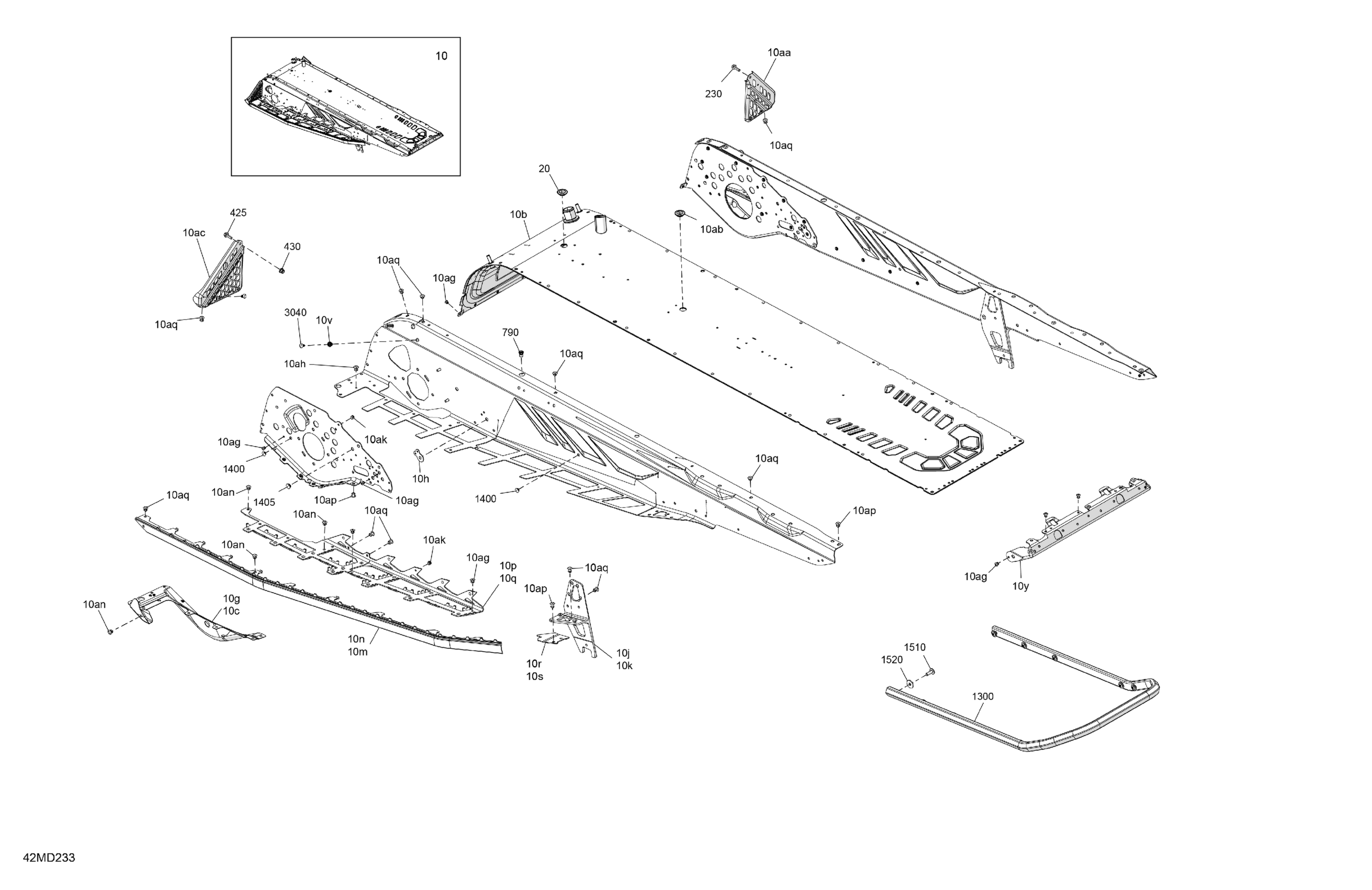

Ski-Doo SUMMIT 600R E-TEC - Adrenaline - CDRA - Catalyst Gray - 146X16X2.5PF Track, 2024 Frame - System - Rear Section Diagram

Description

Price

Deep Black, Chassis Tunnel Module 146 | Includes 10 to 10aq

415130815

$3,946.12

10c

RH Footrest Reinforcement

518332455

$81.51

10g

LH Footrest Reinforcement

518332456

$81.51

10h

Front Suspension Arm Reinforcement

518335959

$3.85

10j

LH Rear Suspension Support

518332875

$42.28

10k

RH Rear Suspension Support

518332876

$42.28

10m

Formed Boarding Step Rg

518332841

$184.58

10n

Formed Boarding Step

518332842

$184.58

10p

RH Tunnel Liner

518335261

$61.51

10q

LH Tunnel Liner

518335262

$60.74

10r

LH Rear Footrest Reinforcement

518333048

$18.43

10s

RH Rear Footrest Reinforcement

518333049

$18.43

10v

Threaded Insert M6 X 1.0

250100242

Unavailable

10y

Rear Cap

518328990

$20.74

10aa

RH Footrest

518332462

$42.28

10ab

Black, Plug

293730052

$6.37

10ac

LH Footrest

518332463

$42.28

10ag

Rivet Avibulb 3/16

293150203

$0.29

10ah

Avibulb Rivet 4.8 X 12.1

293150237

$0.29

10ak

Henrob Rivet

293150245

$1.65

10an

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10ap

Rivet Ornit 6,5 X 16.5

293150267

$1.94

10aq

Ornit Rivet 6,5 X 14.5

293150266

$1.94

10b

Radiator Tunnel 146

518335139

$692.28

Black, Plug

293730052

$6.37

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

790

Insert

293450278

$4.09

1300

Rear Bumper 146

518329553

$165.35

1400

Black, Dart 8 mm

293730047

$2.14

1405

Black, Dart 10 mm

293730060

$4.42

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11

3040

Dart

293730079

$1.92
