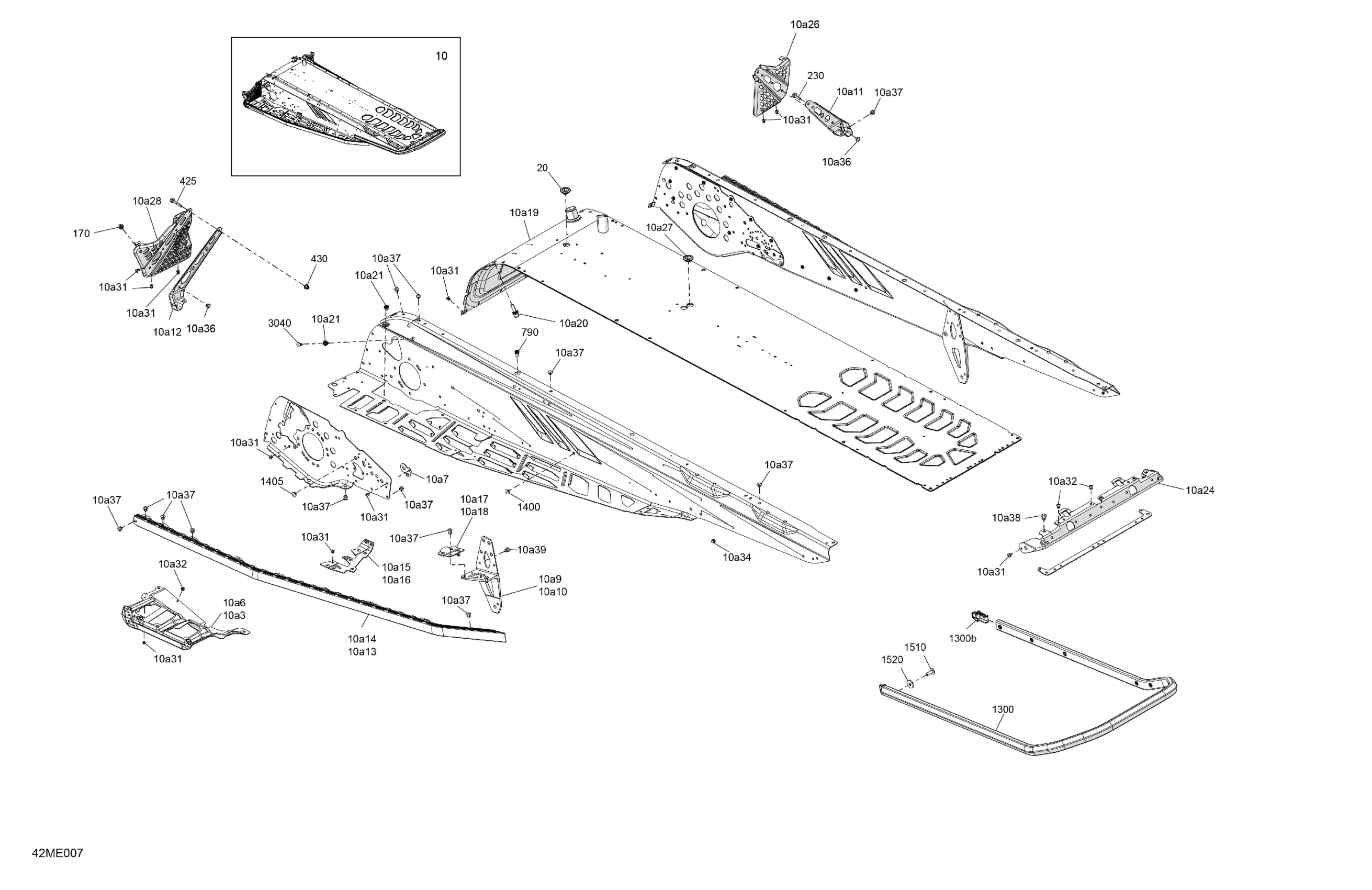

Ski-Doo North America - SUMMIT - 600 EFI - NEO - TWSB - Catalyst Gray - 146X14X1.6CF Track - 2025 06- Frame - System - Rear Section Diagram

Description

Price

Chassis Tunnel Module 146

415130825

$3.00

10a3

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10a6

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10a7

Front Suspension Arm Reinforcement

518335959

$4.19

10a9

LH Rear Suspension Support

518334406

$69.99

10a10

RH Rear Suspension Support

518334407

$69.99

10a11

Stirrup Reinforcement

518334507

$21.99

10a12

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10a13

RH Roller

518328451

$194.99

10a14

LH Roller

518328452

$194.99

10a15

LH Footrest Reinforcement

518332296

$21.99

10a16

RH Footrest Reinforcement

518332297

$21.99

10a17

LH Reinforcement Plate

518329088

$3.39

10a18

RH Reinforcement Plate

518329089

$4.59

10a19

Radiator Tunnel 146

518335127

$739.99

10a20

Protruding Stud M8 x 22

250300652

$4.44

10a21

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10a24

Rear Cap

518328990

$22.49

10a26

RH Footrest

518333006

$40.99

10a27

Black, Plug

293730052

$9.19

10a28

LH Footrest

518333858

$40.99

10a31

Rivet Avibulb 3/16

293150203

$2.09

10a32

Avibulb Rivet 4.8 X 12.1

293150237

$2.09

10a34

Henrob Rivet

293150245

$1.69

10a36

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10a37

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10a38

Rivet Ornit 6,5 X 16.5

293150267

$2.40

10a39

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Black, Plug

293730052

$9.19

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

790

Insert

293450278

$4.49

1300

Rear Bumper 146 | Includes 1300 to 1300b

518334306

$148.49

1300b

Cap

520001612

$10.99

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

3040

Dart

293730079

$2.09
