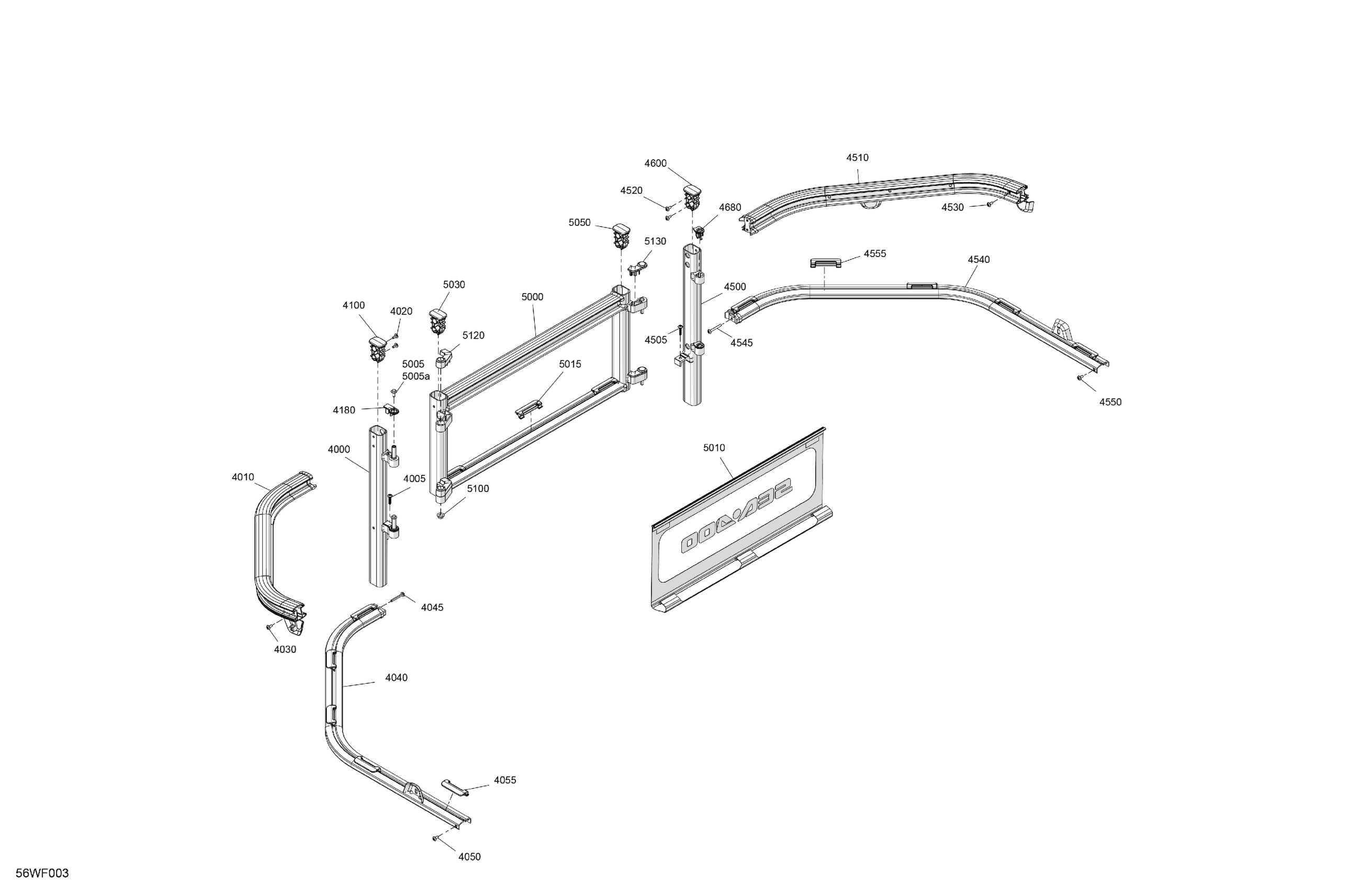

Sea-doo SPORT Compact - 170 - 47TA - Neo Mint - Trailer paint - CAT-NA - 2026 GUARD RAILS - Front Diagram

Description

Price

4000

LH Front Profiled Tube

281300714

Unavailable

4005

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

4010

LH Front Hand Rail

281300350

Unavailable

4020

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4030

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4040

LH Lower Profile Tube

281300349

Unavailable

4045

Cone Torx Truss Screw HD.M6 X 51

250001185

$3.66

4050

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4055

Balustrade Anchor

281300811

Unavailable

4100

Oblong Plug

281300278

Unavailable

4180

LH Lower Cap

281300311

Unavailable

4500

RLH Front Profiled Tube

281300715

Unavailable

4505

Plastite Torx Screw M6.81X30 | Not Shown

250000879

$2.00

4510

RH Front Hand Rail

281300355

Unavailable

4520

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4530

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4540

Rear Lower Profiled Tube

281300356

Unavailable

4545

Cone Torx Truss Screw HD.M6 X 51

250001185

$3.66

4550

Cone Torx Truss Screw HD.M6 X 15

250001147

$3.45

4555

Balustrade Anchor

281300811

Unavailable

4600

Oblong Plug

281300278

Unavailable

4680

RH Lower Cap

281300312

Unavailable

5000

Front Door Service Kit

295101538

Unavailable

5005

Hex Screw M6 X 20

250000965

$2.00

5005a

Not Available As Spare Parts

XXX

Unavailable

5010

Front Balustrade Ass'y

281300844

Unavailable

5015

Balustrade Anchor

281300811

Unavailable

5030

Oblong Plug

281300278

Unavailable

5050

Oblong Plug

281300278

Unavailable

5100

Venturi Bushing

293900007

$4.25

5120

LH Upper Cap

281300309

Unavailable

5130

RH Upper Cap

281300310

Unavailable
