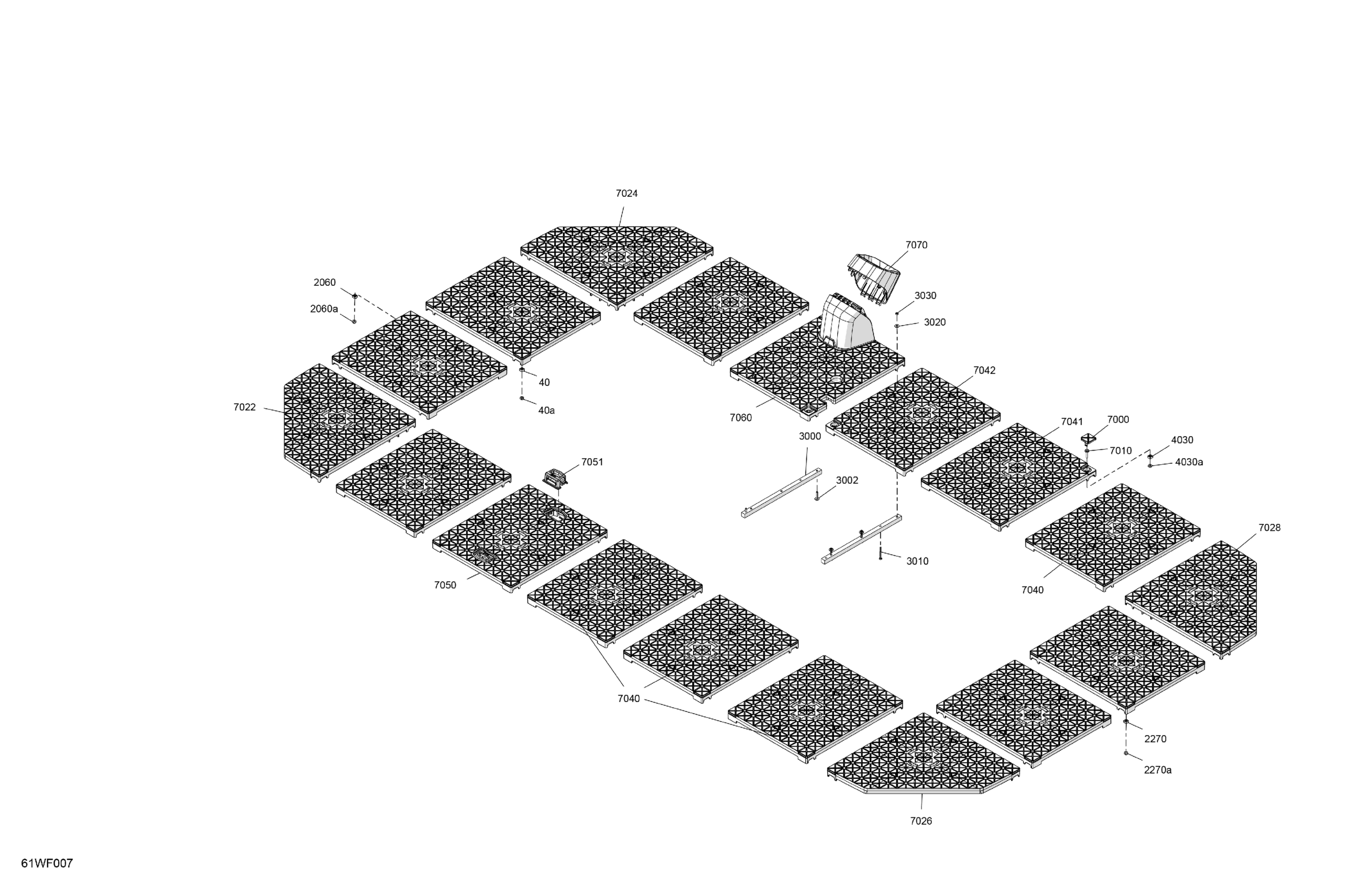

Sea-doo SPORT Compact - 170 - 47TA - Neo Mint - Trailer paint - CAT-NA - 2026 FLOOR - System Assembly Diagram

Description

Price

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

40a

Elastic Stop Nut M6, Brass

232561200

$4.23

2060

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2060a

Elastic Stop Nut M6, Brass

232561200

$4.23

2270

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

2270a

Elastic Stop Nut M6, Brass

232561200

$4.23

4030

Nut Housing M6 | Includes 555 to 555b

269502544

$6.53

4030a

Elastic Stop Nut M6, Brass

232561200

$4.23

7000

Tile Cap

291004897

$3.89

7010

Hex Screw SEMS M6X35, SS

250000969

$2.11

7022

Interlocking Triangle Tile

291004853

$149.99

7024

Interlocking Triangle Tile

291004853

$149.99

7026

Interlocking Triangle Tile

291004853

$149.99

7028

Interlocking Triangle Tile

291004853

$149.99

7040

Interlocking Rectangle Tile

291004858

$159.99

7041

Interlocking Driver Tile

291006181

$144.99

7042

Interlocking Console Tile

291006182

$144.99

7050

Interlocking Tile Linq

291005480

$154.99

7051

Monument Gray, Cargo Base

291005951

$18.49

7060

Interlocking Neck Tile

291006232

$144.99

7070

Neck Support

291006193

$13.49

3000

Chassis Reinforcement

281000134

$33.99

3002

Hexagonal Cap Screw M6 X35

250000399

$4.44

3010

Hex. Screw M6 x 55

207065560

$1.01

3020

Flat Washer M6, Stainless

234062600

$0.77

3030

Elastic Stop Nut M6, Brass

232561200

$4.23
